Shenzhen Piesia Electronic Technology Co., Ltd. >> Embedded Fanless Box PC & Industrial Computer (QBOX-D2550-02)

Embedded Fanless Box PC & Industrial Computer (QBOX-D2550-02)

Name: Embedded Fanless Box PC & Industrial Computer (QBOX-D2550-02)
Brand: China-Manufacturer-Directory.com
SKU: 690701482
Availability: InStock
Rating: 4.3 (85 reviews)

Supplier:	Shenzhen Piesia Electronic Technology Co., Ltd.
Price:	US $ 245-299dollars
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	QBOX-D2550-02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bois:	Ami EMI 16MB SMT/DIP-Spi Flash ROM
Name:	Computer
Operate System:	Windows 7, XP, Win CE/XPE
RAM:	Onboard DDR3 2GB
Storage:	Msata
COM:	6*COM
Network Card:	2* Gigabit Ethernet RJ45 Port
Power Supply:	12V-DC & ATX-4pin
Hard Drive Interface:	Msata SSD
Application:	Wall-Mounted/Desktop/Vehicle-Mounted/Industrial Co
Webcam:	Without Webcam
Memory:	4GB
Built-in Microphone:	Built-in Microphone
Network Mode:	3G
Built-in Bluetooth:	Without Bluetooth
CPU Core:	Dual-Core
Card Reader:	Without Card Reader
Fingerprint:	Without Fingerprint
Hard Disk Capacity:	≥128G
Screen Type:	Without Screen
Operating System:	Windows XP/7 etc.
Screen Size:	Without Screen
CPU Type:	Intel Atom
Front Camera Pixel:	Without
Battery Capacity:	Without
Rear Camera Pixel:	Without

Product Description

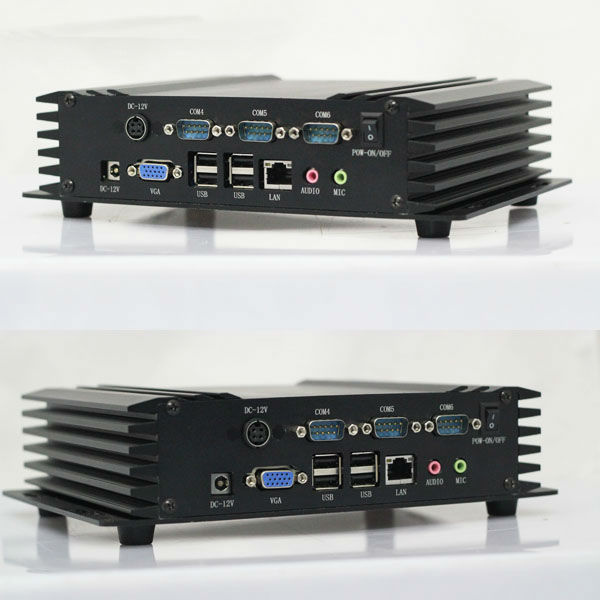

Embedded Fanless Box PC & Industrial Computer

Advantage:
1. All aluminium shell, good at heat dissipation
2. Compact embedded system design; Fanless, completely mute.
3. Sealed design, dust-proof; Shock-proof, very steady.
4. Support Gigabit Ethernet and WiFi.
5. Front&Rear panel provide comprehensive I/O functions, suitable for the diversified embedded application.

Mainboard	Form Factor	Mini ITX 3.5inch (115mm×155mm)
	CPU	Intel® Atom D2700 2.13 G Hz Both-Threaded
	Chipset	Intel® AtomD2700 processor + NM10 chipset
	Memory	Onboard DDR3 2GB
	Storage	mSATA SSD 8/16/32/64GB
	COM	6*COM port
	USB	4*USB 2.0/1.1 port
	VGA	1VGA interface 1HDMI
	Network	2*1000M Ethernet RJ45 LAN port(WIFI optional)
	Audio	1*Audio(line in/line out/Mic)
	GPIO	8 group(4-in/4-out)
	Watchdog	256
	Other Function	Support power booting/plug and play.
Cooling System	Fanless;aluminium shell heat conduction
Power Supply	12V-DC 3A;ATX 4-PIN
Operating Environment		Working	Storage
	Temperature	-20°C~70°C (-4°F~158°F)	-20°C~80°C (-4°F~176° )
	Humidity	10%~90% (non-condensing)	10%~90% (non-condensing)
	Impact	3G@11MS	30G@11MS
	Shake	0.4GRMS(10-500HZ)	1.12GRMS(10-500HZ)
Structure	Material	All aluminium shell
	Color	Black/Silver (optional)
	Size	230 mm ( L )X55 mm ( H )X160 mm ( W )
	Weight	2.50KG
Application Area	wall-mounted/desktop/vehicle-mounted/industrial control
