Product Specifications
| Prod Model: |
PIE-D525-L -001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chipset Manufacturer: |
Intel |
| Form Factor: |
3.5inch |
| CPU: |
Intel® Atom D525/N550/N455 Processors Optional |
| Chipset: |
Intel® Atom D525 Processor + Ich8 Chipset |
| RAM: |
1*Onboard 1333 DDR3 2GB Memory and 1*So-DIMM Socke |
| USB: |
1*Mini SATA Socket;1*Mini-Pcie Socket for WiFi/3G |
| Sound: |
Onboard HD Alc662 Chipset, (Mic-in/Line-out). |
| Network: |
1*Realtek Rtl8111EL PCI-E Gigabit Ethernet LAN |
| Lvds: |
Support Single Channel18bit Lvds Connector |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Memory: |
DDR3 |
| CPU Socket: |
LGA 1366 |
| Structure: |
3.5inch Motherboard |
Product Description

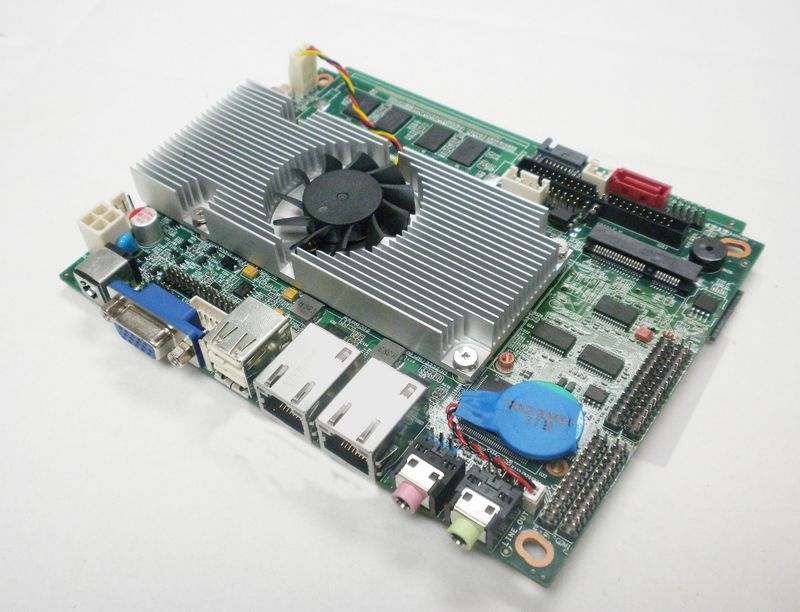

Motherboard D525 LGA Socket Intel CPU, Ich8 Chipset Computer Parts
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Main features
Specifications
>mini itx motherboard LGA1155
>DC power supply
>extra-slim compact design
>support I3, I5, I7 processor
Advantage:
1. Embedded high performance industrial motherboard.
2. DDR3 1066/1333/800MHz memory, SO-DIMM socket maximum up to 16GB.
3. Support LGA 1155 interface Intel Sandy/IVY Bridge series processor
4. Onboard 8*USB2.0 high-speed interface,
5. Onboard VGA. DVI. HDMI display interface, support double screen double power consumption
6. Reliable, High stability, Low noise, low power consumption. Perfectly
7. Certificate: CE, FCC, RoHS
The Applications / suitable for:
1. All-in-one PC, home entertainment systems, factory automation, information release system.
2. Building automation, intelligent transportation system, monitoring system and so on to automotive electronics.
3. Digital electronics/advertising billboards (DSA), health care use computer game/game machines.
4. Professional, medical, textile machinery, electric power, transportation line POS cash register;
5. On-board memory, high stability, is all kinds of numerical control, automotive, medical, aerospace equipment.
6. Industrial automation control, instrumentation, medical equipment, electric power systems.
7. Telecommunication, railway transportation, aerospace, military defense of choice.
The packing and delivery:
>packing details: Carton box (Accessory: 1 *COM cable: 1*CD driver 1*SATA cable 1*SATA power cable)
>delivery details:
Within 3 days (sample order) 7-25 days in a bulk
Delivery ways:
Small quantity by air highly demand by sea
Hope to build good cooperation with your business! Pls give us an opportunity to be service for you!
Is there a middle man draining your profit. Get rid of them!
Just give me your idea, we together make it Ideal! !
| Suitable for | Firewall;AD Player;AIO ; Thin Client; HTPC;VOD; IPC; POS etc. |
| Form Factor | 3.5 Inch 115mm×155mm |
| Chipset Manufacturer | Intel |
| CPU | Intel® Atom D525/N550/N455 processors optional |
| FSB | 800MHz |
| Chipset | Intel® Atom D525 processor + ICH8 chipset |
| L2 Cache | 1MB, CPU integrated |
| BIOS | Award 8MB DIP Flash ROM |
| RAM | 1*onboard 1333 DDR3 2GB memory (SO-DIMM socket.maximum 4GB optional) |
| Sound | Realtek HD ALC662 chipset,provide 6 channels output,onboard power amplifier. |
| Network | Realtek RTL8111EL PCI-E Gigabit Ethernet LAN,support RTL/PXE diskless booting |
| LVDS | Onboard 18bit single channel LVDS connector |
| USB | 6*USB 2.0/1.1 |
| Storage | 2*SATA;1*mSATA |
| Expansion Sockets | 1*Mini SATA socket; 1*Mini-PCIE socket;1*SIM card slot for 3G |
Rear panel I/O | 1*12V -DC power supply |
| | 1*VGA port |
| | 2*USB 2.0/1.1 port |
| | 2*1000M RJ45 port |
| | 2*Audio I/O interfaces( Line in,Line out,Mic) |
Internal I/O | 1*30pin LVDS |
| | 6*COM expansion headers (support RS232/488/485) |
| | 1*GPIO expansion header(8 bit) |
| | 1*VGA expamsion header |
| | 1*LPT expansion header |
| | 1*SPDIF pin header |
| Power Interface | 12V-DC/ATX 4PIN |
| Power Consumption | 15W |
| Working Temperature | -20°C~70°C (-4°F~158°F) |
| Storage Temperature | -20°C~80°C (-4°F~176° ) |
| Operating Humidity | 10%~90% (non-condensing) |
