Fast-Maintenance Outdoor P10 Full Color LED Display (DIP346)
Product Specifications
| Prod Model: |
P10-DIP346-320x320MM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
DIP346 |
| Module Size: |
320X320mm |
| Module Resolution: |
32X32dots |
| Brightness: |
>8500nits |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Application: |
Advertising, Stage Performance, Rental |
Product Description

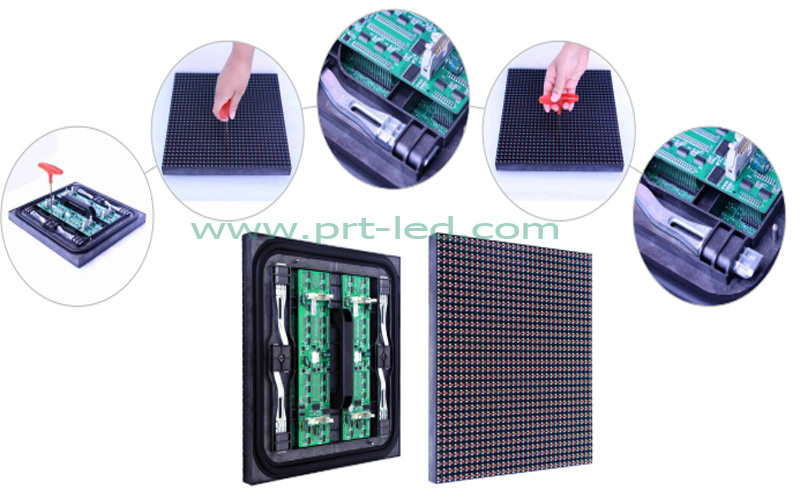

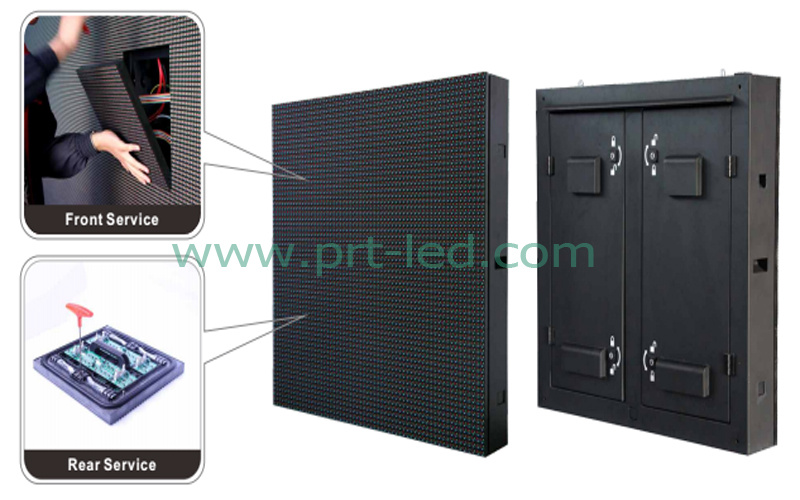

Fast-maintenance Outdoor P10 Full Color LED Display, can be maintained from both front and back side according to different condition,very convenient and easily , save much labor cost Product Features:1.High quality led chips ensure high brightness up to 8500nits
2.Good waterproof IP65, with back doors
3.Long view distance, High definition, Good uniformity,can be seen from long away even under sunshine
4. With aviation plugs for cables connection, easy and conveninet to combine the cabinets
5. Low power consumption, energy-saving, long life span>100,000Hours
6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the contents what you want, connect with PC computer or network, also can remoto control with asynchronous system.

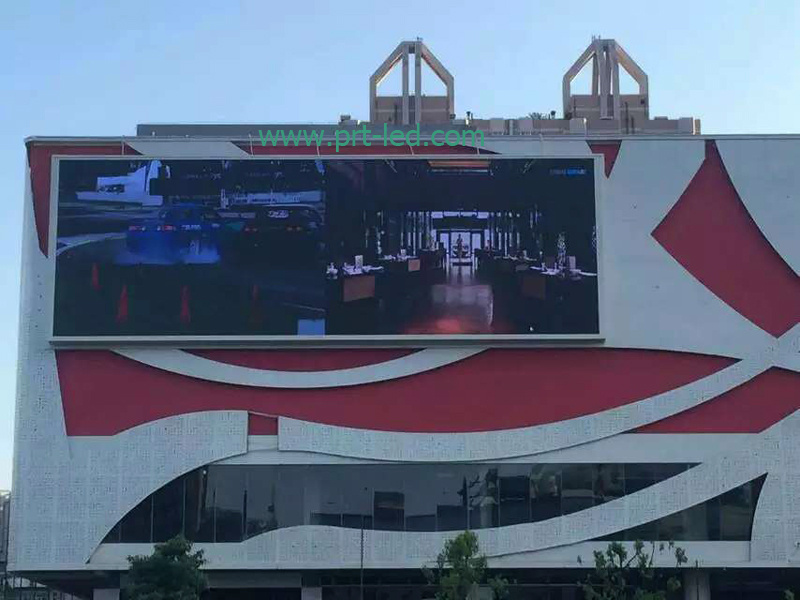

7. Widely used for commercial advertising, stage background, mobile led display. Traffic led display, sports led display etc.for permanent install or rental use
| P10 Outdoor full Color LED Screen Specification |
| Pixel pitch | 10mm |
| Pixel Configuration | 1R1G1B |
| LED component | DIP346(Epistar) |
| Size of module | 320mm x 320mm |
| Resolution of module | 32x32 |
| Size of cabinet | 960mmx 960mm x150mm |
| Resolution of cabinet | 96x96dots |
| Material of Cabinet | Iron with back doors |
| Weight of Cabinet | <60KGS |
| Brightness | >8500cd/m2 |
| Density | 10000dots/m2 |
| Best viewing angle | 110 /50 |
| Best viewing distance | 10-150M |
| Maximum power consumption | <900W/m2 |
| Average power consumption | <300W/m2 |
| Driving method | 1/4 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256 x 256 x 256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1800Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
