Product Specifications
| Prod Model: |
VR48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Power: |
Small Power |
| Control: |
Automatic |
| Certification: |
SGS, CE, ISO 9001 |
| Laser Type: |
YAG |
| Current: |
AC |
| Condition: |
New |
| Usage: |
Advertising, Woodworking, Acrylic, Copper, Alumin |
Product Description

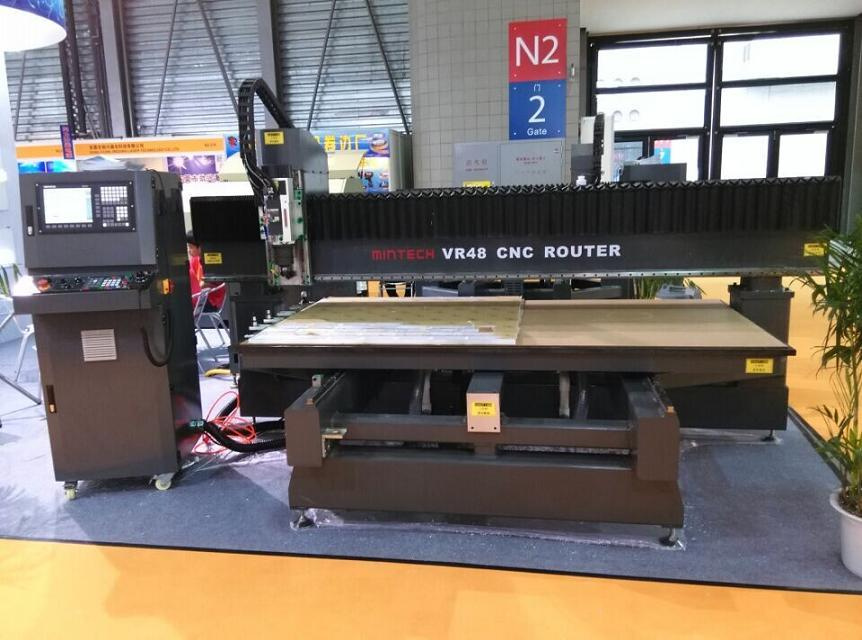

Mintech VR48 Gantry machining center is the table moving type structure of VR series CNC router machine, Gantry is fixed, the optimized gantry frame beam and the mesa with precision, formed the framework of good rigidity and reliability of the whole structure, calculation of strength and rigidity to ensure optimal design of finite element. VR series gantry machining center, according to the cutting properties of acrylic, aluminum, copper, sheet metD light guide plate, LED luminous characters, acrylic products, insulation materials, aluminum profile, copper, such as sheet metal manufacturing industry;
VR series standard features:
1. WEIHONG user friendly operating system.
2. Imported high precision ball screw, sliding coefficient of transmission is low, the friction force is small, stable running fast.
3.25000-30000mm/ minutes idle fast movement
4. Automatic tool calibration system.
5. USB and network file transfer function
6. Table moving
7. Power requirements: 3PH380V/50HZ; Al and other materials, design and technology demand to match themachine structure perfect and drive mode, so that the precision positioning in the advertisement, exhibition and so on.
VR series equipment Parameters.
1. Machine model: Mintech VR-48 CNC router
2. Working area: 1220*2440mm;
3. The Z axis beam to the distance table: 185mm;
4. Z axis travel: 300mm;
5. Repeat positioning: +/-0.03mm;
6. Cutting speed: 25000mm/min;
7. Idle moving speed: 30000mm/min; 8. Drive system: X, Y, Z adopts brushless servo drive, high precision ball screw rod;
9. The clamping way: Vacuum adsorption partition table;
| No. | Content |
| VR-48 | Remark |
| 1 | Wire Rod | Ball screw |
| Imported |
|
| 2 | Drive Motor | The X axis drive motor |
| 0.85KW | Yaskawa Japan or Germany Siemens |
| The Y axis drive motor |
| 1.3KW |
| The Z axis drive motor |
| 0.85KW |
| 3 | CNC
System | Independent electrical control box and a handwheel |
| WEIHONG or SIEMENS | Selection type |
| 4 | Working Area | Working area (mm) |
| 1220*2440 |
|
| Working area |
| Grid vacuum adsorption |
|
| 5 | Line Slot | Imported high quality wire groove |
| KSS | Taiwan |
| 6 | Cable | Flexible cable |
| IGUS | Germany |
Dongguan Mintech Electronic Co., Ltd. Was founded in 2001 June, the independent brand MINTECH, is a professional engaged in R & D and large CNC router machining center, the high precision CNC engraving machine, acrylic diamond polishing machine, laser cutting machine, and other automated production equipment manufacturing, sales, technical support for the integration of high-tech enterprises. Over the years, manufacturing production and processing equipment is committed to advertising signs, exhibition display, LED light guide plate, LED luminous characters, acrylic products industry. We have a professional R & D team, and constantly develop manufacturing to meet the production needs of customers of the production equipment, continuous technical improvement of products to provide the highest cost-effective production equipment for the user; Perfect after sale service system, to provide high quality and timely technical service support to the customers; Advanced manufacturing and quality guarantee system, ensure product delivery the period and quality; After years of efforts, the brand MINTECH products are sold all over the world, has been recognized by our customers.
