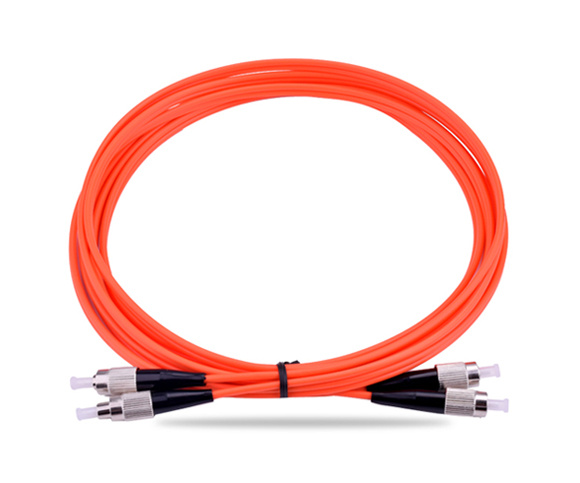

FC-FC Multimode Duplex Core Fiber Optic Jumper 3 Meters/ Fiber Optic Cable/ Telecommunication Level

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Core:	Ceramic(Japan)
Jacket Material:	PVC
Cable Diameter Size:	900um,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Mode:	Multi Mode Duplex Core
Connector:	FC-FC
Length:	3m or Customized
Weight:	34G
Wiring Devices:	ODF
Condition:	New
Type:	Fiber Jumper Cable

Product Description



Connector	Return Loss (dB)	Insertion Loss (dB)	Repeatability (dB)	Durability	Operating Tem	Tensile Strength(N)
PC	≥45	≤0.2(TYP) ≤0.3(MAX)	≤0.2	≥1000	-40°~+85°C	≥90(φ3) ≥70(φ2)
UPC	≥50
APC	≥60

Application:
Optical Fiber Communication System, Fiber Access Network, Optical Fiber Data Transsmission, Optical Fiber CATV, LAN, Test Equipment

High Efficiency, Stable Property
Low Insersion Loss, High Return Loss, Good Repeatability, Good Interchangeability, Good Wearability, Good Temperature Stability

Standardization and Large-Scale Production:
High productivity and standardized management system must ensure fulfillment of quality and efficiency standard requirements.
