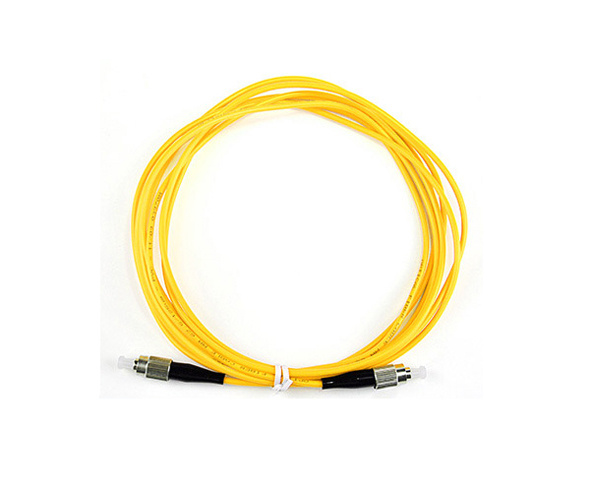

FC-FC Single Mode Single Core Fiber Jumper 3 Meters FC Pigtail Optical Fiber/ Fiber Optic Cable/ Telecommunication Level

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Core:	Ceramic(Japan)
Jacket Material:	PVC
Cable Diameter Size:	900um,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Connector:	FC-FC
Length:	3m or Customized
Weight:	30g
Mode:	Single Mode Single Core
Wiring Devices:	ODF
Condition:	New
Type:	Fiber Jumper Cable

Product Description



Connector	Return Loss (dB)	Insertion Loss (dB)	Repeatability (dB)	Durability	Operating Tem	Tensile Strength(N)
PC	≥45	≤0.2(TYP) ≤0.3(MAX)	≤0.2	≥1000	-40°~+85°C	≥90(φ3) ≥70(φ2)
UPC	≥50
APC	≥60

Application
Optical Fiber Communication System
Fiber Access Network
Optical Fiber Data Transsmission
Optical Fiber CATV
LAN
Test Equipment

High Efficiency, Stable Property
Low Insersion Loss
High Return Loss
Good Repeatability
Good Interchangeability
Good Wearability
Good Temperature Stability

Standardization and Large-Scale Production
High productivity and standardized management system must ensure fulfillment of quality and efficiency standard requirements.

Excellent Optical Performance and Mechanical Stability
Make sure excellent optical performance and high mechanical stability, use Zirconia ferrule with high temperature, and acid & alkali resistance.

High Quality Ceramic Ferrule
Use A-Level ceramic ferrule of smaller error, providing additional insertion loss and return loss to avoid the transmission performance reduction and damage of optical transceiver devices.
