Product Specifications
| Prod Model: |
VSAFC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mode: |
Single-Mode or Multimode |
| Fiber Adaptor Type: |
Simplex or Duplex or Other |
| Connector Type: |
Sc, LC, FC, St, or Others |
| Polish Type: |
APC, Upc, PC |
| Application: |
Communication |
| Type: |
Single-Mode or Multi-Mode |
| Connection Structure: |
Sc/APC Sc/Upc LC/APC LC/Upc FC/APC FC/Upc St/Upc S |
| Certification: |
Telcordia Gr-326-Core, Ice Standard |
Product Description

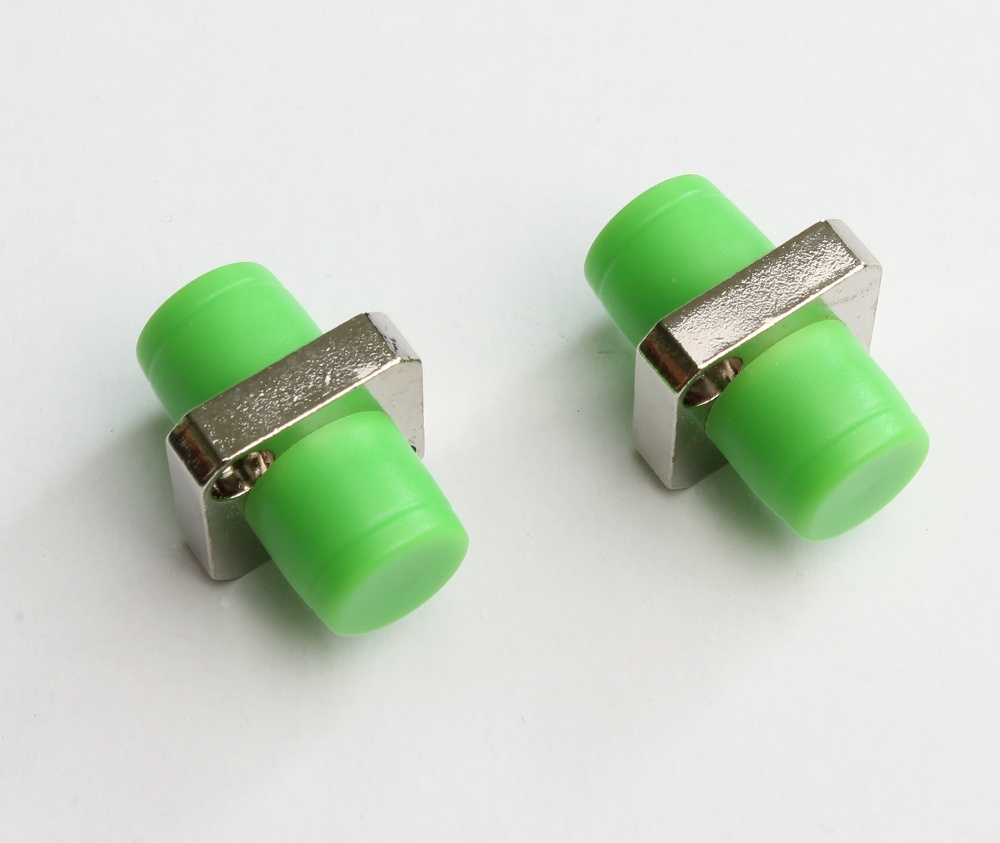

Optic FC Fiber Optical Adapter
1. Product Introduction
Choose type in accordance with connecting head of optical fiber movable connector. According to the structural form of connecting head, it can be divided into FC, SC, ST, LC, E2000 etc various types. The excellent strength and stability (200~600 gf insertion and extraction force) can be got by good sintered technology.
Because of the high quality and best price, many of our products are already sold in Russia, Germany, France, Spain, Italy, The USA, Canada, Brazil and so on.
2. Application
*Optical fiber transmission system
*CATV Network
*Optical fiber access network
*LAN
*Optical fiber test instruments
*Fiber Distribution Frame, Fiber optic wall-mount & rack-mount cabinets
3. Features
*Excellent changeability and directivity
*100% optic test (insertion loss)
*Ceramic and phosphor bronze sleeve tube optional
*Accurate external size
*High reliability
*Individual package available
4. Specification
The details are in the forms below
5. Order information
SC/FC/LC or others-----Model-----Single-mode/Multi-mode or others----Polish Type
6. Other information
Package: 25PCS/plastic box or as your requirements
Dear friend, thank you very much for your kind pay attention to our Optic FC Fiber Optical Adapter, if you want to know more about it, please contact with us at any time, and we will give you a quick reply and try our best to do all the thing well.
I hope we can make a very good and long business relationship with each other.
Tel: 0086 574 63505128;
|
Polish Type |
Insertion Loss(dB) |
Mating Durability(dB) |
Temperature Stability(dB) |
Operating Temperature(degree Celsius) |
Storage Temperature(degree Celsius) |
Withdrawal Force(g/f) |
|
PC/APC |
≤ 0.20
|
≤ 0.20 |
≤ 0.30 |
-40~+85degree Celsius |
-40~+85 |
200-600 |
|
Exchangeability(Db) |
Repeatability(dB) |
sleeves material |
anti-flaming |
heat distortion temperature(degree Celsius) |
pull in& out times |
|
≤ 0.20 |
≤ 0.10 |
Ceramics
or bronze |
UL94-V0 |
120 |
≥ 500 |
