Product Specifications
| Prod Model: |
CIC-FCS/30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Color: |
Orange |
| Boot Color: |
Black |
| Metal Material: |
Zinc Alloy |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
FC |
| Certification: |
ISO9001 |
| Brand: |
Yangtze |
| Sheath Material: |
Lszh / PVC |
Product Description

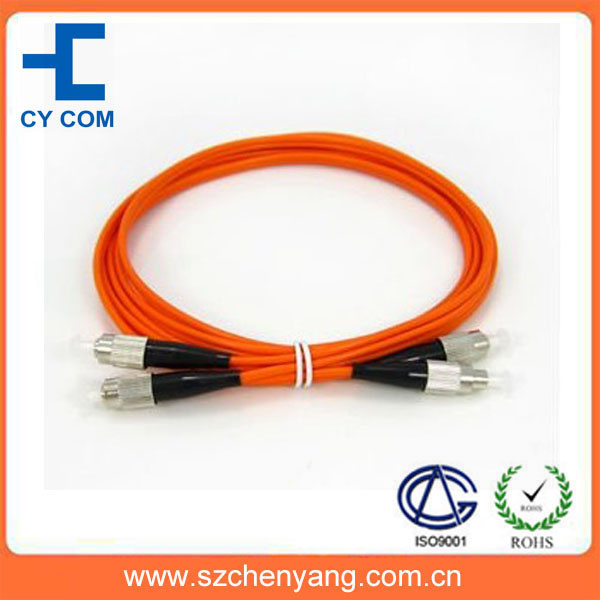

FC UPC MM Duplex Fiber Optic Patch Cord LSZH / PVC Cable
The FC connectors used in our patch cords are designed to NTT-FC standards with high quality zirconia ferrules and non-optical disconnect performance. They are fully compatible with existing FC hardware.
In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia
Are also performed periodically to guarantee the best quality. For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements. For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.
Other than standard single mode and multimode fibers, G655, OM2, and OM3 fibers are also
Available upon request. Flame retardant grade cable sheathing options are offered. Riser
Rated cable will be provided as standard. LSZH and Plenum can be provided upon request.
Features
？ In line with Telcordia GR-326-CORE standard
？ Low insertion loss, high return loss, high reliability
？ Good repeatability, interchangeability
？ Any diameter of fiber can be chose, 0.9mm, 2mm, 3mm,
10G fiber, Low Smoke and Zero Halogen can be chose.
Application
？ Fiber optic communcation system;
？ Fiber optic data transmission;
？ LAN, CATV;
？ Fiber optic testing system.
Ordering Information
For Example: FC/PC-FC/PC-SM-SX-φ 3.0-3M
Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, E2000, D4, DIN, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode(SM: 9/125μ M), Multimode(MM: 50/125μ M or 62.5/125μ M)
Product Structure: "DX"means Duplex, "SX"means Simplex
Fiber Diameter: φ 3.0mm, φ 2.0mm, φ 0.9mm
Cable Length: 1, 2, 3meter or customized.
Cable Type: PVC, LSZH, OM3, OFN
Google
|
Parameter |
Unit |
Index |
|
|
|
FC/PC |
FC/APC |
SC/PC |
SC/APC |
ST/PC |
ST/APC |
MU/PC |
LC/PC |
LC/APC |
|
Insertion Loss |
dB |
≤0.3(single mode); ≤0.1(multi mode) |
|
Repeatability |
dB |
≤0.1 |
|
Interchangeability |
dB |
≤0.2 |
|
Return Loss |
SM |
dB |
≥45 |
≥60 |
≥45 |
≥60 |
≥45 |
≥60 |
≥50 |
≥50 |
≥60 |
|
MM |
dB |
≥36without APC connector |
|
Mating cycle |
cycle |
1000 |
|
Operating temperature |
|
-40~+80 |
-25~+70 |
-40~+80 |
-25~+70 |
Shenzhen CY COM Product Co., Ltd. was established a few years ago and headquartered in Shenzhen. As a professional manufacturer and supplier specialized in fiber optical communication products, we mainly deal with fiber optic patch cords, pigtails, connectors, adaptors, attenuators, passive devices and layout products.
In the past several years, based on the market trend, CY Company has been assessed and certified as the meeting of requirements of ISO9001 & SGS and be known for high-end products quality, competitive prices, fast delivery and good service.
Not only offer OEM for fiber optic assemblies to some world leading companies in this field, but also we could hook up with many other partner companies and support them to win in the market.
With powerful R&D team, besides producing standard items, we manufacture products according to customer's detail specifications and requests even with customer supplied raw materials and parts.
If any should be help, welcome to contact us for assistance. We would love to do you a favor.
