Product Specifications
| Prod Model: |
FW759 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products: |
Professional Video Cameras for Movies Monitor |
| Color: |
Black |
| Backlight: |
LED |
| Resolution: |
1280*800 Pixels |
| Inputs: |
Video,Audio,HDMI |
| Outputs: |
Wire Remote OSD Controller,Built-in Speaker,3.5mm |
| Input Voltage: |
7.4V~35V |
| Viewing Angle: |
89°/89°(L/R) 89°/89°(U/D) |
| Power Consumption: |
≤5W |
| Install Way: |
1/4"-20 Thread Socket |
| Tripods Type: |
Professional Tripod |
| Tripods Use: |
Video Camera |
| Tripods Material: |
Aluminum |
| Compatible Brand: |
All |
Product Description

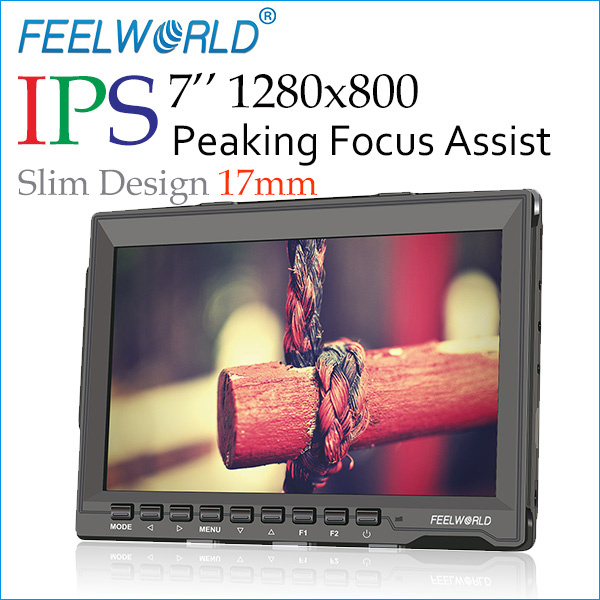

FEELWORLD 1280x800 Slim 7"professional video cameras for movies monitor with HDMI input check field
Now it's time to welcome our new product!
Specific Slim Design 17mm wide view angle IPS 1280x800 Monitor for Steadycam,DSLR Rig,Camcorder Kit,Handheld Stabilizer,Video Camera Crane ,seizing much more clear world. The high resolution LCD,1:1 pixel mapping and 800:1 contrast ratio provides users with the most accurate picture of FEELWORLD monitors.Professional Peaking Focus Assist
Application for full HD Vedio Camera in taking photos and Making Movies.
Advanced Feature:
1.Wide view angle IPS panel,HD1280x800 resolution
2.The enhanced 400cd/m2 backlight and 800:1 color contrast ratio
3.Slim design 17mm Portable Light compatible for Steadycam,DSLR Rig,Camcorder Kit,Handheld Stabilizer,Video Camera Crane
4.Inputs:Video,Audio,HDMI Outputs:Wire remote OSD controller,Built-in Speaker,3.5mm Audio
5.HDMI Mode: 480i / 576i / 480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps)
6.Peaking Focus Assist
7.Camera 5D II Mode
8.Check Field:(Red,Green,Blue,Mono)
9.Image Flip(U/D,L/R)
10.Centre Marker
11.ScreenMarker(80%,85%,90%,93%,96%,2.35:1)
12.4:3&16:9 image adjustable
13.Pixel-to-Pixel
Description | FEELWORLD 1280x800 Slim 7"professional video cameras for movies monitor with HDMI input check field |
| Model | FW759 |
| Resolution | 1280x800 |
| Dot pitch | 0.11775(H) x 0.11775(V) |
| Aspect ratio | 16:10 |
| Brightness | 400cd/m² |
| Contrast | 800:1 |
| Backlight | LED |
| Response time | 25ms |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
| Inputs | Video,Audio,HDMI |
| Outputs | Wire remote OSD controller,Built-in Speaker,3.5mm Audio |
| HDMI Support Mode | 480i / 576i / 480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps) |
| Power Consumption | 5w |
| Input Voltage | 7.4V~35V |
| working Temperature | –20~50ºC |
| storage Temperature | –30~60ºC |
| Install Way | 1/4"-20 Thread Socket(1 bottom side) |
| Unit Size | 176Lx130Wx17H(mm) |
| Unit Weight | 0.4kg |
Standard Accessory: Sunshade, F970 Plate, HDMI Cable, HDMI plug lock,Manual
