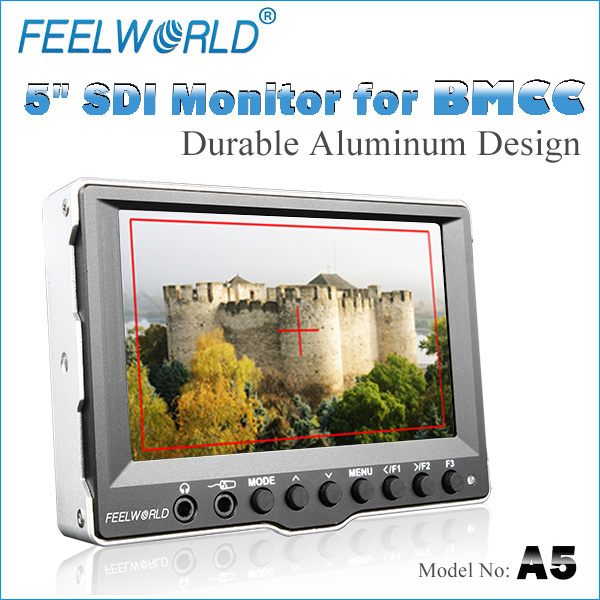

new 5inch hdmi small camera monitor with SDI for broadcasting ,it is compatible for BMCC,RED,ARRI,
| Specification |
| Description | new 5inch hdmi small camera monitor with SDI for broadcasting |
| Model | A5 |
| Resolution | 800x480 |
| Dot pitch | 0.05(W) x 0.15 (H) |
| Aspect ratio | 16:9 |
| Brightness | 350cd/m² |
| Contrast | 500:1 |
| Backlight | LED |
| Response time | 10ms |
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) |
| Inputs | HDMI,SDI |
| Outputs | HDMI,Earphone jack |
| HDMI /SDISupport Mode | 1080/24p/25p/30p/; 50i/50p;60i/60p;720/50p/60p;480i/480p: 576i/576p |
| Power Consumption | ≤10W |
| Input Voltage | DC7V-18V |
| working Temperature | 20ºC ~ 55ºC |
| storage Temperature | 30ºC ~ 65ºC |
| Install Way | 1/4"-20 Thread Socket |
| Unit Size | 134L × 97W ×28.5H(mm) |
| Unit Weight | g |
| Advanced Features |
| *Camera 5D II Mode |
| *Peaking Focus Assist(1.Red-outline peaking focos based on real view,2.Red-outline peaking focus based on Mono background) |
| *Pixel-to-Pixel |
| *Exposure(Zebra) |
| *Histogram |
| *False Colors |
| *Check Field(Red,Green,Blue,Mono) |
| *Centre Marker |
| *Screen Marker(80%,85%,90%,93%,96%,2.35:1) |
| *Mirror image(L/D,L/R)/Freeze |
Founded in 2006, Shenzhen Feelworld Technology Co., Ltd is a professional high-tech enterprise engaged in research and development, design, production and marketing of mini LCD Monitors, touch screen monitor, open frame monitors.
Attributing to our strict quality control in component selection and performance inspection, we have gained an excellent reputation from our worldwide customers. Certified by CE, FCC, CCC, and E-MARK standards, the performance of our products meets or exceeds the advanced world standard.
Driven by our powerful Research & Development staff, we have the ability to design and machine LCD video monitors as per your various requirements. It is free to adopt talents establishing a high-qualified R&D group with abundant experience to back up strongly for ensuring product performance and quality.
Now our products are widely used in Europe and North America, and we have cultivated very successful communications with our valued customers. With the help of their great ideas and feedback regarding marketing, design, and new product construction, we are consistently growing as the world leader in LCD display technology.
