Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Versions: |
Enterprise |
Product Description
Hardware:
1. EMC certification and intrinsic safety certification
2. FFphysical layer conformance test
3. Support Atmel ARM7 series CPU
4. Discreter MAU
5. Flash > or =256K
6. RAM > OR =128K
7. Support stable data memory
8. Support asynchrony serial interface, baud rate is changeable
9. Support common I/O port
10. Power supply: 9~32V
11. Current consumption: < or = 15mA
12. Supply to customer HW: 3V, 10mV or 5V, 6mA
13. Support 2 kinds of communication controller: Smar FB3050 and Microcyber FBC0409
Software:
1. Support Multi2000 complier
2. Support operating system transplantation--- Nucleus PLUS is used.
3. Profibus PA technical data:
(1) DP slave function
(2) Compatible with DP, DPV and DPV2
(3) Application layer interface
(4) Standard function block interface
(5) GSD file and function block source file

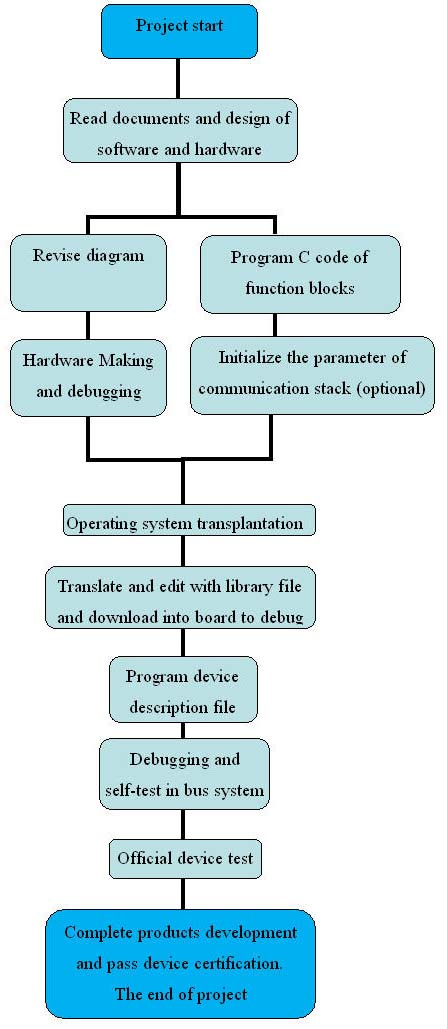

Development explanation
The toolkit Provides:
(1) Hardware schematic diagram: PCB diagram
(2) EDDL/GSD FILE (test file, only for Profibus PA)
(3) Source code for device description(DDL language, only for FF H1)
(4) Function blcck source code (C language)
(5) Communication stack library(FF H1 or Profibus PA)
A. Library file
B. Header
C. User interface function
(6) Interface library for function block
A. Library file
B. Header
C. User interface function
(7) Operaing system interface
(8) Source code for driving communication controller(C language)
User needs to have:
(1) ARM integration development tool
(2) FF Tokenizer DD development tool(including standard DD library and complier) V2.0 upwards (only for FF H1)
(3) ARM emluator
(4) Testing and debugging environment: Profibus system, FF system
Microcyber Inc. is established by Chinese Academy of Sciences. Based on fieldbus technique, the company engages in R&D, manufacturing, sales and engineering service of advanced industrial control systems, equipments, instruments and chips for industrial process control solutions.
As one of leading supplier and vender of fieldbus products, Microcyber mainly provides communication stack, communication controller chip (FF, PROFIBUS PA and HART), customized communication board (FF, PROFIBUS PA and HART), control configuration software, control system -- NCS4000 System, F/I converter, I/F converter, pressure transmitter with capacitance sensor or diffused silicon sensor (FF, PROFIBUS PA and HART) and temperature transmitter (FF, PROFIBUS PA and HART).
The company has a lot of experience in providing fieldbus products. Pressure transmitter, I/F converter and F/I converter have been registered in Fieldbus Foundation. Microcyber provides FF & PROFIBUS PA communication boards which are available in same hardware, and software outsourcing for supplier or manufacturer. Microcyber has supplied the communication boards to some manufacturers, such as EIM Controls Inc. And Dangdong Top Instruments Co., Ltd which are have registered in Fieldbus Foundation.
Also Microcyber is member of HART and Profibus foundation.
Microcyber Inc. is looking forward to the long-term smooth and close cooperation with you.
