Product Specifications
| Prod Model: |
NCS4000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Task: |
Adjust |
| Structure: |
Combination |
| Signal: |
Discrete |
| Mathematical Model: |
Linear |
Product Description
Process Automation:

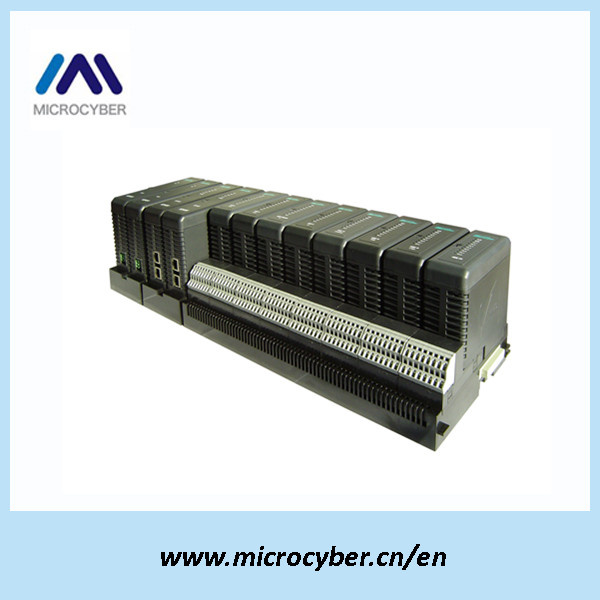

NCS4000 is a new distributed fieldbus control system. It is suitable for medium and large scale industrial control environment, and provides the control functions such as process control, logic control and batch control. It also can be widely used in metallurgy, cement, coke, sewage treatment, petroleum, chemical and other fields.
NCS4000 System Characteristic:
System Scale and Capabilities:
1. Complied with medium/large-scale industrial applications, 16000 physical connectivity points
2. Complied with Fieldbus interface modules, to connect more physical I/O points
3. The minimum scanning period for the application process is 20ms
Open and Digital:
1. Complied with the High Speed Ethernet (FF HSE) and EPA standards
2. Complied with the Fieldbus Protocols such as FF, HART, Modbus, etc.
3. Complied with the Programming Language Standard: IEC61131-3
4. Open data access interface, which is complied with the OPC standard
System Hardware Structure:
NCS4000 Control System is structured by the Super Management, Control Station, Field Equipment. The Field Equipment consists of intelligent sensors, transmitters, actuators, according to the Fieilbus Communication Protocol, together with other traditional instruments and analog signals.
System Software Strecture:
Distributed Structure is used in NCS4000. From the view of software and data processing, it can be divided into 3 parts: Sub-data service, Configuration Management and Monitoring Application.
NCS4000 has following features
Support large-scale industrial control application, maximum load 16348 points
Support multifarious fieldbus standards, such as FF, PROFIBUS DP, AS-I, HART
Support redundancy, include controller redundancy, network redundancy, I/O module redundancy and power redundancy
Support device management, diagnosis and maintenance
Support distributed configuration, offline configuration and simulation
Support IEC61131-3 programming standard
Open data access interface, support OPC standard
Integrate advanced process control technology, and provide industrial solutions.
Microcyber Inc. is established by Chinese Academy of Sciences. Based on fieldbus technique, the company engages in R&D, manufacturing, sales and engineering service of advanced industrial control systems, equipments, instruments and chips for industrial process control solutions.
As one of leading supplier and vender of fieldbus products, Microcyber mainly provides communication stack, communication controller chip (FF, PROFIBUS PA and HART), customized communication board (FF, PROFIBUS PA and HART), control configuration software, control system -- NCS4000 System, F/I converter, I/F converter, pressure transmitter with capacitance sensor or diffused silicon sensor (FF, PROFIBUS PA and HART) and temperature transmitter (FF, PROFIBUS PA and HART).
The company has a lot of experience in providing fieldbus products. Pressure transmitter, I/F converter and F/I converter have been registered in Fieldbus Foundation. Microcyber provides FF & PROFIBUS PA communication boards which are available in same hardware, and software outsourcing for supplier or manufacturer. Microcyber has supplied the communication boards to some manufacturers, such as EIM Controls Inc. And Dangdong Top Instruments Co., Ltd which are have registered in Fieldbus Foundation.
Also Microcyber is member of HART and Profibus foundation.
Microcyber Inc. is looking forward to the long-term smooth and close cooperation with you.
