Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Fiber Optic Connectors |
| Wiring Devices: |
ODF |
Product Description

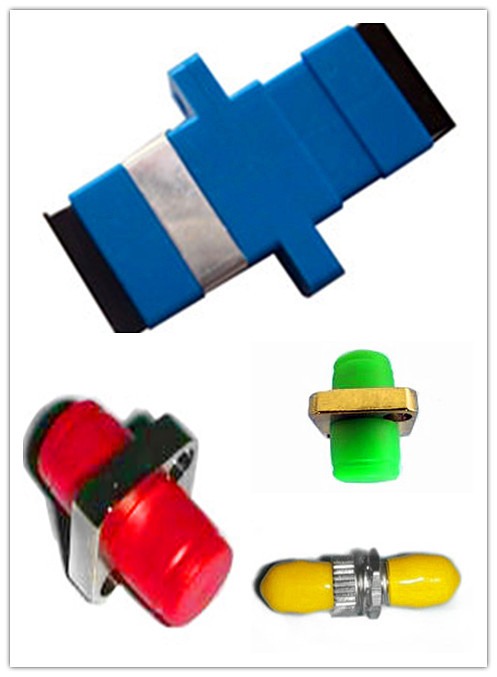

Fiber optical adapter( also known as flanges, Lotus device ) is a fiber - optic connector to a connection in part, this series of complete varieties, including FC, SC, St, LC, MTRJ, and the mutual transfer between products such as: St-sc, FC-st and other widely used in optical Distribution Frame ( ODF ), optical fiber communications equipment, instrumentation, stable and reliable performance.
Key Performance:
Fiber optical is connected by the tapping sleeves in the adapter. We provide all kinds of high-performance adapters.
Model:
FC/PC
FC/APC
SC/PC
SC/APC
ST/PC
Insertion loss(dB) ≤ 0.20
Iterance(dB) ≤ 0.10
Replaceability(dB) ≤ 0.20
Sleeve material Ceramic or metal
Working Temp. (º C) -40 — +80 -25— +70 -40 — +80
Storage Temp. (º C) -40 — +85
Industrial standard Bellcore TA-NWT-001209
