Fiber Array

Name: Fiber Array
Brand: China-Manufacturer-Directory.com
SKU: 669062835
Availability: InStock
Rating: 4.6 (143 reviews)

Supplier:	Reliable Photonics (Shenzhen) Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::
Trade Terms:	Express, by Air or Sea

Product Specifications

Product Description

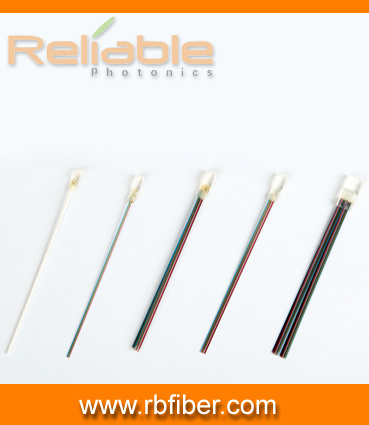

Fiber Array

Features:
1) High precise fiber core-to-core accuracy
2) Low insertion Loss and high reliability
3) High precise polishing angle or on request
4) Meet Telcordia GR-1209-CORE and GR-1221-CORE

Applications:
1) Planar lightwave circuits devices
2) Array waveguide grating(AWG's)
3) MEMS devices
4) Multi-channel micro-optics modules

Number of Channels	1CH	2CH		4CH	8CH	16CH	32CH	64CH
Material	Silicon, Quartz
V-groov Pitch (um)	250/127(±0.5)
Polishing angle (°)	0°(±0.3°) or 8°(±0.3°)
Pigtail Type	250/900um		2core 250/900um	4core Ribbon	8core Ribbon	2×8core Ribbon	4×8core Ribbon	8×8core Ribbon
Channel Spacing (um)	250		250	250	127	127	127	127
Package (LxWxH) (mm)	8x2.5x2.5		9.5x2.5x2.5	9.5x2.5x2.5	9.5x2.5x2.5	1.5x3.0x2.5	11.5x5.7x2.5	12x9.8x2.5
Working temp (ºC)	-40 ~ +85
Storage temp (ºC)	-40 ~ +85
Fiber length	1m or on customer’s request
Fiber display	Input or on customer’s request

Reliable Photonics founded in 2003, is a professional manufacture and supplier of high quality passive components in optical fiber communication field. With headquarter in Hongkong, R&D team and manufacture based in Shenzhen, with 1400 square meters plant, we supply not only standard products, but also customized ones for special application. Reliable photonics produces a large range of fiber optical products, including the Planar Lightwave Circuit Splitter (PLC), Fiber optic coupler, Fiber Array, WDM, Isolator and other FTTH components, such as Fiber Optic Patchcord, Fiber Optic Adapter, Fiber Optic Attenuator...

Reliable photonics is certified by ISO 9001: 2008 international quality system. Our production, packing, shiping and customer services can meet or exceed customer satisfaction. We treasure each customer and cherish every opportunity customers give us! For more information about us, please visit our website.
