Reliable Photonics (Shenzhen) Co., Ltd. >> Fiber Optic Fiber Array

Fiber Optic Fiber Array

Name: Fiber Optic Fiber Array
Brand: China-Manufacturer-Directory.com
SKU: 649365985
Availability: InStock
Rating: 4.8 (133 reviews)

Supplier:	Reliable Photonics (Shenzhen) Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	by air or express

Product Specifications

Prod Model:	FA

Product Description

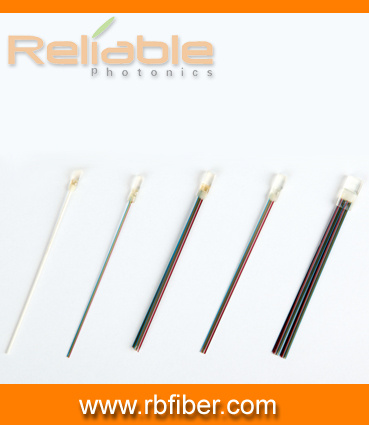

Fiber Array
Single channel multi channel are available.
Quartz and Silicon can be chosed.
High precise fiber core-to-core accuracy
Low insertion Loss and high reliability
High precise polishing angle or on request
Meet Telcordia GR-1209-CORE and GR-1221-CORE

Number of Channels 1 4 8 16 32 48
Material		Silicon, Quartz
V-groov Pitch(um) 250/127( ± 0.5)
Polishing angle( ° ) 0 ° ( ± 0.3 ° ) or 8 ° ( ± 0.3 ° )
Pigtail Type 250/900um 4core Ribbon 8core Ribbon 2x8core Ribbon 4x8core Ribbon 6x8core Ribbon
Channel Spacing (um) 250 250 127 127 127
Package (LxWxH)(mm) 6x2.5x2.5 9.5x2.5x2.5 9.5x2.5x2.5 11.5x3.0x2.5 11.5x5.5x2.5 11.5x8x2.5
Working temp( )	-40~+85
Storage temp( )	-40~+85

Reliable Photonics founded in 2003, is a professional manufacture and supplier of high quality passive components in optical fiber communication field. With headquarter in Hongkong, R&D team and manufacture based in Shenzhen, with 1400 square meters plant, we supply not only standard products, but also customized ones for special application. Reliable photonics produces a large range of fiber optical products, including the Planar Lightwave Circuit Splitter (PLC), Fiber optic coupler, Fiber Array, WDM, Isolator and other FTTH components, such as Fiber Optic Patchcord, Fiber Optic Adapter, Fiber Optic Attenuator...

Reliable photonics is certified by ISO 9001: 2008 international quality system. Our production, packing, shiping and customer services can meet or exceed customer satisfaction. We treasure each customer and cherish every opportunity customers give us! For more information about us, please visit our website.
