Product Specifications
| Prod Model: |
OPV2300/2400 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
FCC |
| Condition: |
New |
| Type: |
Wired |
| Support Network: |
Fiber Cable |
| Information Content: |
Video/Audio |
Product Description

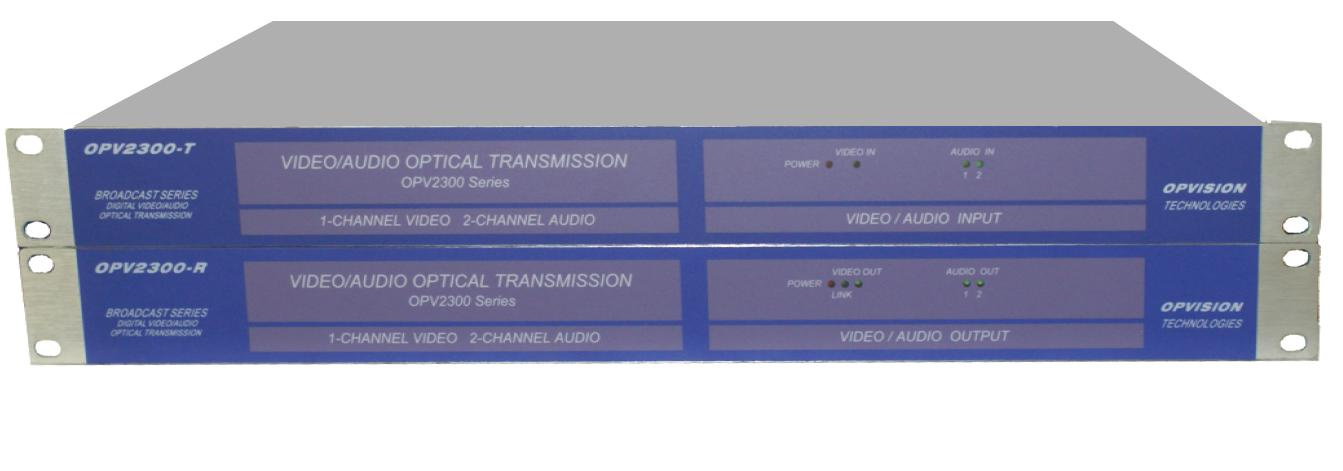

OPV2300/2400 series supply high quality broadcast transmission system. Normative OPV2300/2400 products
Provide one transmission channel which can carry one analog video stream and two audio streams over one
Multimode or one single mode fiber.
OPV2300/2400 products can be expanded to two channels (unidirectional or bi-directional) over one multimode or one single mode fiber. Each channel includes one Broadcast quality analog video stream and four audio streams (a pair of stereos). By using digital Technology, the transportation distance of the whole system is up to 60km.
OPV2300/2400 series are your ideal and economic choice for fiber transmission system with high capability and technique specifications for end-to-end transmission.
Type of the products The products describing
OPV2300T/R-M 1Video+2Audio
OPV2300T/R-S 1Video+2Audio
OPV2401TRX-M 2Video/4Audio
OPV2401TRX-S 2Video/4Audio
OPV2402TRX-M 2Video/4Audio
OPV2402TRX-S 2Video/4Audio
Features:
Exceed specification of 250C intermediate range video transmission
Digital encoding Video/Audio/Data techniques
8/10 bit digital sampling accuracy
Suitable for one channel video or two channel videos
Wavelength division multiplexing technique is adopted in bi-directional transmission
Independent /card-cage structure
Applications:
Broadcasting and TV program signal transmission
Long-distance multimedia teaching
Video meeting
Security monitoring and cable TV system
Relay between studio to transmission center (STL)
TV programming
Opvision is a company dedicated to provide fiber optical transmission solution with newest products using most advanced technologies. Our fiber optical transmitter and receiver can be both employed in broadcasting and multimedia application. The application is very broad and comprehensive including broadcasting and TV program transmission, multimedia display and monitor, military communication, video conferencing, security monitoring, intelligent transportation system, replay between studios and transmission center. Some other systems such as sports, satellite, sky-cam, surveillance, government and healthcare can also find our products useful in terms of both functionality and quality.
A large inventory of products with various specifications can meet different user demands and requests. On the basis of strong R&D and production capability, we can do OEM and made-to-order or customization.
For more detailed information, please refer to our website by OPVISION.
