Hangzhou Techwin Industry Co., Ltd >> Fiber Splicing Machine Fibre Fusion Splicer Fiber Optic Splicer Techwin Tcw-605c

Fiber Splicing Machine Fibre Fusion Splicer Fiber Optic Splicer Techwin Tcw-605c

Name: Fiber Splicing Machine Fibre Fusion Splicer Fiber Optic Splicer Techwin Tcw-605c
Brand: china-manufacturer-directory.com
SKU: 753345395
Availability: InStock
Rating: 4.3 (149 reviews)

Supplier:	Hangzhou Techwin Industry Co., Ltd
Price:	US $ 5000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Splicing Time:	10s
Heating Time:	30s
Electrode Lifetime:	>4000 Times, Replaceable
Warranty Period:	One Year or More
Work Mode:	Automatic, Manual
Certification:	ISO

Product Description

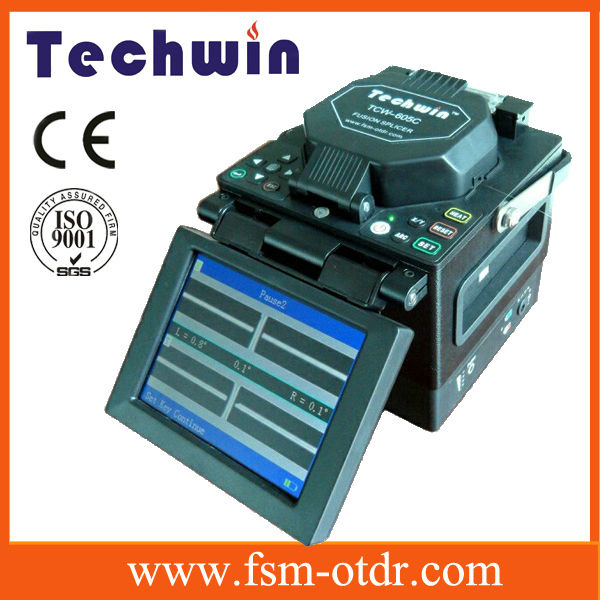

Fiber Optics Splicing Machine Fiber Splicer Fiber Fusion Splicer Techwin TCW-605C

The World's Fastest and Easiest Ribbon Fusion Splicer TCW-605C

The First & Professional Manufacturer in China

Equal to or better than Fujikura FSM-60S or Sumitomo Type-39

Features: TCW-605C Optical fiber Splicing Machine \\

PAS image digital processing system,core or clad alignment is optional;

The arc is calibrated by the environmental parameters as temperature and pressure;

Variety display group,the Maximum image magnification is 300;

Typical splicing time is 8 seconds,30 seconds heating;

Intelligence operate,auto heat or work when open the shield;

High definition 5.7' colorful LCD;

Hight to 4000 groups fusion records can be stored;

High capacity,plug battery,long work time;

Multilingual machine

Teachnical parameters: TCW-605C Optical fiber Splicing Machine

Application of optical fiber	SM(Single mode), MM (Multimode), DS(Dispersion shifted fiber), NZDS(Non zero dispersion shift, G655 fiber)
Image Processing	Digital Processing
Cladding outside diameter	80-150um
Coated optical fiber diameter	100-1500um
Optical fiber cutting length	8-16mm,coated optical fiber diameter250um;16mm(Standard) Or 8-16mm(Optional),Coated optical fiber diameter 250-1000um
Average splicing loss	0.02dB(Single mode), 0.01dB(Multimode), 0.04 dB(DS)0.04 dB(NZDS)
Weld time	9 seconds(Standard SM)
Return loss	>60 dB
Welding procedure	53 groups factory presets, 40 groups user settings.
Loss Estimation	Available
Splice loss storage	5000 groups newest connection results, each with 20 parameters
Optical magnification	The X and Y axes independent display, magnification of 300 times; Or the X/Y axis shows at the same time, magnification of 150 times.
Display	High performance high 5.7 inches color LCD display, Display the contents can be reversed, convenient bidirectional operation.
Heating mode	9 groups factory presets, 24 groups user settings, heater temperature can be set
Typical heating time	30 Seconds(standard)
Tension test	2N
Interface	VGA
Battery capacity	About 160 times and the subsequent heating(Power saving mode)
Electrode life	2500 times
Heating tube	60mm,40mm and a series of miniature casing
Work environment	0-5000m(Altitude), 0-95%(Humidity)-10-50(Temperature)
Power Supply	AC Adapter input voltage 100-240 50/60Hz, Output Voltage: DC13.5V/5A;Built-in 8000mAh Lithium battery
Size	150mm(Long)×150mm(Width)×135mm(High)
Weight	3.2Kg(Including battery)

Delivery: TCW-605C Optical fiber Splicing Machine

7 days after receiving the payment.

Operate environment: TCW-605C Optic Fiber Splicer

Parameter calibration experiments:

High voltage arcing circuit environment parameter calibration experiments have been carried out in Shanghai, Xi'an, Lanzhou, Xining, Lhasa, 0 to 5000 m altitude.

The machines can be intelligent perception of the change of the outside temperature, pressure and other environmental parameters, automatically adjusts discharge parameters to produce a stable arc.

Standard Package: TCW-605C Optical fiber Splicing Machine

ARC Fusion Splicer, Carrying Case, High Precision Fiber Cleaver, Tri-hole Fiber Coat Stripper, AC Adapter/Battery Charger, Battery Charger Cord, Battery Pack, Spare Electrodes(one pair), Blower Brush, V-groove Cleaning, Quick Reference Guide, Video Instruction Manual, Cooling Tray, Alcohol Dispenser, Monitor Coating, Monitor Cover, USB Cable.

Profile of the Company

We, Techwin (China) Industry Co., Ltd was established in 1998, focusing on Fusion Splicer, OTDR, Optical Fiber Power Meter, Fiber Light Source, Cable Fault Locator, Optical Fiber Identifier, Visual Fault Locator, Optical Fiber Talk Set, PON Power Meter, Optical Variable Attenuator, Optical Tool Kit, PLC Splitter, Fiber Coupler etc. Our products and Service are exported to worldwide(More than 90 Countries and Regions) and we create USD10, 000, 000 for our annual sales, and continue the rapid growth all the time.

Our Production

Techwin equipment is used by technical and non-technical staff in all phases of manufacture, installation and maintenance. Typical applications are to verify, test, certify and repair fiber optic systems in telecom, datacom, defense and automotive applications. Our universal connector easily is adapted to a variety of popular connector styles.

Why Choose Us

Currently, communication industry is characterized by increasingly broad deployment of what was once considered a specialist technology. So it is increasingly important that fiber optic equipment is versatile, economic, reliable and also very easy to use. We also provide professional technical consultation and recommend suitable solutions for your demand and requirement. Therefore, Techwin Industry is the perfect source for your communication solution.

Our Qualification

Techwin has always provided excellent and practical fiber optic solutions for the industry's needs, and we continue this tradition today. Our high quality fiber test equipment and innovative reporting software provide the best return on investment in the industry, by lowering overall project cost, and improving customer confidence.

Where You Can Meet Us

We attend the main exhibition around the earth, such as Convergence India, OFC in USA, iTIndoComm in Indonesia, CommunicAsia in Singapore, NETCOM in Brazil, ECOC in Europe, GITEX in Dubai, Vietnam Comm in Vietnam etc

Contact Us Today

Technology makes ideas happen and we make your work easier. For more information and the possibility of our agent in your local market, please feel free to contact us today.
