Product Specifications
Product Description
Product Description
The World's Fastest and Easiest Core-Aligning Fusion Splicer,Stable ,Reliable,Affordable.

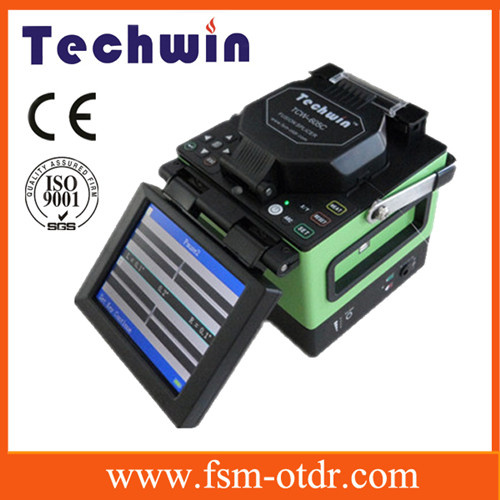

Splicing machine TCW-605c adopts high-speed image processing technology and special precision- positioning technology,automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD monitor displays all steps of fiber fusion clear at a glance.
Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.
Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.
Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, Turkish,English etc.
Fusion splicer
THREE advantages:
--Suitable for 0.25mm bare fiber, 0.9mm buffered fiber, Splice on Connector, Flat FTTH ---Fiber Cable(Drop Cable), clamp Change free(The First, Unique in the world)
--Button and Menu is same as FSM-60S, in accord with the habit of usage
--One Step Fiber Cleaver with Automatic Blade Rotation (The First, Unique in China)
Fusion splicer
Product features:
PAS image digital processing system,core or clad alignment is optional;
The arc is calibrated by the environmental parameters as temperature and pressure;
Variety display group,the Maximum image magnification is 300;
Typical splicing time is 8 seconds,30 seconds heating;
Intelligence operate,auto heat or work when open the shield;
High definition 5.6' colorful LCD;
Hight to 4000 groups fusion records can be stored;
High capacity,plug battery,long work time;
Multilingual machine
Fusion splicer
Product Details
5.6 inch TFT color LCD monitor display
The fiber magnify up to 300 times,all steps of fiber fusion clear at a glance.
Auto calculate splicing loss,low splicing loss.
The Menu of Fiber Cable Splicing Machine TCW-605C
Mutilanguage to be provided
Arc Calibration free system
The Advanced core to core fiber profile alignment system(PAS)
Heater built-in tube heater,the average heating time 30 seconds
Fusion splicer
Specification
Optical Specifications | TCW-605C |
| Fiber Types | SM(Single mode), MM (Multimode), Dispersion shifted,Non zero dispersion shifted and other SMF ITU-TG 657 fibers |
| Cable Types | Suitable for 0.25mm bare fiber,0.9mm buffered fiber,splice on connector,Flat FTTH Fiber Cable(Drop Cable),Clamp Change Free |
| Average splicing loss | 0.02dB(Single mode), 0.01dB(Multimode), 0.04 dB(DS)0.04 dB(NZDS) |
| SplicingTime | Typical Splicing time:8s |
| Heating Time | Typical heating time:30s |
| Return Loss | 60dB or greater |
| Fiber Cladding | 80 μm -150 μm |
| Fiber Coating | 100 μm -1000 μm |
|
| Fiber Cleaver Length | 8-16mm(coating diameter<250 μm );16mm(coating diameter 250-1000 μm) |
| Program | 10 units factory setting SM program. 10 units factory setting MM program,30 units user setting SM program. 30 units user setting MM program |
| Align Mode | Advanced Profile Alignment System(PAS) |
| Storage | 4000 results |
| Data Transmisson | USB Port |
| Heater | Built-in tube heater,AUTO Heat Mode |
| Heat-Shrinkable Tube | 40mm,60mm and a series of micro Heat-Shrikable Tubing |
| Screen Display | Two CMOS Cameras, 5.6 inch 640*480 TFT LCD, core of the fiber is clearly visible |
| Lighting for Constructions | Built-in super High-Brightness LED supply convenience for night work |
| Magnifications | 300X for single X or Y view ,300X for X and Y view(left/right),150X for Xand Y view(up /down) |
| Work Mode | Automatic,Manual |
Delivery
7 days after receiving the payment.
About us
We, Techwin (China) Industry Co., Ltd , are the highly optical fiber machine professional supplier, focusing on Fusion Splicer, OTDR, Optical Fiber Power Meter, Fiber Light Source, Cable Fault Locator, Optical Fiber Identifier, Visual Fault Locator, Optical Fiber Talk Set, PON Power Meter, Optical Variable Attenuator, Optical Tool Kit,PLC Splitter, Fiber Coupler etc.
Our products and Service are exported to worldwide(More than 90 Countries and Regions) and we create USD10,000,000 for our annual sales, and continue the rapid growth all the time.
CE & ISO9001:2000 certified company
First manufacturer in China
Products and services are exported to more than 90 countries and religions
First Class Services and expert quality
Good after- sales service, One year warranty(Two years or Three years warranty is available for special order)
