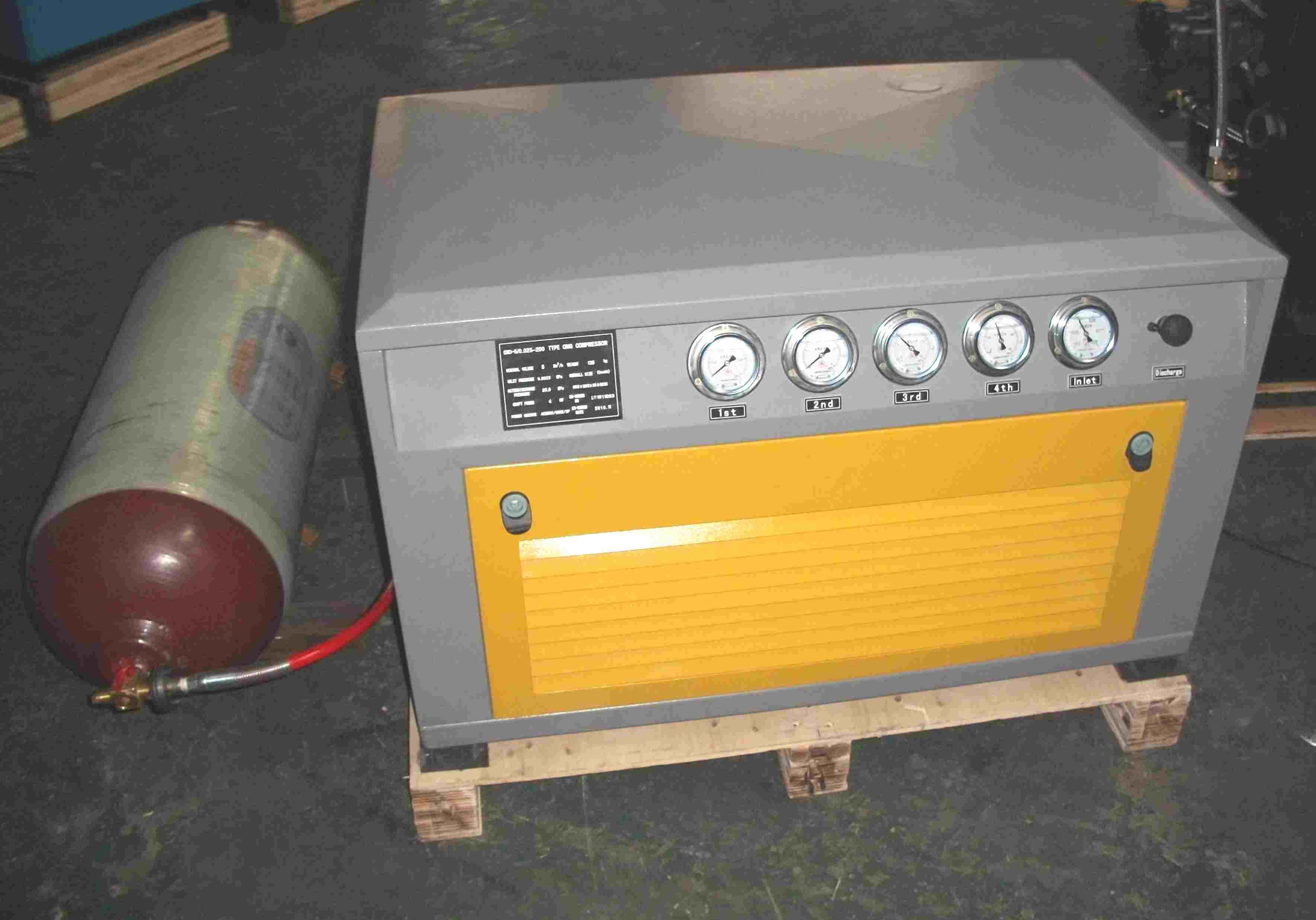

Filling Station (DMC-5/200) CNG Compressor

Name: Filling Station (DMC-5/200) CNG Compressor
Brand: china-manufacturer-directory.com
SKU: 675697855
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 2100-2300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	DMC-5/200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure:200bar-250bar:	Voltage:380V50Hz3p,3kw
Type:	Reciprocating
Power Source:	AC Power
Configuration:	Stationary
Lubrication Style:	Lubricated
Application:	Low Back Pressure Type

Product Description

Compressed Natural Gas (CNG)
Model: DMC-5/200
Standard Capacity( Nm3/h): 5.0
Feed pressure Mpa: 0.01
Product Pressure (G): 20-25Mpa, 3000-3600psi
Inlet Temp C: 20
Motor: 380v 50Hz 3ph / 230v 60Hz 3ph

Refuel CNG vehicle at home, easy and convenience.

Code	DMC5
Flow rate	5 Nm3/h 3 cfm
Filling time(60L CNG tank)	2.5 hour --(200bar 3000psi) 3.0 hour --(250bar 3600psi)
Working pressure	200bar /3000psi or 250bar /3600psi
Motor power	Ex2.2kw/3hp 50hz single phase for 200bar only
Motor power	EX 3.0kw/4.0hp 50/60hz, three phase
Inlet pressure	Less than 0.3bar 5psi
Oil separator /oil filter	1/1
Safety valve/ Alarm sensor	1 in final/ option
Time meter	1
Starter	manual
Switch	auto stop
Emergency stop	manual
Condensate/gas drain	manual
Filling hose connect	1
Dimensions(H-W-D)	600-900-650 mm
Weight	130 kg
Noise level	50 db(A)

DMC---A leading air & CNG compressor manufacturer for over 10 years

---ISO 9001 and CE certified

---Global competitive price and guaranty

---High quality integrated with Italy technology

---Customer over 20 countries in the world

DMC is a manufacturer in air compressor and CNG compressor industry. We have over 10 years experience in export business. Valued customers are at US Canada Mexico Argentine Peru Colombia Germany Italy Finland Poland Australia etc. Complete lines units with CE marked and ISO 9001.

European original screw airend and valve are be used to guarantee quality.

Our products line include:

--compact silent designed series PACK (5-20HP)

--3 in 1 compressor with dryer and air receiver series PACK-TA (5-20HP)

--stationary series SC (25-350HP)

--frequency variable speed drive series VSC (25-180HP)

--diesel portable series DSC (80-330HP)

--CNG gas compressor

Inherit excellence traditions of European compressor design, the core components of DMC compressor, such as screw air end and control valve, are all from European company. The air compressor products has quality performance of reliability, save energy, silent to meet customers more higher demand to compress air, reduce used cost and save money for customers instantly.

100% of our compressors are tested by using the latest inspection equipment and techniques, to assure the highest degree of product manufacturing quality and mechanical reliability.
