FILTER ULTRASONIC CLEANING MACHINE, FILTER ULTRASONIC CLEANER/CLEANERS
KEEPLEADER™ SERVICEABOUT PRODUCT
Customized design; Safe and convenient operation
ABOUT FACTORY
Comprehensive management process, leading technology and service team
EXPERIENCE
Internationalization of business process; Rich experience of Non-standard design
AFTERSERVICE
Uniform standard with special difference for each, Professional and Experienced service
MARKET
Yearly 30% Market share increased, One-to-one service
MFR: KEEPLEADER™ have modified and designed model for our customers' unique and special requirements, please contact KEEPLEADER™ for updated details
MACHINES' INTRODUCTION AT KEEPLEADER™| Ø Application |
| Do Cleaning for Motor, Car engine and peripheral engine parts, filter and other metal or plastic parts in need of removeing oil, Polishing wax, dust and PCB,ELECTONIC PARTS etc |
| Ø Character |
| Auto frequency tracking function, which have advantage of automatic find the best ultrasonic performance for different cleaning parts This machine can connect with remote control All in one machine, Compacted design, which is easy operation The machine has special access to do maintenance Low voltage operation penal for safe operation |
| Ø Detailed parameter |

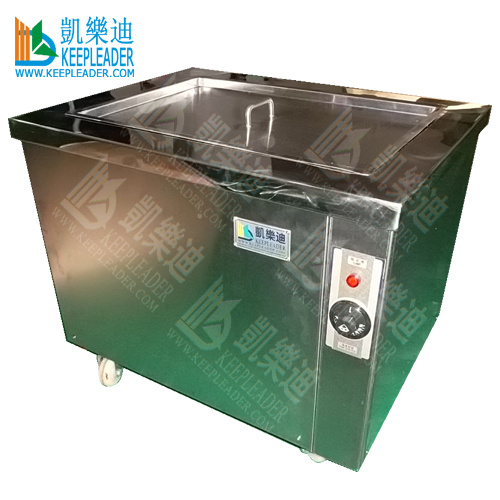

| Name | FILTER ULTRASONIC CLEANING/CLEANER/CLEANERS |
| Model | KLE-1024 |
| Vibrators | 24PCS |
| Auxiliary | cleaning basket and heating |
| Ultrasonic power | 1200W |
| Heating power | 4KW |
| Vibrator standard | 28khz/40khz,50W/60w/pc (optional) |
| Power supply | 380V/220V,50HZ/60HZ (optional) |
| Size of inner cleaning tank | 590*400*400MM (L*W*H) |
| Size of outside | 720*500*600MM (L*W*H) |
| Capacity | 94L (70L is working volume) |
| Control mode | Mechanical |
| Heating temperature | 0 up to 110 adjustable |
| Vibration mode | Bottom vibration |
| Heating mode | Heating board at two sides |
| Cleaning basket | Stainless steel, the mesh over 10*10mm |
| Switch | Separated Power Switch, Ultrasonic SW and Heating SW |
| Configuration | Assembled Four Universal wheel |
| Separated lid/Cap |
| With cleaning Basket |
| Each generator has power wire of 5m |
| High Q value(NTK made in Japan) Vibrators |
| Stainless steel Drain valve assembled under the bottom |
| Automatic frequency tracking Generator |
| Over-current protection |
| Soft-start function |
| Ø Material |
| Inner cleaning tank | SUS304L,2.0mm |
| Vibrating side | SUS 304L,2.5mm |
| Surrounded outside | SUS 304L,1.0mm |
| Base support | Stainless steel Square tube 38mmx38mm,1.5mm |
| DC Connector | no, low voltage power connection |
| Ø Process standard |
| Vibration side | Hard chrome plated over 0.05mm |
| Appearance | No glitches, no corners, smooth, beautiful |
| Inner cleaning tank | Well welded, upright, water-proof |
| Welding spot | No burn marks, welding marks after polishing |
| Fixed screw | Ball head smooth |
| Assembled mode of vibrator | Glued + Screwed |
| Heating rod | Well insulated, short-cut protected |
| Ø Free spare parts |
| Separated generator, heating rod, fuse |
| Ø Packing |
| Wooden case with pallet, easy operated by fork Supported under the bottom avoid impacting during delivery Stretch seal around |
SERVICE PROCESS AT KEEPLEADER™the clients offer information of the workpieces being cleaned (eg: picture, materials, sizes, requirements, etc) if have samples, it's better to send KEEPLEADER™ some samples to perform the cleaning test, if can be cleaned, we provide offer sheet, once confirmed, sign a contract, the clients paid the deposit, KEEPLEADER™ start equipment building, after passing the acceptance, and receive the balance payment, KEEPLEADER™ delivery the device to clients
AFTER-SALES SERVICEAfter purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice
01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines' design, character, application, operation, maintenance,
and related, KEEPLEADER™ also welcome our clients feed back the machines' working condition that can get one to one service
02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect
03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video
04: KEEPLEADER™ can go to oversea for on-site training
05: KEEPLEADER™ can provide electric diagram if in need

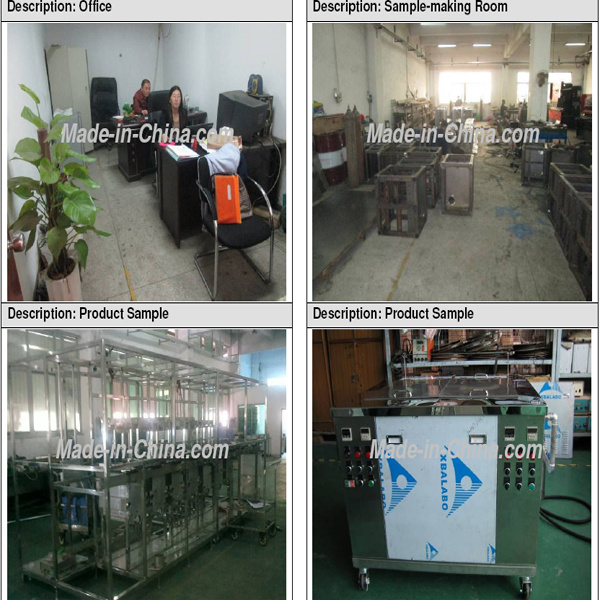

FINISHED SAMPLES AT KEEPLEADER™
