Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2440×1220×9~20 mm |
| Type: |
Silicate Cement / Portland Cement |
| Hardening Feature: |
Rapid Hardening |
| Heat Of Hydration: |
Moderate Heat |
| Technique: |
Dry Process |
| Color: |
Grey |
| Mineral Composition: |
Calcium Silicate |
Product Description
Introduction

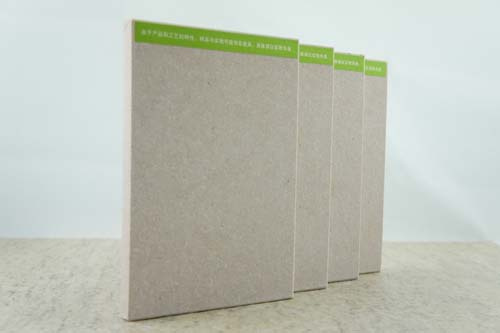

Fireproof Board is a high quality laminated calcium silicate board. It does not contain asbestos, sepiolite or other inorganic fibers and is free from formaldehyde. It is a strong and lightweight, non-combustible building board for use in many fire resisting applications up to 240 minutes fire rating performance to international standards including BS, EN, GB, and ISO. Fireproof Board is made of special fire resistant minerals materials and has undergone a sophisticated process. It is simple to work with and fix, easy to decorate, resistant to the effects of moisture and will not rot and decay. Fireproof Board is manufactured to ISO 9001 quality management system and ISO14001 environmental management system, and has obtained the Green Product Label Award issued by National Environment Protection Bureau.
Description
Fireproof Board is off-white in color and has a smooth sanded surface on one side and a slightly textured reverse. It consists of fire rated minerals and calcium silicate matrix reinforced with selected fibers and special fillers. The board is then cured under an autoclave process where high pressure and steam is induced to ensure its intrinsic fire resistant property.
Apart from fire rating properties, Fireproof Board is also an ideal building board for use in constructions where there is a need for resistance to damp or high humidity. It contains no water soluble additives and will not rot, degrade or deteriorate. Fireproof Board will absorb water causing some loss of strength, which is fully recovered on drying. Any staining on the board caused by leakage can be easily painted over. Moisture will not cause leaching or efflorescence and has no permanent effect on the board. Fireproof Board is classified as non-combustible when tested in accordance with BS 476: Part 4, BS EN ISO 1182 and GB8624: Grade A. Many fire resistant constructions such as wall, ceiling, duct, protected shaft or cavity barrier had used Fireproof Board as the core element. As revealed from the tests, Fireproof Board is capable of resisting fire attack up to 1200°C for 240 minutes.
Fireproof Board is under fire tests of ceiling and partition to international standards
Size&Colours
Standard size
| Thickness | 9/12/15/~25mm |
| Widths | 900/1200/1220 mm |
| Lengths | 1800/2400/2440 mm |
Note: All metric / standard boards come with cutting square edges. Other sizes are also available and can be produced to special order.
Manufacturing Tolerances
| Length tolerance | +/- 5mm |
| Width tolerance | +/- 5mm |
| Thickness tolerance | +/- 0.3mm |
| Diagonal tolerance | +/- 5mm |
Performance
Fireproof Board is made of green materials. It has superior fire resistance performance and excellent dimensional stability under heat and severe moisture environments. Fireproof Board is suitable for the construction at damp and wet areas.
| Tests | Standards | Results |
| Density | | 900 kg/m3 +/-10% |
| Nominal weight | | 8.9kg/m2 - 9mm
11.9kg/m2 - 12mm
14.8kg/m2 - 15mm |
| Surface alkalinity | | pH 7-10 |
| Flexural strength | | 6.0 MPa (along grain) |
| Flexural strength | | 9.5 MPa (across grain) |
| Moisture movement (ambient to saturated) | | 0.05% |
| Dimensional changes in length due to relative humidity | BS EN 318 | +0.01% @20°C, RH 30%~85%
- 0.02% @20°C, RH 85%~30% |
| Moisture content | | Ex works - 15%
In situ - 6% |
| Thermal conductivity | EN 12264 | 0.17 W/mK |
| Linear thermal expansion | BS EN ISO 10515-8 | -3.06 x 1E-6/°C |
| Fire rated systems | BS 476: Part 20-24
BS EN1363-1 & 2 | up to 240 minutes |
| Non-combustible test | AS 1530.1
BS 476: Part 4
BS EN ISO 1182 | Pass |
| Heat of combustion | BS EN ISO 1716 | Pass |
| Reaction to Fire | EN 13501-1 | Euro Class A1 |
| Surface spread of flame | BS 476: Part 7 | Class 1 |
| Fireproofpagation Test | BS 476: Part 6 | Class 0 |
| Test for ignitability | BS 476: Part 5 | Class P |
| Minimum bending radius | | Along grain
7200mm for 9mm
9800mm for 12mm |
Acoustic reduction
(over range 100-3150 Hz) | AS 1276.1
AS 1191
ASTM E90
ASTM E413
BS EN ISO 140-3
BS EN ISO 717-1 | | thickness | Rw, dB | STC | | 9mm | 26 | 26 | | 99mm steel stud partition | 46 | 46 | | 105mm steel stud partition | 49 | 49 |
|
Specific Properties
| | Moisture resistance | | Acoustic insulation |
| | Light weight but string | | Small expension rate |
| | Fire resistance up to 240 minutes
BS EN Standard
Euro Class - A1 | | Decorative finishes by tiles, paint or wall paper |
| | Rot proof, anti-Graffiti | | Maintenance friendly |
| | Good chemical resistance | | Easy to use |
| | | | Immue to attack from insects or vermin |
Application
Fireproof Board is a high performance board ideally used in constructions for resistance of fire, damp and high humidity areas such as:
1.Swimming pool
2.Food processing plants
3.Hospitals
4.Kitchen and Laundries
5.Fire rated walls and hoardings
6.Fire rated doors
7.Fire rated internal linings to industrial buildings
8.Fire resistant parapet walls and spandrels
9.Fire resistant ceiling
10.Fire rated infill panels
11.Composite panels
12.Encasement to structural steelwork
13.Smoke extraction duct encasement
14.Fire rated casings for electrical & mechanical services
Access Panels at fire rated ceiling
For details of fire-rated partitions / enclosure systems, please refer to the Installation Guide of Fireproof Boardofing construction or contact us directly.
Fireproof Board is formulated without asbestos, sepiolite or any inorganic fibres. When using power saws or sanders in a confined space, dust extraction equipment is recommended to control dust levels. Fireproof Board is designed for non-load bearing construction. Horizontal boards or ceiling panels must not be walked on as they are not designed to take additional loads between supports; if there is a risk of this occurring, warning notices should be displayed. Fixers must ensure that they work from adequate and safe platforms where necessary.
Note: All physical performance values of products depicted in this catalogue are averages based on the standard production. The figures may be changed dependent on the test method used
