Product Specifications
| Prod Model: |
AB-802 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension Of Main Body: |
86lx86wx20h(mm) |
| Standard Structure: |
Fireproof Material |
| Current Rating: |
3A@36VDC Max |
| Output Contact: |
Nc\COM |
| Optional Accessories: |
Concealing Box |
| Operating Humidity: |
0-95% (Relative Humidity) |
| Suitable For Door: |
Hollow Door |
| Weight: |
0.15kg |
| Usage: |
Control Button |
Product Description
Specifications:
1. Material: Plastic Panel
2. Suitable for all kinds of Locks
3. Fireproof Material

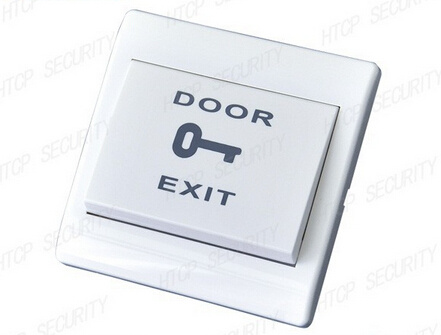

Plastic Panel Access Control Button Switch
AB-802 Push Button is Plastic Panel, Suitable for all kinds of Locks.
Features:
Plastic Panel with Elegant Style.
100000 Cycles tests.
Three Contact Output, Suitable for all kinds of Locks.
The Best Choice for Access Control.
Parameter:
Dimensions | 86Lx86Wx20H(mm) |
| Standard Structure | Fireproof Material |
| Current Rating | 3A@36VDC Max |
| Output Contact | NC\COM |
| Mechanical Life | 500000 tested |
| Optional Accessories | Concealing Box |
| Suitable for Door | Hollow Door |
| Operating temp | 10~+55°C(14-131F) |
| Operating Humidity | 0-95% (relative humidity) |
| Panel Material | Fireproof Material |
| Weight | 0.15kg |
| Standard Packing | 176pcs |
