Product Specifications
Prod Model: |
N. D0.4-1.2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1220*2440/1220*2500/1220*2700/1220*3000 |
Density: |
1.2-1.5g/cm3 |
Delivery Time: |
10-15days After Receipt of The T/T Deposit or L/C |
Nearest Port: |
Shanghai Port |
Grade: |
Grade A |
Appearance: |
Panel |
Material: |
Non-asbestos |
Shape: |
Rectangle |
Refractory Temperature: |
Over 2000 ℃ |
Usage: |
Building |
Thickness: |
4-30mm |
Color: |
White,Grey,Yellow,etc |
Type: |
Calcium Silicate Board |
Surface Finishing: |
Sanded, Polished |
Edge: |
Square, Bevelled, Tapered,Groove |
Product Description

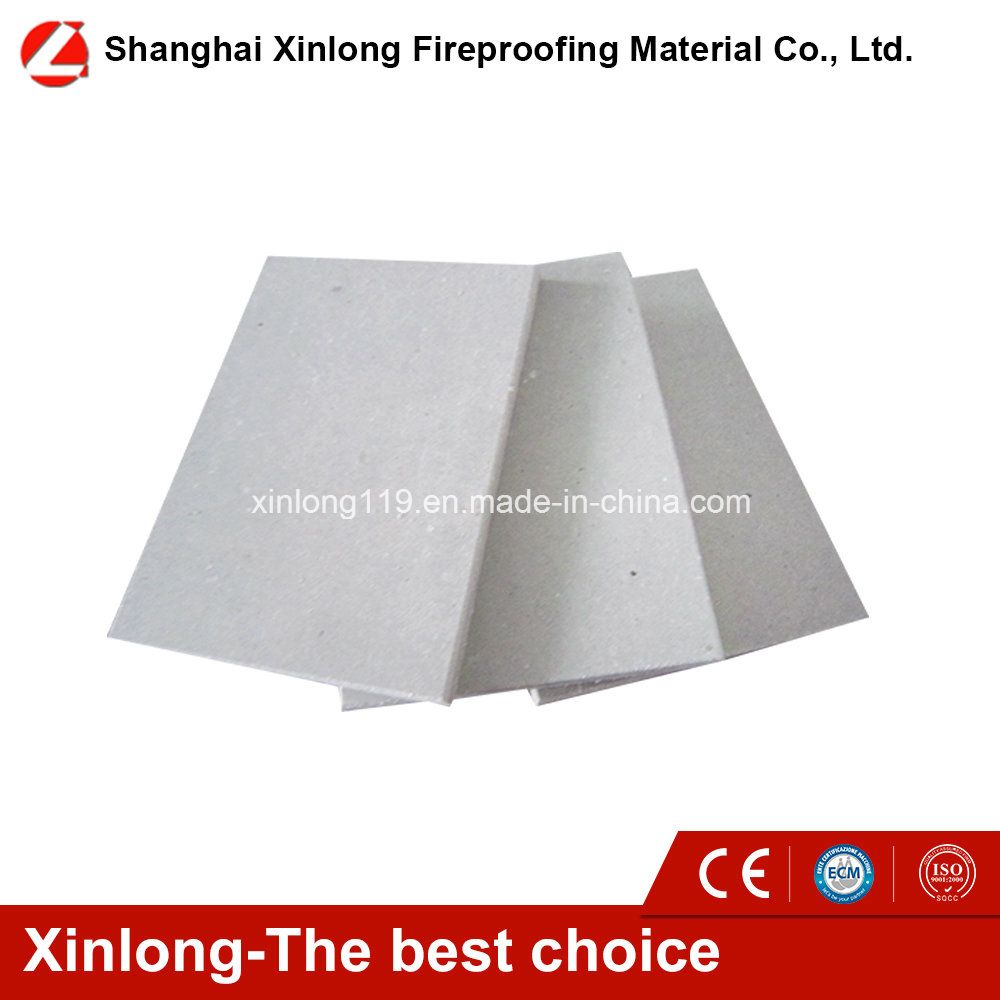

fireproof materials partition wall calcium silicate board price
Composition:
It is made of made of silicate, expansion perlite, calcium silicate, glass fiber, plant fiber, mica,diatom powder etc raw material.Together with natural plant fiber reinforced and auxiliary materials,made by the special treatment technology and advanced production process to molding, pressing, steam-curing.It is a world-famous long building material according to its performance stability and low shrinkage rate.
Specification:
1) 2440 × 1220 × (4-30)MM
2) 2400 × 1200 × (4-30)MM
3) 2700 × 1220 × (4-30)MM
4) 2700 x1200 x (4-30)MM
5) 3000× 1220 × (4-30)MM
The other specification is also avaliable.
Characteristic:
1.Excellent fireproof performance,Class A non-combustible material.
2.Excellent waterproof performance.
3.Impact strength.
4.Heat insulation, sound insulation.
5.Stable performance,and alkali and acid resistance.
6.Low shrinkage rate.
7.Durable use,convenient construction.
Technique Data:
No. | Inspection Items | Index of Standard | Test Value | Individual Determinant |
1 | Mechanical Properties | (M Pa)Flexural strength | X≥AL 58% Aspect strength ratio≥58% | X=15,AL≥12,X>AL Aspect strength ratio65% | Qualified |
2 | Physical properties | (g/cm3)density | 1.2 1.36,1.38 | Qualified | |
water absorption | ≤25% | 16%,15% | Qualified |
Heat shrinkage | ≤0.5% | ≤0.48% | Qualified |
Inflation rate of wetlands | ≤0.25% | 0.19%,0.2% | Qualified |
Frost resistance | After 25 times of freeze thawing, no cracks and lamination should occur | no cracks and lamination should occur | Qualified |
W/(m.k)Thermal conductivity | D1.3 | ≤0.3 | 0.193 | Qualified |
Incombustibility | grade A1 | grade A1 | Qualified |
3 | Shape and size of the deviation | (mm)length | ±3 | -2~+3 | Qualified |
(mm)width | 3 | -2~+2 | Qualified |
(mm)thickness | ±0.4 | -0.2~+0.2 | Qualified |
(%)thickness uniformity | ≤4 | 3.3 | Qualified |
(mm)Edge straightness | ≤3 | 1.5 | Qualified |
(mm)vertical edge | ≤3 | 1.5 | Qualified |
(mm)Diagonal difference | ≤5 | 0.3 | Qualified |
(mm)Flatness | ≤2 | 0.3 | |
4 | Appearance quality | positive surface | No cracks, separate layer, peeling | No cracks, separate layer, peeling | Qualified |
Back surface | No cracks, separate layer, peeling | No cracks, separate layer, peeling | Qualified |
fall side | Fall Side depth≤5mm | No falling side | Qualified |
fall corner | 1Length ≤20mm width≤20mm And 1 piece board≤1 | No falling corner | Qualified |
Application:
mainly used in the interior wall, partition wall,fie wall,ceiling, exterior wall aluminum-plastic liner plate,decorative board,bathroom,kitchen and other wet places;wall board,roof board,door,cabinet,instead of wood sheet,and exterior wall decorative board,outdoor insulation board,outdoor drying hang board,sound insulation board,large plate for floor,square sheet,floor slab for steel structure, facility decoration sheet for subway,tunnel decoration board.movable floor,desktop boards,billboards,articles counters.
