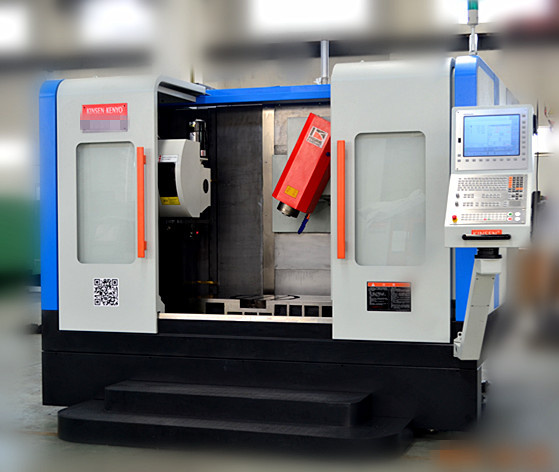

Five Axis CNC Milling Machine Tool (VS5080)
| Price: |
US $ 1-250000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |

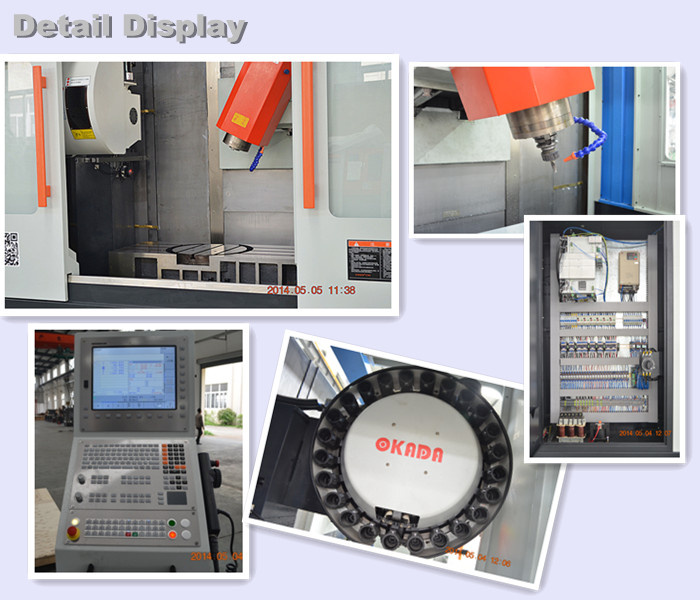

FeatureVS5080/VS50100/VS80160/VS80180
1.Five-axis, wide rage of processing workpieces, high science and technology, high precision
2.Using movable column structure, high sustained torque, realizing continuously processing with high precision.
3.Automatic lubrication system, 360°rotary work table, very short tool changing time
4.Full cover, high positioning accuracy, optional closed-loop control| Item | VS5080 |
| Table size(mm) | 500×1200 |
| X/Y/Z travel(mm) | 800×500×500 |
| Diameter of in NC rotay table(C axis) | 250 |
| Rotary table hydraulic clamping force | ≥1000NM |
| Swivel milling head hydraulic clamping force | ≥1000NM |
| Max.table loading(Kg) | 600 |
| Distance from spindle nose to table surface(mm) | 140---640 |
| Spindle type | BT40 |
| Spindle diameter | 170mm |
| Spindle swivel angle | ±110° |
| Tool magazine type | BT40 |
| Tool magazine capacity | 24 |
| Spindle speed(r/min) | 9000 |
| Spindle braking time | ≤4S |
| Spindle power(kw) | 12 |
| Ball screw | HIWIN |
| Coupling | KTR |
| Spindle | Hesheng |
| Ballscrew support bearing | NSK |
| Positioning accuracy(mm) | X:0.01 |
| Y:0.01 |
| Z:0.01 |
| C axis:0.002°C |
| B axis:0.002°C |
| Repeatability(mm) | X:0.006 |
| Y:0.006 |
| Z:0.006 |
| C axis:0.0015° |
| B axis:0.0015° |
| Parallelism between X axis and B axis(swivel to any angle) | ≤0.02 |
| Rapid Traverse speed(mm/min) | ≥15000mm/min |
| Cutting federate | ≥1--8000mm/min |
| Machine cover | totally closed
|
| Lubricantion system | automatic
|
| Cooling system | Constant temperature oil cooled |
| Gross weight(Ton) | 8 |
| CNC system | Heidenhain/siemens840D/8055/GSk25i |
| Full-closed loop control |
| Chip conveyor | Screw/chain plate |
Main Export Market
Canada, the U. S. A., Italy, France, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U. A. E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and so on
Our factory
Nanjing Kenyo Precision Machine Manufacture Co., Ltd. is a high-tech precision machien manufacture company with almost 20 years of experience, specializing in CNC vertical / horizontal machine center, CNC five axis control machine center, CNC milling machine, CNC vertical milling machine, CNC gantry milling machine, CNC lathe / CNC turning machine, CNC controller industrial robot arms, 3D printer machine. Moreover, we also process car parts with our machine for many famous car manufacturer.
| Prod Model: |
VS5080 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CNC Machinig Lathe: |
5 Axis CNC Machine Center |
| Place Of Origin: |
China (Mainland) |
| CNC Or Not: |
CNC |
| Travel: |
800*500*500 |
| Max. Swing Diameter: |
450mm |
| Weight: |
8t |
| Automatic Grade: |
Automatic |
| Guarantee: |
One Year Guarantee |
| Spindle Speed: |
30-3500 |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Mid-Range CNC Machine Tools |
| Processing Precision: |
0.01 |
Nanjing Kenyo Precision Machine Manufacture Co., Ltd is a high-tech enterprise, supplying high-end CNC machines in the last few years. The company locates in Guabu CNC industrial park, LUHE district, Nanjing City, Jiangsu Province, China, and consists of eco-friendly production workshops, R&D center, worker apartment buildings, and modern office buildings. The company occupies 45 acres land, including 16000 sqm for manufacturing area.
Nanjing Kenyo company being dedicated in innovative researches and development, specializes in manufacturing CNC Machine, CNC Milling Machine, CNC Machining Center, CNC Lathe, CNC Turning Machine, 5 Axis CNC Machining Center, Industrial Robot Arms...
In 2011, Nanjing Kenyo enterprise established engineering R&D center for Nanjing Municipal Vertical-Horizontal Hybrid Machining Center, as well as Jiangsu Province post-graduates' workstation in enterprises by cooperating with a very famous science and technology univerisity in Nanjing named "Nanjing Southeast University".
In 2012, the enterprise acquired ISO9001 issued by CQC, Jiangsu Province Export Product Quality Assurance Certificate, and CE certificate.
On January13, 2015, Nanjing Kenyo enterprise successfully listed in Beijing stock exchange"New Three Borad", and the security code is"831883".
Keeping building high-quality brand, Nanjing Kenyo enterprise owns a research team, who has core technology and independent knowledge. In the year of 2011, VS1580 five- axis machining center was awarded with the title "Jiangsu Province First key Product". In 2012, VS855 column-moving five-axis machining center was listed in "Nanjing Science and Technology Project".
Nanjing Kenyo enterprise sets sales offices in Beijing, Tianjin, Shanghai, Chongqing, Guangzhou these five very developed cities in China, and the CNC machines are used in military field, aviation field, aerospace field and wind energy field. In addition, Nanjing Kenyo enterprise has exported machines to foreign markets, such as America, Austrilia, Russia, Indonesia, Middle East countries, Dubai, Philippines, New Zealand, Africa, Turkey, and other countries in Europe.
Each year, we take part in "Beijing / Shanghai International Machine Tool Exhibition", which is the most important machine exhibition in China in the whole year. Moreover, we take part in certain global machine exhibitions, such as the machine exibition held in Indonesia, since we have office there, and we export our CNC machines mainly to markets in Indonesia.
Since eatablished, Nanjing Kenyo enterprise adheres to the scientific development concept, and gains its own concept "Business-first, people-oriented, credit-based" during its development. For the time being, Nanjing Kenyo Precision Machine Manufacture Co., Ltd owns 29 patents and 2 software copyrights. We keeps supplying high quality CNC machines, and we offer very competitive factory. More and more, we have a very efficient after service group, who will answer your questions promptly and help solve your problems in 48 hours. If our customers need very professional technicial support, we can send our engineers to help them solve problems.
If you have more questions, please feel free to ask. We would be very glad to serve you.
