Fixed Ultrasonic Flow Meter
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Specifications
| Prod Model: |
UF-100F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Repeatability: |
0.2% |
| Velocity: |
0.03 - ± 32 M/S |
| Power Supply: |
AC: 220V DC: 8~36 |
| Sensor: |
Clamp-on/External |
| Type: |
Volume Type Flow Meter |
| Accuracy: |
?à0.2-0.5% |
| Measuring Media: |
Liquid |
| Size: |
Dn10~Dn6000 |
Product Description

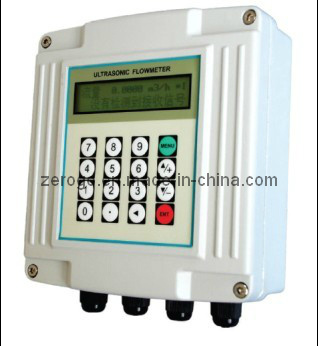

Fixed Ultrasonic flow meter
1. Accuracy: Better than 1%
2. Repeatability: 0.2%
3. Certifiacte: EMC and LVD Compliance certificat
4. RS485, RS232, 4-20mA
5. Measure range: DN15---DN6000
|
The specifications of Fixed Ultrasonic flow meter |
|
Measuring Principle |
Ultrasonic wave transmission time difference principle, dual CPU working in parallel, 4-byte floating-point operations |
|
Accuracy |
Better than ± 1.0 % |
|
Repeatability |
0.2% |
|
Velocity |
0.03-± 32 m/s |
|
Measurement Period |
0.5S |
|
Display |
Backlit LCD can display 2x20 letters instantaneous flow, cumulative flow, velocity, time, calories and other data signal output at the same time etc. |
|
Keypad |
4x4-key membrane keypad with tactile feedback |
|
Input |
Can input two current signals(such as: temperature, pressure, liquid level, etc. signals ) in order to achieve heat measurements or a dual-purpose machine |
|
Output |
Electric current signal 4-20mA or 0-20mA, etc. RS 485 Impedance 0 - 1K, accuracy 0.1% |
|
Isolated OCT output |
For frequency output (0-9, 999Hz) |
|
Internal Alarm (Buzzer) |
User programmable |
|
External Alarm Driver |
Alarm signal can be transmitted to Relay or OCT
output terminals to drive an externa alarm. |
|
Data Interface |
RS-232 serial port. |
|
Power |
AC: 220V , DC: 8~36VDC or AC7-30V |
|
Power Consumption |
< 2W |
|
Work time |
Continuous |
|
Environment Temperature |
-30-80 Degrees Celsius |
|
Environment Humidity |
85% RH |
Product Features:
Product Features |
1. Bi-directional measurement, can measure the positive and negative, the net cumulative flow |
|
2. Automatic memory before 64 days prior 64 months, the first 5 years of light product flow rate |
|
3. Automatic memory 64 days before the working status of flow met er |
|
4. Auto memory the former 64 times more time and power flows can be manual or automatic inspection in order to reduce the flow losses |
|
5. Programmable volume (quantitative) Controller |
|
6. Configure GPRS / GSM module enables remote monitoring and control |
Xiuyan precision instrument factory was founded in 1958 October incorporated the collective enterprises. Company is located in "city of jade " -- Xiuyan, picturesque scenery, pleasant environment, convenient transportation.
Enterprise covers an area of 12000 square meters, construction area of 3000 square meters, the registered capital of 1260000 Yuan, the existing staff of 86 people, including 16 technical staff, management staff of 10 people, technical secondary school or above the staff accounted for the total number of employees 78%. Company has strong technical strength, perfect technology, scientific management, enterprises manufacture the main products include Electromagnetic flowmeter, Target flowmeter, Ultrasonic flowmeter, Ultrasonic level meter, Magnetic level meter, Turbine flowmeter, Vortex flowmeter, ect. Enterprise product marketing the whole country, has been used in petroleum, chemical, power, papermaking, brewing, pharmaceutical ect. field of the automatic control system of industrial processes, especially in the petroleum, chemical industry to create own brand. Enterprises has actively expanded the overseas market, has a variety of instruments are exported to Malaysia, Italy, Australia, Zambia, Turkey, America, Brazil, and other countries. At present, the enterprise has passed ISO9001--2000 international quality system certification, report to the Liaoning provincial Science and Technology Agency awarded the High-tech Enterprises. Company for three consecutive years was awarded the "Civilized Unit" title by the Anshan municipal Party committee and municipal government.
Since the company was founded more than 40 years, the joint efforts of leaders and staff, base on the entrepreneurial spirit of " rigorous, pragmatic, efficient, and trustworthy ", adhere to the " quality of products, service first for the customer ", the pursuit of continuous innovation and development, to let the user rest assured, comfortable, happy.
