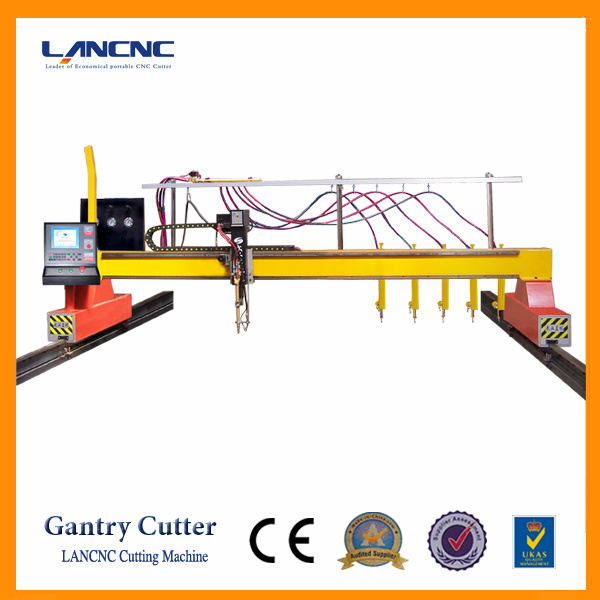

Flame cutting machine
Features
Its cross beam length is from 2m to 3m, it is most economical type in all gantry cutters. Quantity of cutting torch and automatic height adjustment device is optional according to users' requirements. Also it can be configured with flame and plasma cutting, with USB port.
Application
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
|
Cross Beam Length (X axis) |
3m |
|
Longitudinal Rail Length(Y axis) |
6m (Rail can be lengthened according to user' s demand) |
|
Effective Cutting Width (X axis) |
2.2m |
|
Effective Cutting Length (Y axis) |
4.9m |
|
Cutting Mode |
Flame only/Plasma only/Flame and Plasma |
|
Drive Mode |
Bilateral |
|
Drive Method |
Linear guide for X and Rack and pinion for Y axes |
|
Flame Cutting Thickness |
5-200mm |
|
Plasma Cutting Thickness |
1-60mm (according to the specification of plasma power source) |
|
Cutting Speed |
0-6500mm per minute |
|
Moving Precision |
0.01mm per step |
|
Power Source(option) |
220V 50/60Hz 500-1000W |
|
Nesting Software (option) |
INTERGNPS, FASTCAM |
|
Cutting Gas |
Acetylene/Propane/LPG |
|
Plasma Gas |
Pressed air/Oxygen/N2 |
|
Marking Tool |
Yes |
Torch Height Controller (AUTO) |
CHC600 |
Capacitive height control for flame cutting |
|
PHC330 |
Arc voltage height control for plasma cutting |
Lansun specializes in researching, developping and selling ZLQ- series CNC cutting machines for 20 years. We have CNC portable, cantilever, gantry, table type and Pipe profile cutting machines.
Our mahcines are extremely easy to operate; With High rate of costs&very favourable price, our machines have been exported to Germany, England, Russia and all over the world!
