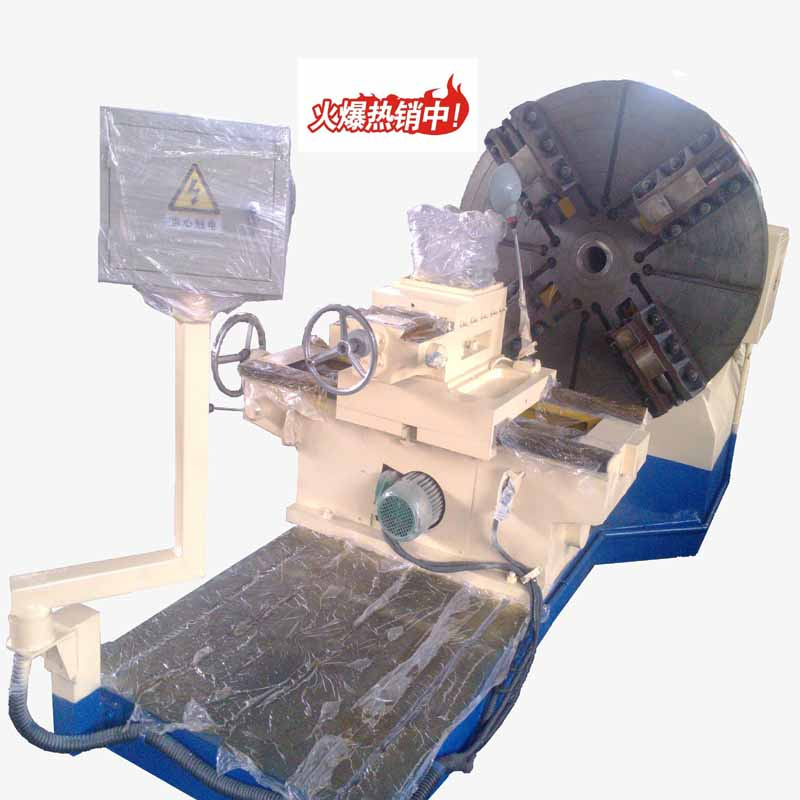

Flange Normal Floor Machine Tool (C6016)
Price: |
US $ 23000-25000set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1set |
Pay Type: |
L/C,T/T |
Product Specifications
Prod Model: |
ST-C6016 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max. Swing Diameter: |
1600mm |
Max. Length Of Processing: |
400mm |
Max. Weight Of Machining: |
3000kg |
Delivery Time: |
by Customer Require |
Type: |
Floor Lathe |
Processing Accessory: |
Chuck CNC Lathe |
Tool Holder: |
Single-tool Holder CNC Lathe |
Power Source: |
Electric |
Automatic Grade: |
Semiautomatic |
Setting Mode: |
Floor-type |
Precision: |
Precision |
Controlling Mode: |
Hand / Auto |
Product Description
It is widely applied to many industries,such as rubber machinery, textile machinery,chemical machinery, automobile manufacturing ,tire mould machinery and so on. It is mostly used to process various flanges, valves, pressure vessels, boilers,tire moulds,plastic moulds, boilers and other workpieces.
Specifications:
Item | ST-C6016 | Unit |
|
|
Type of machine | Facing Lathe |
|
|
Max. swing diameter of workpiece | 1600 | mm |
|
The cross-feed travel of slide carriage | 800 | mm |
|
The longitude-feed travel of slide carriage | 400 | mm |
|
Max. length of workpiece | 400 | mm |
|
Max. weight of workpiece | 3000 | kg |
|
Chuck diameter | 1200 | mm |
|
The quantity of the steel jaws | 4 | set |
|
Number of spindle speeds | 6 | level |
|
Spindle diameter | 190 | mm |
|
Spindle bore | 50 | mm |
|
Cutter bar section size | 50×50 | mm |
|
Spindle speed range | 21~216 | r/min |
|
Power of main motor | 11 | KW |
|
Power of feed motor | 1.1 | KW |
|
Adjusting mode of feed motor | stepless |
|
|
Machine power supply | 380v,50HZ,3P |
|
Overall dimensions | 2800× 2000× 1800 | mm |
|
Lathe weight | about 5 | t |
|
Standard configuration:1 headstock, 1piece of 4-jaw(350 mm-long per jaw) chuck Φ 1200mm, 1 piece of chuck wrench, 1 bed(1.36m-long), 1 base, 1 main motor(11kw), 1 feed motor. |
|
Optional configuration: Extended bed and floor,chuckΦ1400mm,1600mm and 500mm-long jaws. |
|
Specific Notice: Customers can customize the lathes according to their workpieces. |
|
Qingdao Shengtuo Machine Tool Co., Ltd have 20s manufacture, install and processing experences. It is a senior and professional manufacturer and exporter of large-diameter surfacing lathes of ST-C series with a leading status in machinery industry in China. At present, our products mainly include heavy duty face lathe machines, horizontal lathe machines, CNC lathe machines, vertical lathe machines, roll/rotor turning lathe and so on.
With the advantages in high technical content, rational structure, strong rigidity, superior performance and energy-efficient, the machine tools produced by our company has been sold well at home and abroad, especially exported to UK, Southeast Asia, India, North America, South America and Middle East. And we enjoy a high reputation from customers.
These machine tools are widely applied to many industries, such as rubber machinery, tire mould machinery, mine machinery, wheel mould machinery, automobile manufacture, aviation, shipbuilding, textile machinery, chemical machinery and so on. They are mostly suitable for cutting and processing various flanges, roller, pressure vessels, tire moulds, plastic moulds, big drums, bearings, shafts, boilers and other workpieces.
Our markets and clients more and more per year, so our performance is growing year by year.
We always uphold the principle "Honesty foremost, Quality fisrt". After years of efforts, we successfully passed the ISO9001 quality system certification and CE certification. And we have than 10 national patent products, and achieved many certificates of honor: High-tech enterprises in Shandong Province, China 3.15 Consumer Satisfaction Unit, AAA grade credit unit, Contract keeping and Credit First Company.
We`ll always continually provide high quality machine tools and services to repay the society.
