Flat Bed Type CNC Lathe Machine Tool
Product Specifications
| Prod Model: |
CKD6163-1M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Load: |
2000kg |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Open-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
Product Description

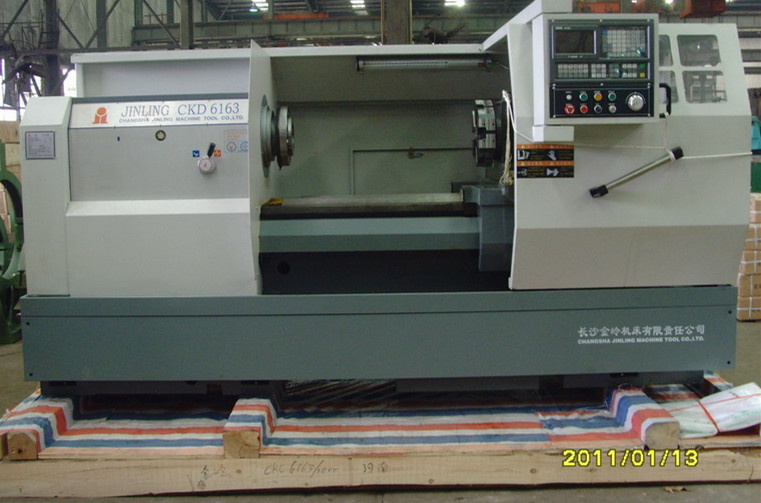

CNC lathe machine tool CKC6163-1000MM
Center height: 315mm
Max. Swing over bed: 630mm
Max. Swing over carriage: 310mm
Max. Part length: 1000mm
Max. Turning length: 850mm
Spindle bore taper: 105mm, 130mm optional
Number of steps of spindle speed: 18 steps manual change
Range of spindle speed: 13-1000 r/min
Main motor power: 11 KW
Quill diameter: 90mm
Quill taper: MT5
Quill travel: 260mm
Transverse travel of tailstock: +/-15mm
Rapid traverse: X: 4000, Z: 8000mm
X travel: 370mm/min
Z travel: 850mm
Size of tool shank: 32*32
Positioning accuracy: X: 0.03 Z: 0.04
Repeatability: X: 0.012, Z: 0.016mm
Roundness: 0.005MM
Flatness: 0.025mm
Surface roughness: Ra3.2
CNC Contral system: Siemens/ FANUC, by customers' request
| Unit | Unit | Model |
| CKD6163C/1500mm |
| Center height | mm | 315 |
| Max. swing over bed | mm | 630 |
| Max. swing over cross slide | mm | 320 |
| Max. part length | mm | 1500 |
| Max. turning length (saddle stroke) | mm | 1350 |
| Spindle bore diameter | mm | 105 |
| Spindle bore taper |
| Metric 120 |
| Number of steps of spindle speeds | steps | 18 steps / manual change |
| Spindle speed range | rpm | 13-1000 |
| Spindle bore taper |
| Metric 120 |
| Main motor power | kw | 11 |
| Quill diameter | mm | 90 |
| Quill travel | mm | 260 |
| Quill taper |
| MT5 |
| Transverse travel of quill | mm | ± 15 |
| Rapid traverse rate | mm/min | X: 4000 Z: 8000 |
| Size of tool rod | mm× mm | 32× 32 |
| Positioning accuracy | mm | X: 0.03, Z: 0.04 |
| Repeatability | mm | X: 0.012 Z: 0.016 |
| Roundness | mm | 0.005 |
| Flatness | mm | 0.025/300(only for concave) |
| Surface roughness | mm | Ra3.2 |
Dimensions | Length | mm | 3620 |
| Width | mm | 1750 |
| Height | mm | 1750 |
| Net weight |
| 4000 |
