Large Swing CNC Lathe Machine Tool
Product Specifications
| Prod Model: |
CKC61103-2000mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Loading: |
2000kg |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Performance Classification: |
Economical CNC Machine Tools |
| Numerical Control: |
NC |
| Movement Method: |
Linear Control |
| Control Method: |
Semi-Closed Loop Control |
Product Description

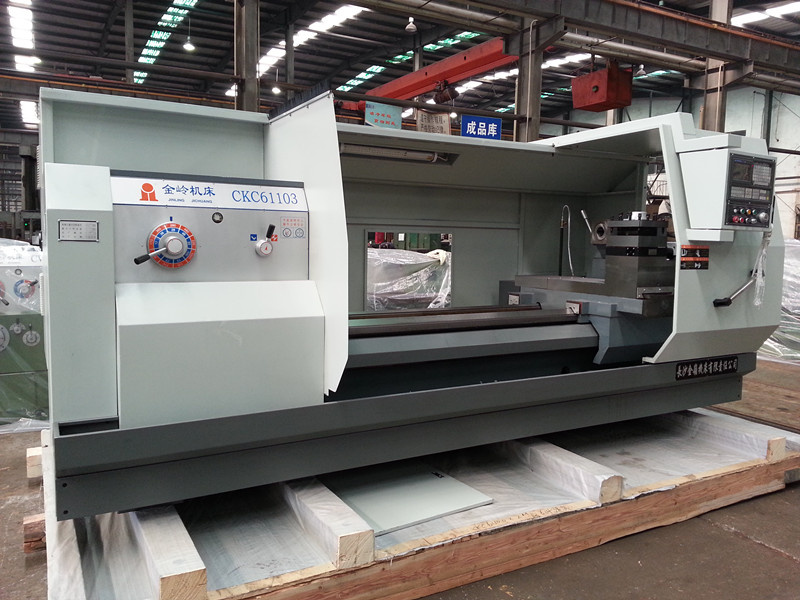

Large swing CNC lathe machine tool CKC61103-2000MM
Center height: 515mm
Max swing over bed: 1030mm
Max swing over carriage: 640mm
Max. Part length: 2000mm
Max turning length(Saddle stroke): 1850mm
Bed width: 610mm
Number of steps of spindle speeds: 18 steps manual change
Range of spindle speeds: 13-1000r/min
Main motor power: 11KW
Quill diameter: 120mm
Quill taper: MT6
Transverse travel of tailstock: +/-15mm
X travel: 580mm
Z travel: 1850mm
Size of tool rod: 32*32mm
Positioning accuracy: X: 0.03mm Z: 0.06
Repeatablity: X: 0.012, Z: 0.025mm
Roundness: 0.01mm
Flatness: 0.025mm/300(Length of part)
Surface ruoughness: Ra3.2
Standard CNC System: Siemens/ FANUC or according to customers' request
|
Items |
Unit |
Model |
|
CKC61103 |
Capacity |
Center height |
mm |
515 |
|
Swing over bed |
mm |
1030 |
|
Swing over cross slide |
mm |
640 |
|
Max. part length |
mm |
2000 |
|
Max. turning length |
mm |
1850 |
Spindle |
Spindle bore diameter |
mm |
105, 130 optional |
|
Spindle bore taper |
|
Metric 120 |
|
Number of steps of spindle speeds |
steps |
18 steps manual change |
|
Spindle speed range |
rpm |
13-1000 |
|
Main motor power |
kw |
11 |
Tailstock |
Quill diameter |
mm |
120 |
|
Quill travel |
mm |
260 |
|
Quill taper |
|
MT5 |
|
Transverse travel of tailstock |
mm |
±15 |
Turret |
Rapid traverse |
mm/min |
X: 4000 Z: 8000 |
|
Number of tool stations |
|
4 |
|
Size of tool rod |
mm×mm |
32×32 |
|
X travel |
mm |
580 |
|
Z travel |
mm |
1850 |
Accuracy |
Positioning accuracy |
mm |
X: 0.03,
Z: 0.06 |
|
Repeatability |
mm |
X: 0.012,
Z:0.025 |
Working
Accuracy |
Roundness |
mm |
0.01 |
|
Flatness |
mm |
0.025/300mm (only for concave) |
|
Surface roughness |
mm |
Ra3.2 |
Other |
CNC System |
|
SIEMENS 802C
FANUC Oi Mate-TD |
|
Dimensions |
Length |
mm |
4130 |
|
Width |
mm |
1950 |
|
Height |
mm |
2000 |
