Product Specifications
| Prod Model: |
PU3908BW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
10va |
| No-Load Loss: |
<1W |
| Voltage Regulation: |
<30% |
| Ambient Environment Temperature Ta: |
50 |
| Mounting Height: |
23mm |
| Weight: |
250g |
| Application: |
Instrument |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Certification: |
CE RoHS |
| Brand: |
Yhdc |
Product Description

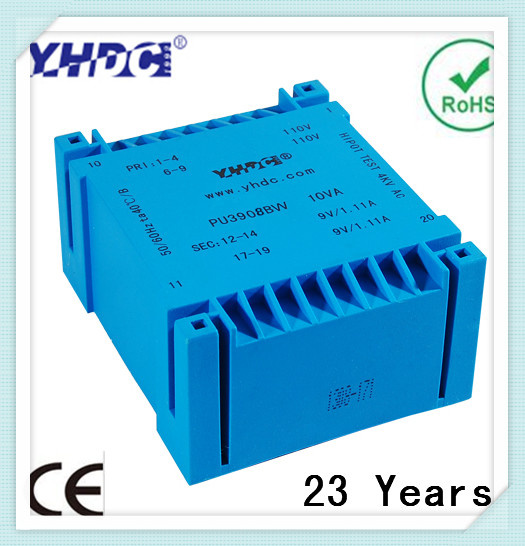

Model:PU3908BW Power: 10VA
Characteristics:
Flat type transformer is designed as double-coil configuration,standard
type with double-way input and double-way output,the same transformer can
obtain different combinations of two kinds of 220V or 110V input voltage and
different voltage by changing connection of input and output coils.
Safety indicators:(Executive standards GB19212); Electric strength is 4000V/1min;
Flame retardant properties accord with UL94-Vo;
Against electric shock: seven times the rated input voltage;
Wiring method:(please read carefully before use)
Input:For 220V power voltage:pin 4 and 9 short,pin 1 and 6 input 220V.
For 110V power voltage:pin 1,9 and 4,6 short,then pin 1 and 4 input 110V.
Output:For single-way:pin 14 and 19 short,pin 12 and 17 output withtwo times voltage and one time
current.pin 14,
17 and 12,19 short,pin 12 and 17 output with one time voltage and two times current.
For double-way:pin 12,14 and pin 17,19 each output with one time voltage and one time current.
Outline size diagram: (in mm,BW-type embedding) (special note: due to the flat type transformer
internal is a frame structure,
the standard input,output winding and pin definition, please contact our company technology
department)
PU3908BW is just one model, for other parameters and models, please feel free to contact me.
