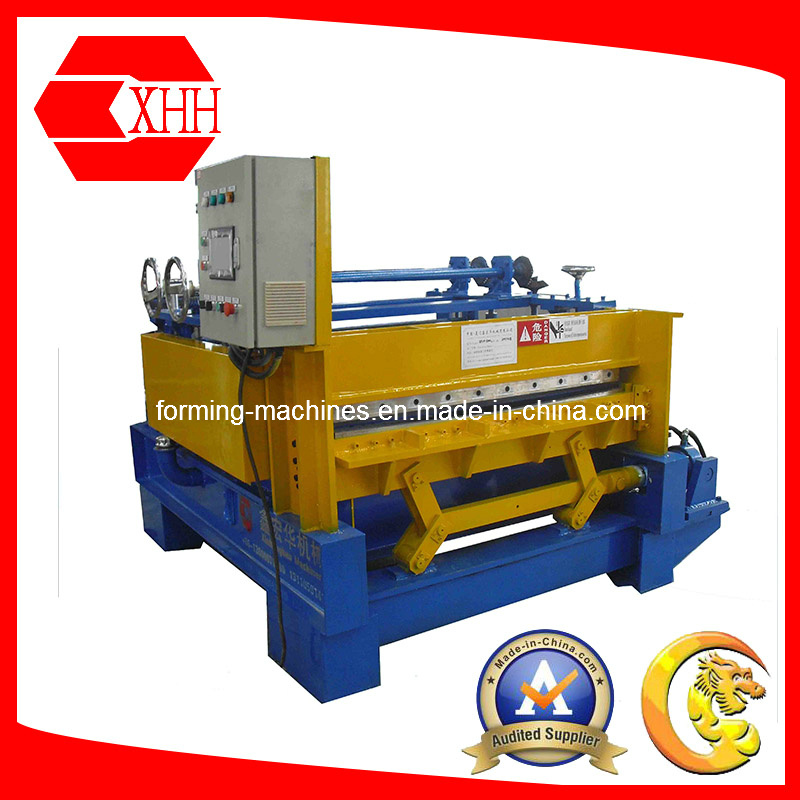

Flattening Machine with Automatics Slitting & Cutting Device (FCS2.0-1300)
Product Specifications
| Prod Model: |
FCS2.0-1300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Fcs2.0-1300 |
| Brand Name: |
Xhh |
| Hydraulic Motor Power: |
7.5kw |
| Working Speed: |
10-16m/Min |
| Dimension: |
2500mm*2300mm*1500mm |
| Weight: |
3500kgs |
| Model Number: |
Zp2.0-1300 |
| Max.Width: |
1300mm,1500mm |
| Max.Thickness: |
2.0mm, 2.5mm, 3.0mm |
| Export Markets: |
Global |
| Usage: |
Sheet |
| Type: |
Matel Panel Straighting Machine |
Product Description
FCS2.0-1300 Straightening Machine's detail informations' are as follows:
(1)Working Speed: 10-16m/min
(2)Max. Thickness: 2.0mm
(3)Max. Width: 1300mm
Main Accessories:
(1)Flattening Device;
(2)Slitting Device;
(3)Cutting Device;
(4)Hydraulic Motor Device;
1. | Dimension | 2300*2200*1500mm |
| 2. | Weight | 3500KGS |
| 3. | Hydraulic Motor Power | 7.5KW |
| 4. | Voltage | 380V/50HZ/3PH |
| 5. | Working Speed | 10-16m/min |
| 6. | Max. Thickness | 2.0mm, 2.5mm, 2.8mm |
| 7. | Max. Width | 1300mm, 1500mm |
Established in 2004, Xiamen Xinhonghua Machinery Co., Ltd which is load in nice island city of Xiamen is specialized in manufacturing roll forming machines with hydraulic systems and PLC computer controlling systems. Our company has advanced technologies and great experience in the R&D, manufacture, installation, testing and training.
Our company can supply a wide range of Al-Mg-Mn panel forming machines, standing seam roofing machines, C/Z shaped Auto full adjustment purline machines, tapered-shaped standing seam roofing machines, colored roof panel machines, glazed tile machines, shaft forming machines, rolling door machines, flattening machine with slitting and cutting device, floor decking machines, highway guardrail machines, auto adjustment curving machine and hydraulic bending machines.
We enjoy a good reputation with the enterprise spirit of "Innovation chases the development; Management earns benefit". We insist on the service philosophy of "Satisfying our customers' needs".
Our products sell well at home, and are exported to clients in the Philippines, Indonesia, India, Malaysia, Ameria, Dubai, Singapore, Brazil, Turkey, Canada, Africa, Tailand, Columbia, the Middle East and other countries and regions.
