Product Specifications
| Prod Model: |
FCS2.0-1300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Speed: |
8-12m/Min |
| Thickness: |
1.0-3.0mm |
| Max. Feeding Width: |
1300mm |
| Type: |
Slitting Machine |
Product Description

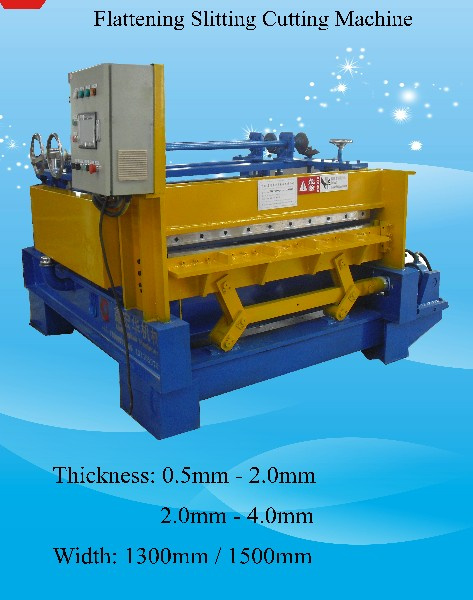

FCS4.0-1300 Flattening Machine With Cutting Device
Main Accessories:
(1) Main machine;
(2) Automatic Up And Down Table For Feeding Device;
(3) Flattening Device;
(4) Hydraulic Motor System;
(5) PLC Computer Controlling System With Touching Screen( Brand: Shineder for PLC, touching screen, encorder and frequency changer );
(6) Hydraulic Cutting Device;
(7) Receiving Table( Length: 2500mm);
(8) Tools;
(8)Operation Manual in English;
Main Technic Data:
Working Speed: 8-12m/min;
Max. Thickness: 3.0mm;
Max. Width: 1300mm;
Usage: Fattening and cutting the metal materials: Carbon steel Hot rolled coils;
The buyer need provide enough metal materials
For testing machine.
Feature:
Adopts flattening device, cutting device, PLC computer controlling system and hydraulic motor, easily and conveniently to operate;
Suitable to flatten and cut the colored prepainted sheets, galvanized steels, Aluminum sheets, etc.
Established in 2004, Xiamen Xinhonghua Machinery Co., Ltd which is load in nice island city of Xiamen is specialized in manufacturing roll forming machines with hydraulic systems and PLC computer controlling systems. Our company has advanced technologies and great experience in the R&D, manufacture, installation, testing and training.
Our company can supply a wide range of Al-Mg-Mn panel forming machines, standing seam roofing machines, C/Z shaped Auto full adjustment purline machines, tapered-shaped standing seam roofing machines, colored roof panel machines, glazed tile machines, shaft forming machines, rolling door machines, flattening machine with slitting and cutting device, floor decking machines, highway guardrail machines, auto adjustment curving machine and hydraulic bending machines.
We enjoy a good reputation with the enterprise spirit of "Innovation chases the development; Management earns benefit". We insist on the service philosophy of "Satisfying our customers' needs".
Our products sell well at home, and are exported to clients in the Philippines, Indonesia, India, Malaysia, Ameria, Dubai, Singapore, Brazil, Turkey, Canada, Africa, Tailand, Columbia, the Middle East and other countries and regions.
