Product Specifications
| Prod Model: |
HZ-009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Concrete Test Machine Usage: |
Compression Testing Machine |
| Compression Testing Machine Power: |
Electronic |
| Max Load: |
3000kn |
| Test Force Resolution: |
0.03kn |
| Hydraulic Pump Rated Pressure: |
40mpa |
| Upper And Lower Bearing Plate Size: |
370*370mm, 500*500mm |
| Piston Stroke: |
50mm, 100mm |
| Test Force Showed The Relative Error: |
≤indicating Value±1% |
| Test Force Measuring Range: |
4%-100%Fs |
| Piston Diameter: |
250mm, 310mm |
| Type: |
Universal Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
Max Load:3000kn |
| Accuracy Grade: |
0.01 N |
| Load Way: |
Hydraulic Loading |
| Display: |
Computer Display |
Product Description

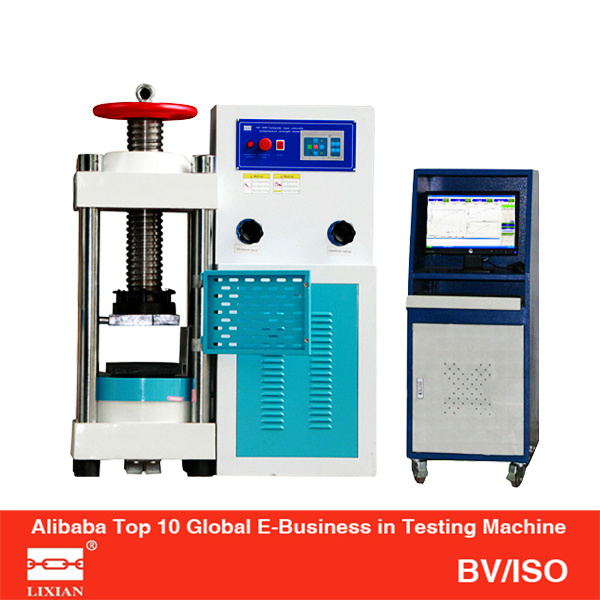

2000KN/3000KN Full Automatic Concrete Compression Testing Machine Hz-009
Introduction:
The testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test, also used to test the compressive performance of other materials.
Spatial adjustment method:
Electric lift
Hydraulic System:
The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve, Control direction and opening of the servo valve, to control the flow into the cylinder, achieve constant test force control.
Control system:
1. System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability. Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.
2. System has the following functions:
3. Closed-loop control with force;
4. Can achieved constant loading rate or constant stress loading rate;
5. Adopt computer for electronic measurement, automatic test;
6. Computer automatically calculates the results and print reports. (picture 1 picture 2)
7. Test reports can be to self-design and exported to Excel (picture 3)
Safety protection device:
When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.
| Max load | 2000kN | 3000kN |
| Test force measuring range | 4%-100%FS |
| Test Force showed the relative error | ≤indicating value±1% | <±1% |
| Test Force Resolution | 0.03kN | 0.03kN |
| Hydraulic pump rated pressure | 40MPa | |
| Upper and lower bearing plate size | 370×370mm | 500×500mm |
| Maximum distance between the upper and lower plate | 330mm | 500mm |
| Piston diameter | φ250mm | φ310mm |
| Piston stroke | 50mm | 100mm |
| Motor Power | 0.77 kW | 1.1kW |
| Outside dimension (l*w*h) | 640×720×1500 mm | 780×720×1950 mm |
| Weight | 2000kg | 2500kg |
