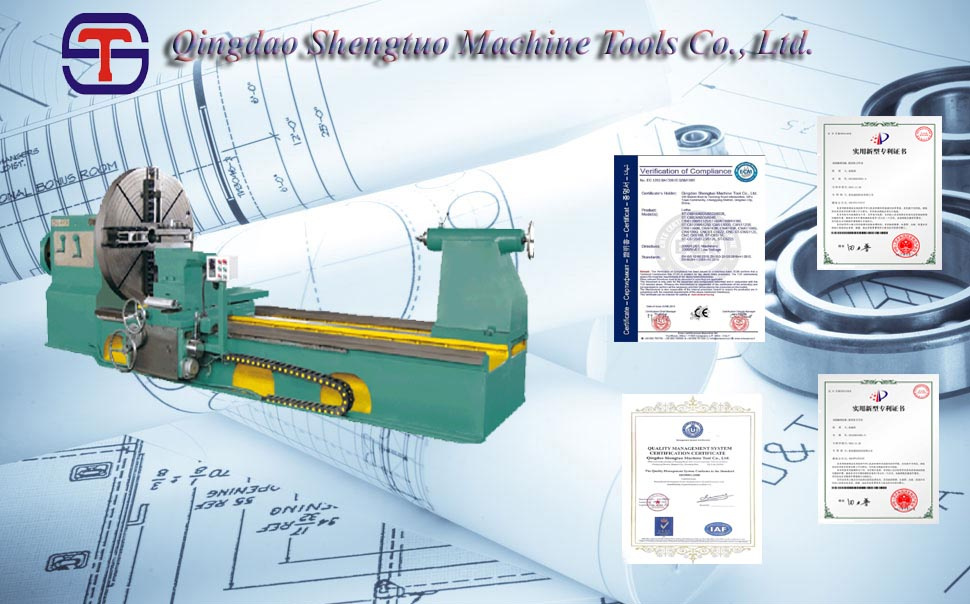

Floor Bench Horizontal Lathe Machine Tool
Price: |
US $ 35000-40000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Specifications
Prod Model: |
ST-CW61160 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max. Swing Diameter: |
1600mm |
Color: |
by Customer Require |
Style: |
Horizontal Lathe |
Length: |
by Customer Require |
Type: |
Horizontal Lathe |
Processing Accessory: |
Chuck CNC Lathe |
Tool Holder: |
Single-tool Holder CNC Lathe |
Power Source: |
Electric |
Controlling Mode: |
Artificial |
Automatic Grade: |
Semiautomatic |
Setting Mode: |
Floor-type |
Precision: |
Precision |
Product Description
It is widely applied to many industries,such as rubber machinery,mine machinery textile machinery,chemical machinery ,automobile manufacturing and so on.
And it is mostly used to process large-diameter tire moulds ,large-diameter flanges, various valves and pipelines, pressure vessels, screw propeller,steamer machine accessories, plastic moulds, shafts, rotary drums and other workpieces.
Specifications:
Item | ST-CW61160 | Unit |
Max. swing diameter of workpiece | 1600 | mm |
Max. swing diameter of workpiece over bed | 1200 | mm |
Max. travel of tool post(cross) | 600 | mm |
Max. travel of tool post(longitudinal) | 1500 | mm |
Max. length of workpiece | 1500 | mm |
Max. weight of workpiece | 4000 | kg |
Chuck diameter | 1200 | mm |
The quantity of the chunk jaws | 4 | set |
Number of spindle speeds | 6 | level |
Guideway width | 850 | mm |
Power of main motor | 11 | KW |
Power of feed motor:1.1kw | 1.1 | KW |
Speed adjusting mode of feed motor | frequency control |
|
Taper type of tailstock quill | morse taper 6 |
Machine power supply | 380v,50HZ,3P |
Overall dimensions | 4200×2000×2100 | mm |
Lathe weight | 12 | t |
Standard configuration:1set of headstock,1 piece of chuck Φ 1200mm equiped with 4 jaws (350mm-long per jaw)1 piece of chuck wrench, 1 main motor(11kw),1 feed motor, a tailstock. |
Optional Configuration:Extended bed,one chuck frome chucks Φ1200mm,1600mm, one set of steel jaws from 500mm-long or 800mm-long jaws ,1 CNC system,Digital display system. |
Specific Notice:Customers can customize the lathes according to their workpieces.(Based on changing configuration). |
Qingdao Shengtuo Machine Tool Co., Ltd have 20s manufacture, install and processing experences. It is a senior and professional manufacturer and exporter of large-diameter surfacing lathes of ST-C series with a leading status in machinery industry in China. At present, our products mainly include heavy duty face lathe machines, horizontal lathe machines, CNC lathe machines, vertical lathe machines, roll/rotor turning lathe and so on.
With the advantages in high technical content, rational structure, strong rigidity, superior performance and energy-efficient, the machine tools produced by our company has been sold well at home and abroad, especially exported to UK, Southeast Asia, India, North America, South America and Middle East. And we enjoy a high reputation from customers.
These machine tools are widely applied to many industries, such as rubber machinery, tire mould machinery, mine machinery, wheel mould machinery, automobile manufacture, aviation, shipbuilding, textile machinery, chemical machinery and so on. They are mostly suitable for cutting and processing various flanges, roller, pressure vessels, tire moulds, plastic moulds, big drums, bearings, shafts, boilers and other workpieces.
Our markets and clients more and more per year, so our performance is growing year by year.
We always uphold the principle "Honesty foremost, Quality fisrt". After years of efforts, we successfully passed the ISO9001 quality system certification and CE certification. And we have than 10 national patent products, and achieved many certificates of honor: High-tech enterprises in Shandong Province, China 3.15 Consumer Satisfaction Unit, AAA grade credit unit, Contract keeping and Credit First Company.
We`ll always continually provide high quality machine tools and services to repay the society.
