Product Specifications
| Prod Model: |
SHDN-160 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Width: |
0.3 to 0.5m |
| Power: |
80W to 250W/Square Meter |
| Voltage: |
12 V to 240V |
| Certification: |
SAA |
| Brand: |
Senphus |
| Operating Principle: |
Conduct Heat |
| Type: |
Heating Mat |
| Usage: |
Heat |
| Material: |
PVC or FEP Coated |
Product Description

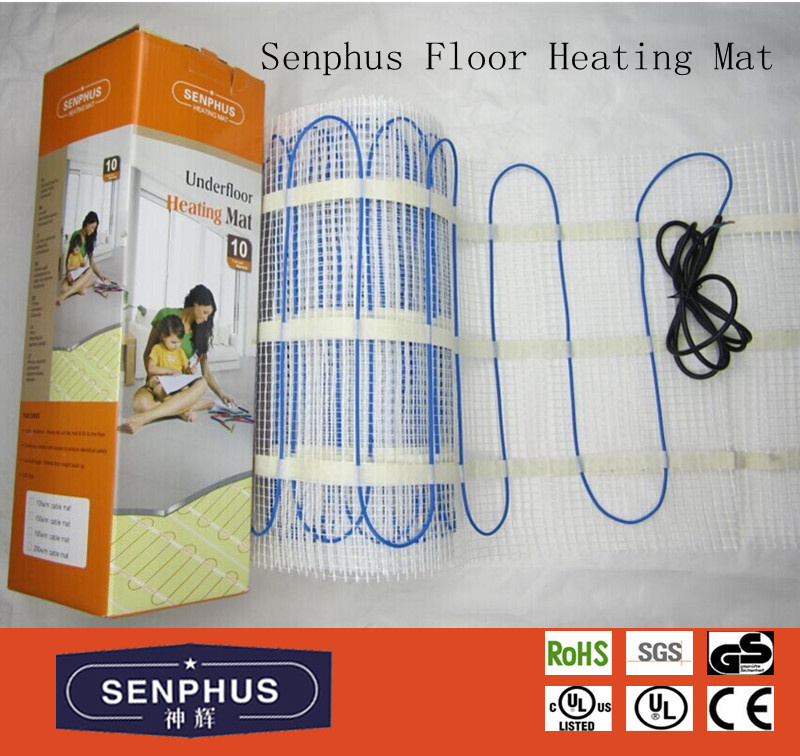

Floor Heating SystemHeating mat is a good floor heating system. It is easy to install and is suitable for various floor decorative materials, whether it is concrete floor and wood flooring, or the old tiles floor or terrazzo floor. It is installed in the tile adhesives and almost doesn't affect the floor elevation. Anze heating mat can be directly laid on the original floor without any treatment to the original floor. Meanwhile, the thin preheat layer can offer you the desired floor temperature 20-30 minutes after the system is activated. Therefore the fast heating system is the best choice for rooms such as bathroom. It is applicable to the overall heating, comfort heating, wall heating, strict demands of floor height and renovation.
Floor Heating System Specification
| Voltage | Size | Square meters | Power/W | Resistance | Length(m) |
| 230V | SHDN-160-0.5M2(P) | 0.5 | 80 | 661.3 | 5.55 |
| 230V | SHDN-160-1M2(P) | 1 | 160 | 330.6 | 11.1 |
| 230V | SHDN-160-1.5M2(P) | 1.5 | 240 | 220.4 | 16.65 |
| 230V | SHDN-160-2.0M2(P) | 2 | 320 | 165.3 | 22.2 |
| 230V | SHDN-160-2.5M2(P) | 2.5 | 400 | 132.3 | 27.75 |
| 230V | SHDN-160-3.0M2(P) | 3 | 480 | 110.2 | 33.3 |
| 230V | SHDN-160-3.5M2(P) | 3.5 | 560 | 94.5 | 38.85 |
| 230V | SHDN-160-4.0M2(P) | 4 | 640 | 82.7 | 44.4 |
| 230V | SHDN-160-4.5M2(P) | 4.5 | 720 | 73.5 | 49.95 |
| 230V | SHDN-160-5.0M2(P) | 5 | 800 | 66.1 | 55.5 |
| 230V | SHDN-160-5.5M2(P) | 5.5 | 880 | 60.1 | 61.05 |
| 230V | SHDN-160-6M2(P) | 6 | 960 | 55.1 | 66.6 |
| 230V | SHDN-160-7.0M2(P) | 7 | 1120 | 47.2 | 77.7 |
| 230V | SHDN-160-8.0M2(P) | 8 | 1280 | 41.3 | 88.8 |
| 230V | SHDN-160-9.0M2(P) | 9 | 1440 | 36.7 | 99.9 |
| 230V | SHDN-160-10.0M2(P) | 10 | 1600 | 33.1 | 111 |
| 230V | SHDN-160-12.0M2(P) | 12 | 1920 | 27.6 | 133.2 |
Floor Heating Systems Installation Guide1.Divide the floor into a series of rectangles. From these measurements you can calculate how many mats you'll need and what sizes. Exclude permanent or static fixtures from your calculations. If the floor is self-levelling compound over concrete.
2.Lay the first run. At the end of the run cut the mat leaving the cable intact, turn the mat through 90 or 180 degrees and continue laying. When the area is covered, adjust the mat until the loops are equal distance apart. Now stick the mat to the sub floor using the special tape bands.
3.Lay the temperature probe from the programmable thermostat onto the floor centered between two of the cable loops and secure it to the floor surface. Now take the unheated power lead from the end of the matting system which should be positioned near the thermostat. Refer to the installation manual for testing instructions and readings.
4.Either lay a thin, self-levelling compound over the mat and leave it to dry before laying tiles or trowel flexible tile adhesive directly over the mat and lay the floor tiles. Once the grouting is complete let the tile adhesive cure before switching on the system.
Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

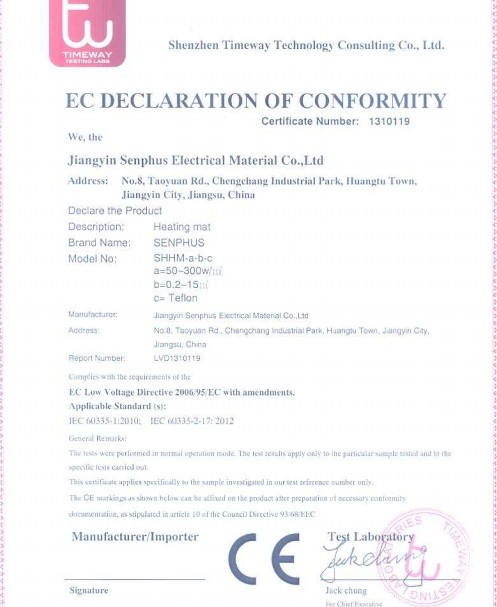

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.
Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.
Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.
Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!
OEM is welcome! !
