Yueqing Winston Electric Co., Ltd. >> Flush Mounted Type Manufacturer Twin Double Timer Relay with CE

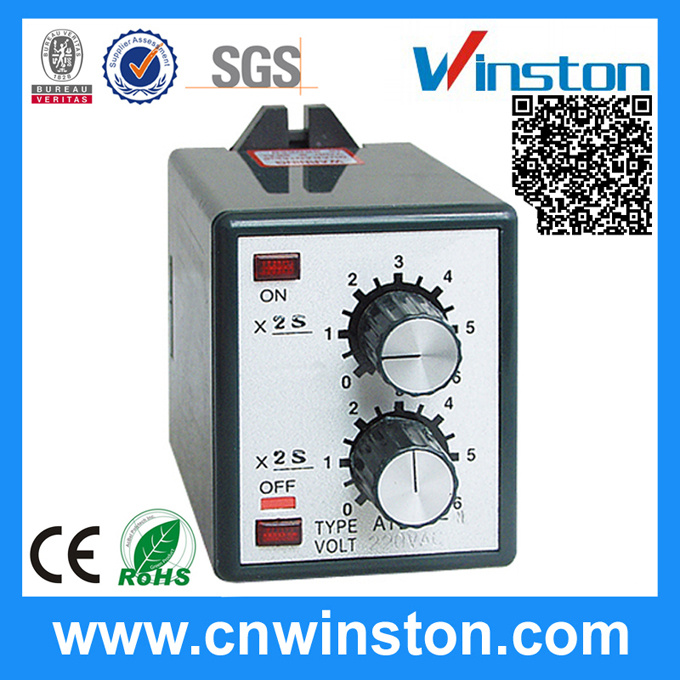

Flush Mounted Type Manufacturer Twin Double Timer Relay with CE

Name: Flush Mounted Type Manufacturer Twin Double Timer Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 770485435
Availability: InStock
Rating: 4.9 (56 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 4.5-8.5/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ATDV-N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand:	Winston
Protect Feature:	Sealed
Contact Load:	Low Power
Dimensions(mm):	61h 49W 70d
Ambient Huminity:	48~85%Rh
Contact Material:	Silver Alloy
Manufacturer:	OEM
Condition:	Original New
Reset Time:	0.2sec Max
Consumed Power:	2va

Product Description

Specifications

1. Linear phase-shift control, excellent stability, high precision
2. Modularized design, safer and reliable
3. Small size, easy to install and wiring twin timer relay

Classification			Multi Range Timer	Twin Timer	Twin Timer
Specification Model			AH2-N/Y	ATDV-N	ATDV-Y
Dimension			61H×49W×70D 88H×58W×68D	61H×49W×70D	88H×58W×68D
Mounting & Socket		Surface(-N)	PF083A PS-08	P2CF-08 PS-08	PF083A
Mounting & Socket		Flush(-Y)	US-08 P3G-08	PF083A	US-08 P3G-08
Full Timing Range			A: 1S,10S,1M,10M B: 3S,30S,3M,30M C: 6S,60S,6M,60M D: 1M,10M,1H,10H E: 3M,30M,3H,30H	6S×6S,6S×60S, 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request	6S×6S,6S×60S, 30S×30S, 30S×60S 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request
Rated Voltage (V)			AC: 12,24,110,220, 240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating			ON-UP Two Indicator Lamp	ON,OFF Operating	ON,OFF Operating
O/P Contact	Model		AH2-N/AH2-Y	ATDV-N	ATDV-Y
	Time Limit 1C		5A	5A	5A
	Time Limit 2C
	Instantaneous 1C		5A
Life	Mechanical		5×106 Times	5×106 Times	5×106 Times
Life	Electrical		105 Times	105 Times	105 Times
Accuracy	Repeat Error		±1% max	±1% max	±2% max
	Setting Error		±10% max	±10% max	±20% max
	Voltage Error		±1% max	±1% max	±1% max
	Temp Error		±2% max	±2% max	±2% max
Reset Time			0.1 sec max	0.2 sec max	0.2 sec max
Consumed Power			3VA	3VA	3VA
Ambient temperature			-10oC~+55oC	-10oC~+55oC	-10oC~+55oC
Ambient Huminity			48~85% RH	48~85% RH	48~85% RH
Weight			220g	160g	210g

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery

Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.

Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.

We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.

Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
