Product Specifications
| Prod Model: |
HD-B616 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, ISO, SGS |
| Load Cell: |
Celtron From USA |
| Control System: |
Computer Control |
| Motor: |
Servo Motor |
| Guarantee: |
1 Year |
| Delivery Time: |
Within 15 Days |
| Maximum Load: |
5 Ton |
| Display Device: |
PC |
| Resolution: |
1/250, 000 |
| Accuracy: |
±0.5% |
| Type: |
Tensile Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description

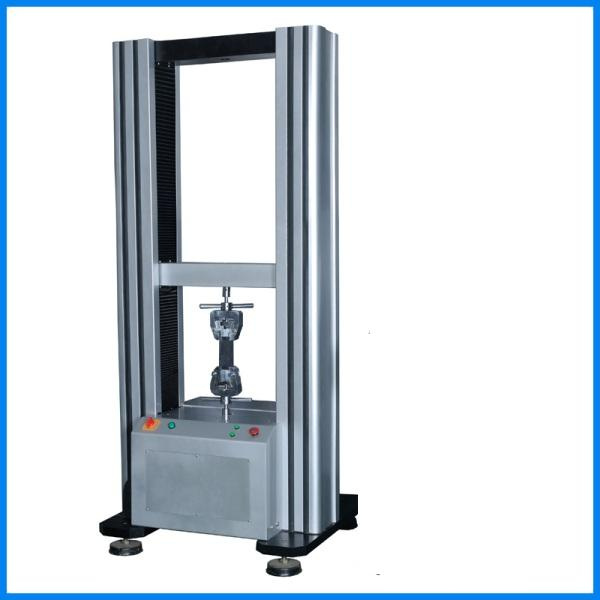

Foam Tensile Testing Instrument
Foam Tensile Testing Instrument can test various materials (both finished and semi-finished products ) of tensile strength, compressive strength and elongation, can do stripping, tear strength, flexural, compression test and etc. It can connect up to the computer and display or printout the test times, test value, max. Value, etc. Also it can make various report forms according to the requirements.
Parameters:
| Items | Specification |
| Sensor | Celtron load cell |
| Capacity | 1000,2000,3000,5000kg |
| Unit Switchover | G, KG, N, LB |
| Display Device | PC |
| Resolution | 1/250,000 |
| Accuracy | ±0.5% |
| Max. Stroke | 1000mm (including fixture) |
| Test Speed | 0.1-300mm/min (adjustable ) |
| Motor | 30T Panasonic Servo Motor |
| Screw | High Precise Ball Screw |
| Elongation Accuracy | 0.001mm |
| Power | AC220V, 50HZ |
| Weight | Approx.250kg |
| Accessories | One set tensile clamp,one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual |
Product Features
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
