Product Specifications
| Prod Model: |
ZD3000V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Automatic Folding Machine |
| Fuel: |
Electric |
| Clean Type: |
Manual |
| Cleaning Process: |
Packing Machine |
| Certification: |
CE, ISO |
Product Description

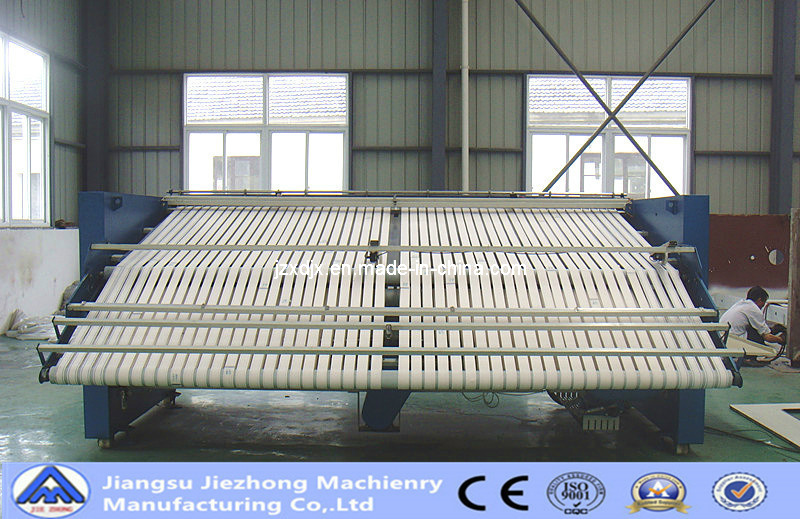

Character of this Folding machine is as follows
1 This machine has large LCD display and intelligent control systems, and English operating system with hand touch screen
2 Five times folded is monitored by programmable operating panel, the folding times is able to be programmed by the fabric's width and thickness
3 We cancel the traditional mechanical pulse, and apply high intelligenc Infrared detection system
4 Folding function of the dual-channel is able to double the capacity of folding the small linen, so that to reduce energy consumption
5 Running speed adjustment range is big enough to match with the different kinds ironers
6 Error alarm system and safe protecting system, make the maintain much easier
PC board relay outputs, without intermediate relay, reducing the point of failure, maintenance becomes easy
7 Various control components are used 24V DC low-voltage components, safe and reliable. They stem directly repair
8 Control valves with pneumatic control, the action is fast and reliable, non-polluting the surrounding environment
9 This equipment is equipped with multiple safety switches, safety and reliability.
| Model | ZD3000V | ZD3300V |
| Folding length (max)×width (mm) | 3600×3000 | 3600×3300 |
| Working Capacity (m/min) | 30 | 30 |
| Working ability (piece/hour) | 480 | 480 |
Main conveyer belt
liner speed (m/min) | 5~28 | 5~28 |
| Air pressure (mpa) | 0.5~0.7 | 0.5~0.7 |
| Compressed air consumption (L/min) | ~80 | ~80 |
| Rated input power (Kw) | 0.75+0.37 | 0.75+0.37 |
| Power consumption (Kw/h) | 0.6 | 0.6 |
| Drainage of air compressor (M³/min) | 0.3 | 0.3 |
| External power line (mm2) | 4 provided by users | 4 provided by users |
| Power supply (VP/Hz) | 380/3/50 | 380/3/50 |
| Overall dimension (mm) | 4500×2530×1930 | 4940×2530×1930 |
| Weight (kg) | 1500kg | 1600kg |
Jiangsu Jiezhong Machinery Manufacturing Co., Ltd is one of the leading manufacturers of industrial and commercial laundry equipments in China for years. In 2013, Jiezhong became the only one cooperative partner of Accurate Technologies in Thailand. Since then, Jiezhong has the right to sell the Image brand to domestic and foreign countries. Also, Jiezhong has been engaged with customers from a wide varity of industries, invested time and energy in our customers' maintenance and development, offering products and service designed to face the challenges we meet every day.
As a professional manufacturer, our products are widely recognized and trusted by customers all over the world and are applied in hotels, hospitals, military, laundry companues, for its superb quality, reasonable prices and stylish designs. Our main products are: Washer extractor, barrier washer, tumble dryer, ironing machine, and folding machine. Also we sell Image brand products from Thailand named tunnel washer, deep chest ironer and towel folding machine. To ensure high quality, our company spares no expense to the introduction of international advanced equipment, such as laser cutting machines.
We take full responsibility of repair, replacement, if serious quality problems happen during the term of service. Our company is commented to providing the best solution for your laundry. We have served thousands of satisfied customers around the market, enjoying a high reputation both at home and abroad.
Nevertheless, we welcome your visit and are looking forward for future cooperation for mutual benefits.
