for Glass Edges and Glass Loading Double Edging Glass Production Line

Name: for Glass Edges and Glass Loading Double Edging Glass Production Line
Brand: china-manufacturer-directory.com
SKU: 736013205
Availability: InStock
Rating: 4.4 (132 reviews)

Supplier:	LiaoDa (LAD) Glass Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	YD-DE series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Description:	Horizontal Glass Double Edging Machine
Model:	Yd-De-2520
Color:	Creamy-White & Blue /Optional
Place Of Origin:	Guangdong China(Mainland)
Brand Name:	Yd
Machine Type:	Horizontal
Glass Speed(M/Min):	0.8~5
Glass Thickness(mm):	5~19
Power(Kw):	50
Compressed Air Consumption(It/Min):	<1
Type:	Glass Edging Machine
Certification:	CE
Control System:	PLC

Product Description

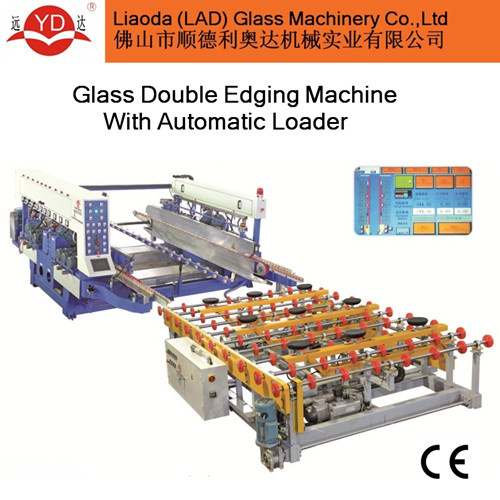

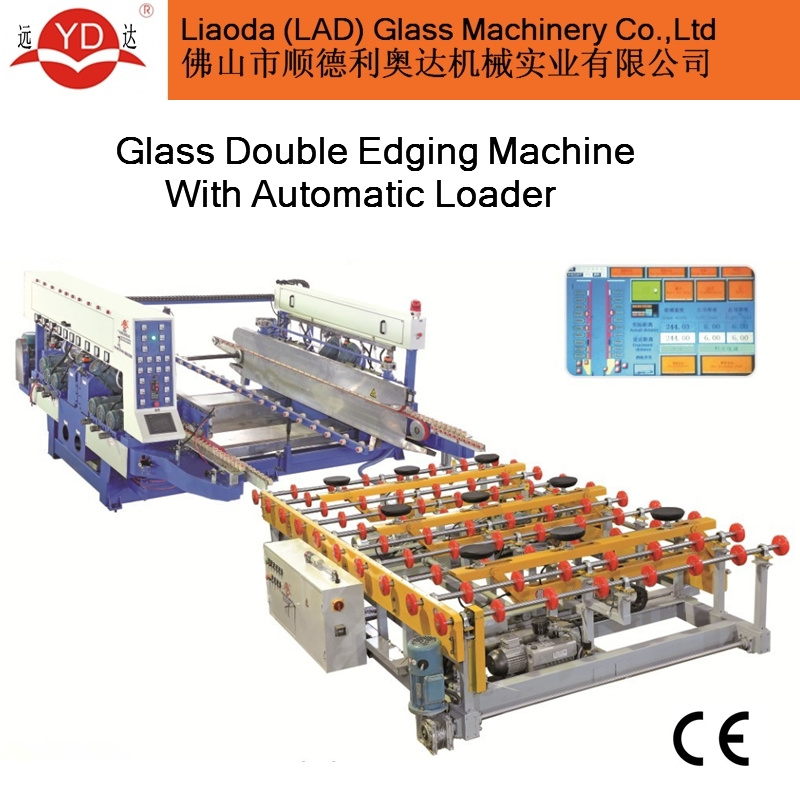

Horizontal Double Edging Machine
with Automatic loader

Main features:
1. Suitable for grinding flat edge for building glass and household appliance glass, such as make fresh keeping cabinet, display cabinet, the overall design of the bakery,door, window etc;
2. PLC control system, has both manual and automatic operation modes;

3. Grinding,rough grinding and polishing the two parallel edges and front/back arris at one pass;

4. Adopt linear guide rail and screw rod transmission and frequency speed adjustment;

5. Glass width range, corner cutting, pneumatic polishing, film removing and

Machine technical specification:
Profile: Falt/Arris
Max. glass width: 2500mm
Min glass size: 200mm x 200mm
Total spindles: 20 spindles
Glass thickness:5-19
Glass speed: 0.8-5m/min
Compressed air consumption: 1lt/min
Power: 50kw
Outer dimension: 4000mm x 4400mm x 1800mm
Weight: 5000kg

Machine spindles:
No.1 No.2 Diamond wheel
No.3 Resin wheel
No.4 Resin wheel with arris
No.5 Polish wheel with arris
No.6 Resin wheel with arris
No.7 Polish wheel with arris
No.8 Polish wheel 10s40
No.9 Polish wheel 10s60
No.10 Polish wheel (woolen wheel)

Main Technical Specification:

Model Number	YD-DE-1518	YD-DE-2018	YD-DE-2520	YD-DE-3020	YD-DE-4020
Max glass width (mm)	1500	2000	2500	3000	4000
Min glass size (mm)	200	200	200	200	200
Total spindles	18	18	20	20	20
Glass thickness (mm)	5~19	5~19	5~19	5~19	5~19
Glass speed (m/min)	0.8~5	0.8~5	0.8~5	0.8~5	0.8~5
Compressed air Consumption (lt/ min)	<1	<1	<1	<1	<1
Power(Kw)	46	46	50	50	50
Outer dimension (m)	3.0 X 4.2 X1.8	3.5 X 4.2 X 1.8	4.0 X 4.4 X 1.8	4.2 X 4.4 X 1.8	5.5 X 4.4 X 1.8
Weight (kg)	4000	4500	5000	5500	6000

Guarantee And After-sale Service:

One year guarantee for whole machine.
24 hours technical support by e-mail.
Ues-friendly English software,user manual and detailed Videos/CD.
We will provide all spare parts needed for maintenance of the equipments.
Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.
Why choose Ladglass?
1.Widely used in different industry
2.High precision and reputation
3.CE Certificate High quality parts
4.Competitive price
5.Fast delivery
6.Best service

Welcome your inquiry and we will try our best to help you choose a right machine!

LIAODA(LAD) Glass Machinery Co., Ltd. is the consignee of Yuanda Glass, which is one of the leading glass machinery designer and fabricator in China in manufacturing popular glass cold and hot processing machinery.

Since 1988 we have worked out first Chinese glass edging machine, with our continuous research and development, in 2000, our first horizontal flat glass tempering furnace has came into being, now hundreds of our intelligent and diligent machines have been running at the sites of domestic and overseas.

All our engineers have years of working experiences in glass fabricating and glass machine manufacturing. On the base of absorbing the latest technologies, we know very well the advantages and disadvantages of all types of existing glass machines, therefore our compact design and sophisticated manufacturing center enable us to construct the most top quality of glass machines at the possible lowest cost.

A LITTLE MORE PRACTICAL, A LITTLE MORE INNOVATIVE is our Motto, on the way of modernization and globalization, we will commit ourselves to satisfy your requirements and our full experiences will absolutely be beneficial to any kind of your needs in flat glass processing.
