Product Specifications
| Prod Model: |
HP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mining Object: |
Coal Machinery |
| Type: |
Crushing Equipment |
Product Description

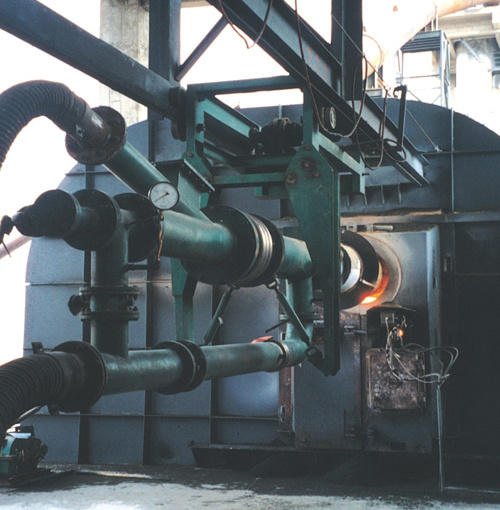

HP Forced Swirl Multi-Channel Burner
High efficiency burner is one of the key devices of the rotary kiln for cement clinker production. By absorbing advanced foreign technology and by analyzing fuel conditions in China, we has successfully developed Model HP multi-channel high efficiency burner, which is the only new generation high efficiency burner passed appraisal in China. Its structure is a domestic creation and its performance is talking the leading position in China. It can substitute similar imported products, we has developed several models and several series burners such as kiln multi-channel burner, calciner multi-channel burner. Heavy oil burner, gas burner, and combined multi-channel burner for the production line with the capacity ranging from 1000t/d to 6000t/d. Therefore it can meet requirements from different clients.
Model HP multi-channel burner was listed in the ninth five-year plan as energy-saving Science and Technology Achievement Popularization Project by the State Economic and Trade Commission. By the State Planning Commission and by Ministry of the Science and Technology; It was granted State Key New Product certificate by the Ministry of Science and Technology of the PRC, State Bureau of Quality and Technical Supervision and other three ministries in 2000; It obtained the third prize in Science and Technology Achievement in Anhui Province in 2001.
Technical indexes
Direct air flow velocity: 120-300m/s(>300m/s if necessary)
Interior air flow velocity: 100-250m/s
Velocity of coal air: 20-30m/s
Primary air volume: 8%
Characteristics
Head part of the burner is a whole and external air jetted from discrete nozzles in ring form is not likely to be distorted, so the flame would not burn out kiln coating.
Discrete type external air nozzle jets in higher velocity than that of traditional 3 or 4-channel burners and takes in more secondary air in high temperature, which helps burning anthracite and low grade coal.
Double wear-resistant layers for protection at the coal meal inlet of burner.
It is easy to replace asi wing and external air nozzle so as to meet different requirement srom great changes in coal types.
Multi strength structure ensures sufficient rigidity.
Concentrated and strong flame in powerful pushing force and high thermal intensity.
It is convenient to adjust flame shape through simple and reliable procedures; Temperature rises quickly and running rate of kiln is high.
Basing on principle of large air velocity difference, the burner runs with a remarkable backflow of hot flue gas and is adaptable to various types of coal, including anthracite and low grade coal.
Primary air volume is less than 8%, so secondary air of high temperature could be made full use of to greatly decrease heat consumption.
Stable peak value of flame temperature and undamaged kiln coating help extending service life of refractory brick and improve quality of clinker.
Environmental pollution is effectively reduced; NOx emission decreases by over 30%.
The burner is widely applied to all types of rotary kilns in industries of building material, chemical, metallurgy, mine etc.
Xi'an Sanyuan Heavy Industry Co., Ltd, the high pressure grinding rolls sales branch of Hefei Cement Research & Design Institute, locates in Xi'an High-Tech Industries Development. Now, our company has 80 employees including 5 professor engineers, 10 middle-level technicians and 65 salespersons. The company will set up the commercial networks and After-sales Service Centre in Xinjiang, Anhui, Hebei, Yunnan province, etc.
The main products of the company are energy conservation environmental equipment, ore processing equipment and grinding equipment. The products are widely used in metallurgical industry, mining field, power station building material, fire-proof material, ceramic, etc. Our products are exported to Asia, America, Europe. Southeast Asia, South Africa. etc.
During the development process, the company constantly exchanges and cooperates in a number of domestic research institutions, design and production, maintenance, commissioning and engineering modifications to improve the capability to rapidly been expanding. Quality is life of the company and customer is God. We will always hold the service tenet of being responsible for every working procedure, every machine and every client. Moreover, we can provide program design, process flow design, standard and non-standard design for customers.
Depending on technology and development, continuing to provide customers with high-tech products, is our constant pursuit.
