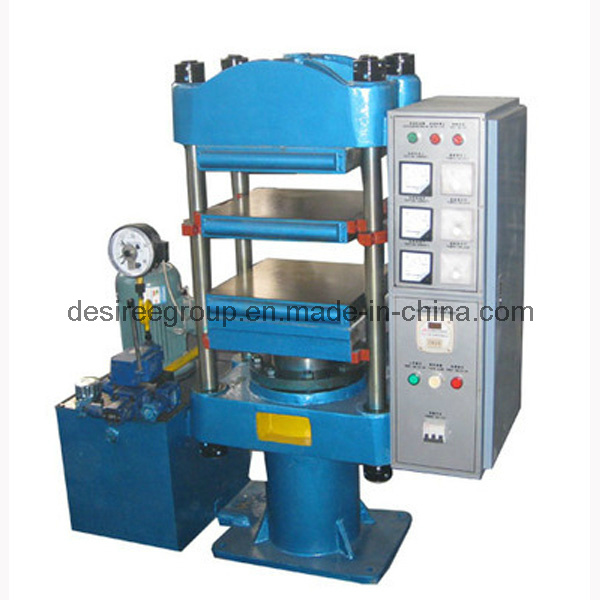

Four Column Rubber Plate Vulcanizing Press

Name: Four Column Rubber Plate Vulcanizing Press
Brand: china-manufacturer-directory.com
SKU: 690299902
Availability: InStock
Rating: 5 (124 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 2750-3250/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	XLB-DQ400X400X2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Plate Vulcanizing Press
Brand Name:	Desiree
Total Pressure:	0.25mn
Piston Stroke:	250mm
Plate Size:	400X400mm
Daylight No.:	2
Daylight:	125mm
Platen Heating:	Electric Pipe or Steam
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Certification:	CE, ISO

Product Description

Plate Vulcanizing Press / Four Column Rubber Plate Vulcanizing Press

Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermosetting plastic.
2. Used as common hydraulic machine.

Features:
1. Mainly consists of main machine, hydraulic system and electrical system.

2. Column type, with bottom hydraulic cylinder.

3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.

4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.

5. Can provide hand control and electric control as customer's request.

6. There are two kinds of heating method for hot platen, steam heating and electric heating.

7. The hot platen clearance can be designed as per the size of product & mould.

Advantages:
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.

WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.

Our Services:
1. One year warranty.
2. Lifetime technical support.
3. Engineers available to service machinery overseas.
4. Any demand, we will give feedback within 24hours.

Welcome to make a field inspection of our factory.
We are always pleased to serve you at any time.

Plate Vulcanizing Press Model No.	XLB-DQ400X400X2	XLB-DQ400X400X2	XLB-DQ600X600X2	XLB-DQ750X850X2(4)
Total Pressure(MN)	0.25	0.50	1.00	1.60
Plate Size(mm)	400X400	400X400	600X600	750X850
Daylight(mm)	125	125	125	125
Daylight No.	2	2	2	2(4)
Piston Stroke(mm)	250	250	250	250(500)
Unit Area Pressure(kg/cm 2 )	20	31	28	25
Main Motor Power(kW)	3	2.2	2.2	3
Overall Dimension(mm)	1300X800X1500	2400X550X1500	1401X680X1750	1900X950X2028
Weight(kg)	1150	1300	3500	6500(7500)
