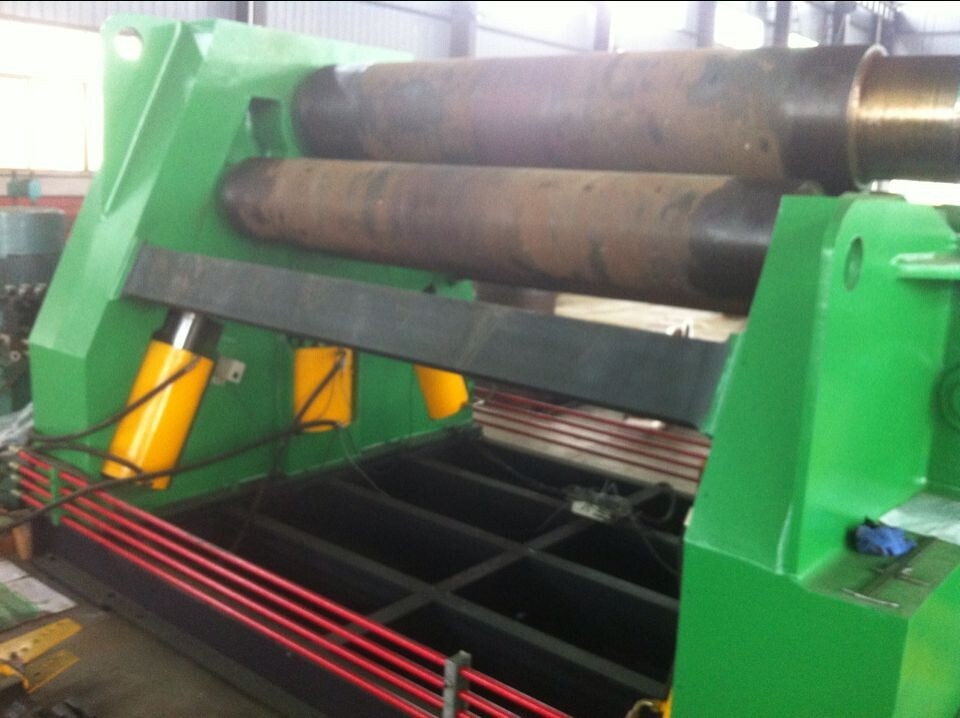

Four Roller Hydraulic Plate Rolling Machine for Stainless Steel

Product Specifications

Prod Model:	WS28*3500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Can Be Customized
Delivery Detail:	3-30 Days After Receipt
Brand:	Annov or as Customer's Request
Pressure On The Top Roll:	690 Tons
Plate Width:	3000 Mm
Diameter Of Top Roll:	650 Mm
Diameter Of Down Roll:	380 Mm
Central Distance:	700 Mm
Driving:	75 Kw
Hydraulic:	30 Kw
Performance Classification:	High-End CNC Machine Tools
Process Usage:	Metal-Forming CNC Machine Tools
Numerical Control:	CNC/MNC
Movement Method:	Contour Control
Control Method:	Closed-Loop Control

Product Description

End pre-bending of high precision
High Accurate End Pre-bending when bending the end, it can freely set the length of the edge. Top roller presses down, and high accurate end pre-bending is done under a certain pressure.
Technical parameters for small-size & medium-size top roll universal plate rolling machine

Different uses with coordinating controlling methods
Three are following controlling methods according to its use.
TNC ( Top NC ): For many types but small quantity of production;
T&BNC (Top and Bottom NC ): For few types but large quantity of production;
CNC ( CNC ): For many types but large quantity of production.

Excellent product precision
Products Have Superior precision Due to continuous bending and high
Accurate end pre-bending, products have superior precision. As the top roller
Is in the shape of drum, with the supporting roller adjusted, it can coil ideal
Products in the wide range from sheets to plates.

CNC control high producing efficiency
CNC Controls High Production Efficiency One operator, simple operation, and
High efficiency.

Rich bending shapes
There are such different shapes as O shape, U shapes and multi-section
Shapes. The method is as follows:
O bending: Back bending mode
U bending: Front bending mode
Special bending: Composition mode

Technical parameters for small-size&medium-size top roll universal plate rolling machine
Model	Pressure on the top roll	Max plate thickness		Plate width	Diameter of top roll	Diamter of down roll	Central distance	Motor
		end bending	central					Driving	Hydraulic	Shift
	Tons	mm	mm	mm	mm	mm	mm	Kw	Kw	Kw
W11S-55x3000	610	45	55	3000	620	360	650	75	30	15
W11S-60x3000	690	50	60	3000	650	380	700	75	30	15
W11S-50x4000	690	45	50	4000	700	380	700	75	30	15
W11S-70x3000	850	60	70	3000	710	420	780	75	37	15
W11S-55x4000	850	50	55	4000	750	420	780	90	37	15
W11S-50x5000	850	42	50	5000	790	420	780	90	37	15
W11S-45x6000	850	38	45	6000	820	420	780	90	37	15
W11S-75x3000	930	65	75	3000	740	440	820	90	37	15
W11S-60x4000	930	55	60	4000	780	440	820	90	37	15
W11S-55x5000	930	45	55	5000	820	440	820	90	37	18.5
W11S-80x3000	1050	70	80	3000	770	460	880	90	37	18.5
W11S-65x4000	1050	60	65	4000	810	460	880	90	37	18.5
W11S-85x3000	1150	75	85	3000	800	480	920	110	37	18.5
W11S-70x4000	1150	65	70	4000	840	480	920	110	45	18.5
W11S-100x3000	1350	90	100	3000	860	520	1000	110	45	22
W11S-80x4000	1350	75	80	4000	900	520	1000	110	45	22
W11S-65x6000	1350	60	65	6000	980	520	1000	110	45	22
W11S-115x3000	1600	100	115	3000	900	560	1080	132	55	30
W11S-100x4000	1600	85	100	4000	940	560	1080	132	55	30
W11S-125x3000	1800	110	125	3000	960	600	1120	160	75	37
W11STNC-45X3000-W11STNC-110X4000	ibidem
