Frame Plate Vulcanizing Press Machinery

Name: Frame Plate Vulcanizing Press Machinery
Brand: china-manufacturer-directory.com
SKU: 699098162
Availability: InStock
Rating: 4.4 (71 reviews)

Price:	US $ 22000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	XLB-Q/D1200x1200x2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Xlb-Q/D1000X1000X1
Total Pressure:	2500 Kn
Max. Working Pressure Of Working Oil:	16 MPa
Max. Stroke Of Piston:	400 Mm
Piston Diameter:	450 Mm
Hot Platen Size:	1000X1000 Mm
Layer Quantity:	1
Hot Platen Clearance:	400 Mm
Heating Temperature:	140 to 160 °c
Steam Pressure:	0.6 to 0.8 MPa
Certification:	CE, ISO, SGS

Product Description

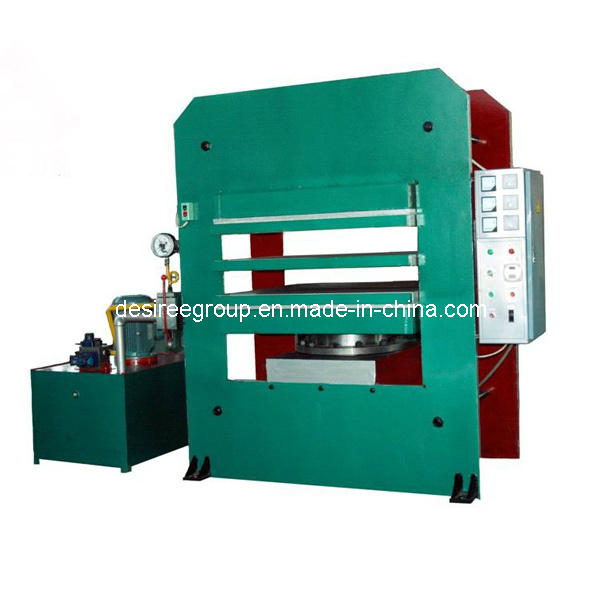

Frame Plate Vulcanizing Press Machinery

Product Description

Function
1. Used for pressing all kinds of rubber model products and thermosetting plastic, such as sole, o-ring etc
2. Used as common hydraulic machine.
Features
1. Mainly consists of main machine, hydraulic system and electrical system.

2. Column type, with bottom hydraulic cylinder.

3. Adopts hydraulic drive, electric relay control, adjusted curing time and pressure.

4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.

5. Can provide hand control and electric control as customer's request.

6. There are two kinds of heating method for hot platen, steam heating and electric heating.

7. The hot platen clearance can be designed as per the size of product & mould.

Advantage
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install, safe and reliable operation.
Technical Parameters

Item	Description	Remarks
Model No.	XLB-Q/D1200x1200x2
Total pressure(kN)	3150
Max. working pressure of working oil(Mpa)	16
Max. stroke of piston(mm)	700	Can be designed as your requirement.
Piston diameter(mm)	500
Hot platen size(mm)	1200x1200
Layer quantity	2
Hot platen clearance (mm)	350	Can be designed as your requirement.
Heating temperature(°C)	140 to 160
Motor power(kW)	7.5
Steam pressure(MPa)	0.6 to 0.8	XLB-Q1200x1200x2 heated by steam
Electrical heating power of each hot platen(kW)	24.1	XLB-D1200x1200x2 heated by electric pipe
Total weight(kg)	8000
