Front Loader with 3cbm Bucket (W156)

Name: Front Loader with 3cbm Bucket (W156)
Brand: china-manufacturer-directory.com
SKU: 675109245
Availability: InStock
Rating: 4.9 (99 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 40000-50000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	W156
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Front Loader:	Front End Loader
Front Shovel Loader:	Bucket Loader
Wheel Loader:	Earth Moving Loader
Walking Mode:	Wheeled
Condition:	New
Type:	Medium-sized Loader
Certification:	ISO9001: 2000
Load And Unload Method:	Front Discharge

Product Description

front loader

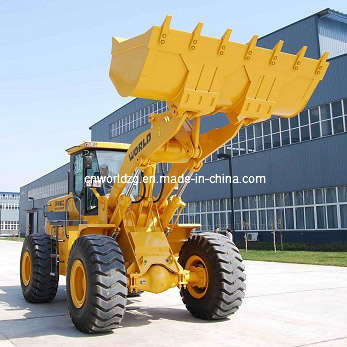

5 ton wheel loader W156, 5000kg rated load, 3 or 3.6 or 4cbm bucket capacity, Weichai Steyr or Shangchai CAT or Dongfeng Cummins engine, Hangzhou Advance brand planet type transmission, power shift, 2 forward and 1 reverse shifts. Caliper disc brake, air over oil active 4 wheel brake, full-hydraulic coaxial flowrate amplification steering system, middle articulated frame. Long wheel base and big breakout force for heavy duty. Self-made transaxle, cabin, frame, arm and bucket. With air conditioner. Joystick, log grapple, forks, quick fitting, rock bucket and 4 in 1 bucket are optional.

Basic Data
Bucket Capacity	3.0m3
Rated Load	5000kg
Max. Traction	165kN
Max. Break Out Force	150kN
Wheel Base	3427mm
Min. Turning Radius (outside tires)	6700mm
Max. Dumping Height	2970mm
Max. Reach	1200mm
Total Hydraulic Cycle Time	≤11.1s
Full Bucket Lifting Time	5.7s
Dimensions (LxWxH)	8075x2960x3500mm
Min. Clearance Over Ground	450mm
Operating Weight	16200kg

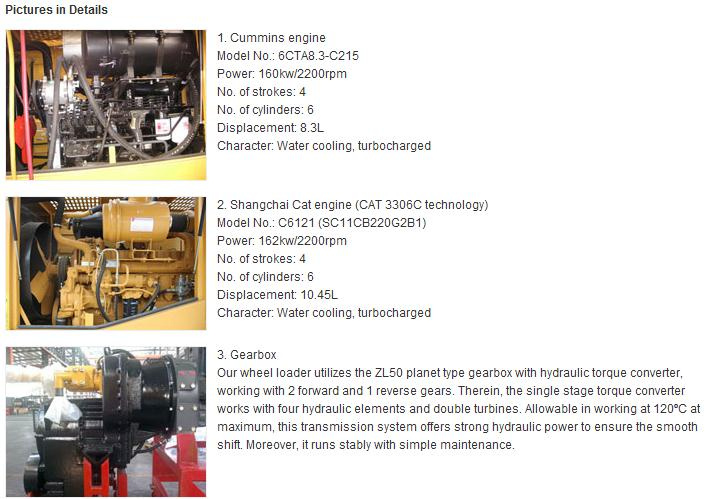

Diesel Engine
Model	CUMMINS 6CTA8.3 or C6121 or WEICHAI WD10G
Type	Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders
Rated Output	162/162/160kW
Rated Speed	2200rpm
Max. Torque	855/908/860N.m

Transmission
Hydraulic Torque Converter Model	Single stage, two phase, four components
Transmission Type	2 forward and 1 reverse gears/hydraulic power shift, planet type
Travelling Speed
Forward 1st	0-11.5km/h
Forward 2nd	0-37.5km/h
Reverse 1st:	0-17km/h
Max.Permissible Temp.	120 degree

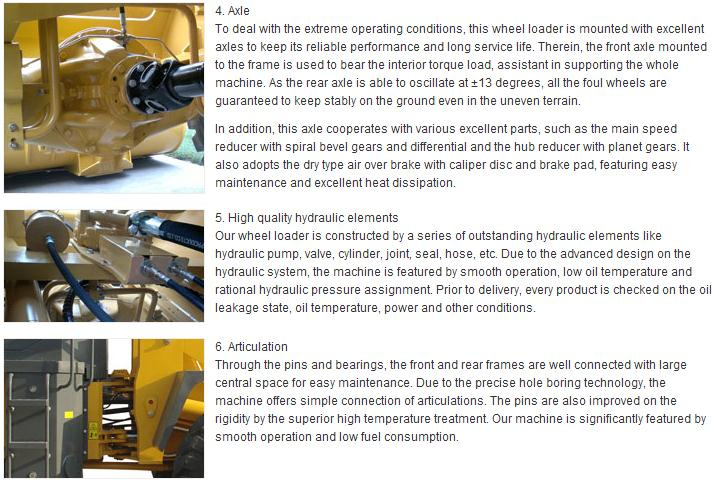

Axle & Tyre
Drive System	4 wheel drive
Type of Main Reducer and Gear Ratio	Spiral bevel gear, single stage, 4.625
Type of Hub Reducer and Gear Ratio	Planet gear, 4.94
Tyre Size	23.5-25-16PR

Hydraulic System
Working Pump Type	Gear Pump
System Working Pressure	17 MPa
Lifting Cylinder Bore x Stroke	165x757mm
Tilting Cylinder Bore x Stroke	200x540mm
Steering Pump Type	Gear pump
Steering Cylinder Bore x Stroke	100x342mm
Max. Steering Angle	35

Brake System
Service Brake	Caliper disc brake, air over oil activate, 4 wheel brake
Parking Brake	Inner expanding shoe brake, drum type, hand control

World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.

We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.

Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.

Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.

Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
