Fst700-201 Stainless Steel Capacitance Oil Level Sensor
Product Specifications
| Prod Model: |
FST700-201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Range: |
0-200....2000mm |
| Testing Medium: |
Oil, Fuel, Petrol; Diesel |
| Output: |
4-20mA, 0-5V, 0-10V |
| Supply Voltage: |
9-30V |
| Accuracy: |
0.3%Fs, 0.5%Fs, 1%Fs |
| Working Temperature: |
-10~+85 C |
| Rod Dia: |
16mm |
| Rod Free Cuttable: |
Yes |
| Certificate: |
CE, RoHS |
| OEM Service: |
Yes |
| Type: |
Capacitance Fuel Level Sensor |
Product Description

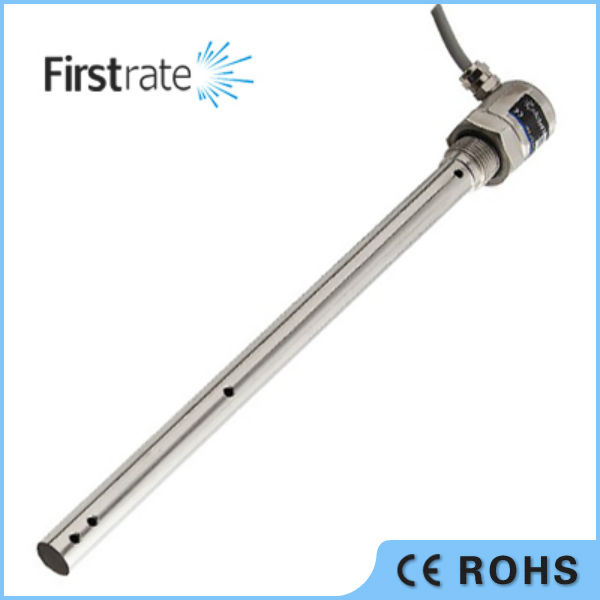

FST700-201 Stainless Steel Capacitance Oil level sensor
Brief introduction
FST700-201 Capacitance Liquid-level Transmitter adopts a coaxial container, the capacitor consists of two coaxial electrodes: inner and outside electrodes. The capacitance between the sensor housing (outside electrodes) and sensoring electrodes (inside electrode) changes when the oil (liquid) is filled into the container, it output standard current, voltage, or digital signals. It can be used to testing various non-conductive liquid. Feature Precise linear and temperature compensationAdjustable damp output timeStrong interference resistance and shock resistanceSurge, over-current and polarity resistant circuit designApplicable for various non-conductive liquidApplication ScopeLiquid-level testing and control in industrial processOil-level testing in automation gas tank, oil tanker, oil depot Testing and control of other non-conductive liquidTechnical Index
| Project | Parameter |
| Standard Range | Pressure Range(mm):300 500 700 1000 1500 2000 |
| Probe diameter (mm): Φ16,Φ12 |
|
| Technical Index | Analog Signal Output | 4~20mA 0~5VDC 0~10VDC |
| Signal Line Specification | 2wire 3wire 3wire |
| Supply Voltage | 9~30VDC 9~30VDC 15~30VDC |
| Digital Signal Output | RS232/485 MODBUS PROFIBUS CANBUS |
| Supply Voltage | 12~30VDC |
| Accuracy | ±0.3%FS ±0.5%FS ±1%FS |
| Zero Drift | ±0.05%FS/ºC |
| Thermal Sensitivity Shift | ±0.05%FS/ºC |
| Longterm Stability (1 Year) | ±0.1%FS |
| Frequency Response (-3dB) | Typical:40bar(Max:300bar) |
| Probe Temperature Resistance | -50~+200ºC |
| Medium Compatibility | Various media compatible with the 316L stainless steel |
| Environmental Protection | IP65 |
| Wetted Parts | 316L |

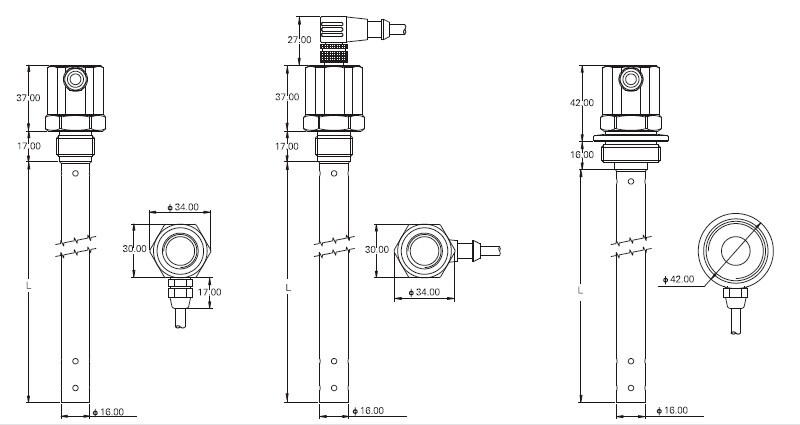

Dimension

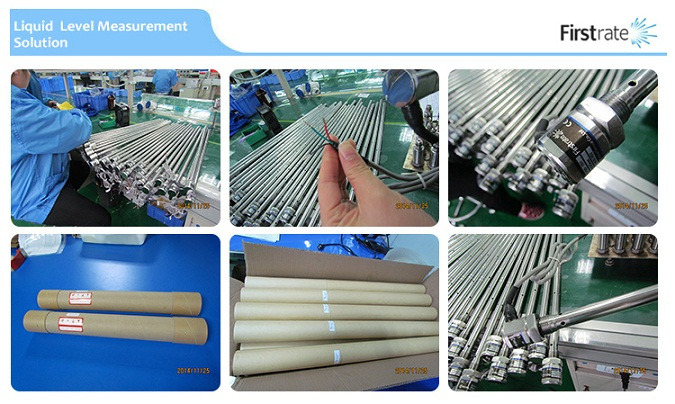

Production & Packge
Company information
Ordering Process:
In order to recommend you the most suitable sensor , please show us following necessary info according to your practical situation.
- what is your medium: gas, water or other ... ?
- working temperature: -20~+85 °C ?
- tesing range: 0-500mm ?
- output: 4-20mA , 0-5V or ....?
- screw: G1/4, 1/4NPT, R1/4, M20*1.5.....?
- electrical connection: DIN43650, Packard, Direct lead ..... ?
- Whether need cable ?
- quantity: ?
- price items: CIF or Exw or FOB ?
- Your complete company name,address, post code,contact person, tele, fax etc.
Our Service
1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time : 7-10 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
7. 7 days free replace & 1 year free repair for quality warranty
Firstrate Sensor Co., Ltd., is a hight-tech joint venture specialized in researching, manufacturing, and sales of sensors. Our products include Pressure Transmitters, Temperature transmitters, Liquid-level Transmitters, Wind Speed and Direction Transmitters, and Intelligent Control Instruments. They are widely used in the field of aviation, aerospace, national defense, military project, engineering machinery, railway, urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control.
Firstrate currently employs nearly 300 people, more than 70% employees have bachelor degree or above, and cover an area of more than 20000 square meters. The company has now implemented the quality management system of ISO9001-2008, and with advanced technique & equipment, comprehensive product test method. Our advanced technique, high quality products, and fast delivery have earned us good reputation among customers from home & abroad. Our products have been exported to more than 40 countries and regions such as US, Germany, Italy, Russia, South Korea, and India. We also provide OEM/ ODM service for customers around the world.
Firstrate is committed to the research and development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique, Bus -technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 6 national invention patents, 20 plus utility-model patents. And have got the certificates of CMC, CE, Safety and Flame-proof certification and RoHS.
