Product Specifications
| Prod Model: |
KB-PC04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: Bc ,Tc Or CCA: |
Packing: Polybag or Blister Packing |
| Material: |
Copper |
| Pin: |
8Pin |
| Application: |
Computer |
| Interface Type: |
RJ45 |
Product Description
Model: KC-PC04

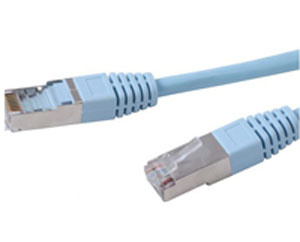

Description: FTP Cat. 5e patch cord
AWG: 26/24AWG stranded
Color: Optional
Packing: Optional
Length: 0.5m to 30m
Feature:
1. Electrical performance guaranteed to meet or exceed ANSI/TIA-568B/568A Category 6/5e and ISO/EIC specifications.
2. Independently tested and verified intertek(ETL).
3. Can support network line speeds in excess of 1 gigabit per second.
|
Norminal Transmission Characteristics |
|
Res. |
Length |
Prop.Delay |
Dealay Skew |
Freq. |
Insertion Loss |
NEXT |
RL |
ACR-N |
ACR-F |
PS NEXT |
PS ACR-N |
PS ACR-F |
|
Ω |
Max. |
ns |
ns |
MHz |
dB |
dB |
dB |
dB |
dB |
dB |
dB |
dB |
|
i |
100m |
555 |
50 |
1 |
3 |
60 |
17 |
57 |
57.4 |
57 |
54 |
54.4 |
|
|
|
|
|
4 |
4.5 |
53.5 |
17 |
49.1 |
45.4 |
50.5 |
46.1 |
42.4 |
|
|
|
|
|
8 |
6.3 |
48.6 |
17 |
42.3 |
39.3 |
45.6 |
39.3 |
36.3 |
|
|
|
|
|
10 |
7.1 |
47 |
17 |
39.9 |
37.4 |
44 |
36.9 |
34.4 |
|
|
|
|
|
16 |
9.1 |
43.6 |
17 |
34.5 |
33.3 |
40.6 |
31.5 |
30.3 |
|
|
|
|
|
20 |
10.2 |
42 |
17 |
31.8 |
31.4 |
39 |
28.8 |
28.4 |
|
|
|
|
|
25 |
11.4 |
40.3 |
16 |
28.9 |
29.4 |
37.3 |
25.9 |
26.4 |
|
|
|
|
|
31.25 |
12.9 |
38.7 |
15.1 |
25.9 |
27.5 |
35.7 |
22.9 |
24.5 |
|
|
|
|
|
62.5 |
18.6 |
33.6 |
12.1 |
15 |
21.2 |
30.6 |
12 |
18.5 |
|
|
|
|
|
100 |
24 |
30.1 |
10 |
6.1 |
17.4 |
27.1 |
3.1 |
14.4 |
