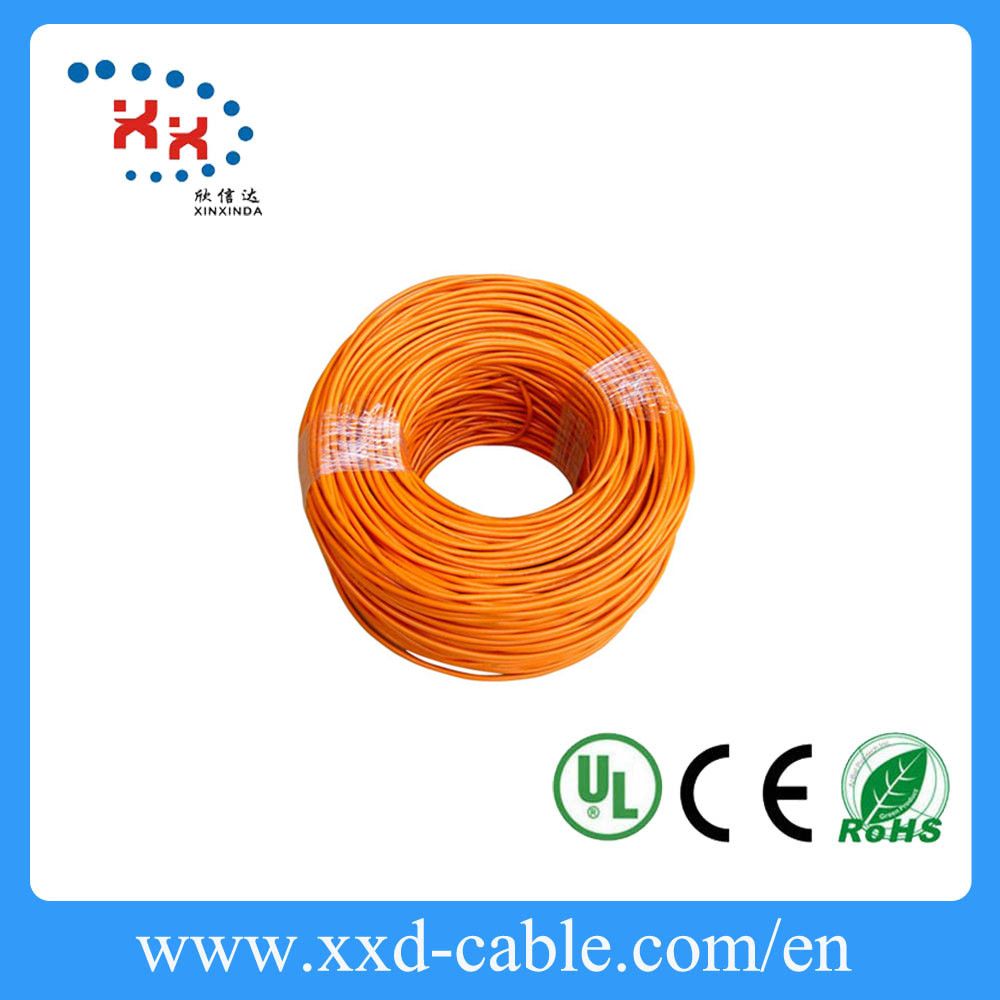

FTP CAT6 LAN Cable in Telecommunication with PVC Jacket

Name: FTP CAT6 LAN Cable in Telecommunication with PVC Jacket
Brand: china-manufacturer-directory.com
SKU: 729306875
Availability: InStock
Rating: 5 (95 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,EXW
Min Order:	50/Roll
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Features:

RJ45 8P8C male to male patch cord

Industrial standards: YD/T1019-2001, (USA)ANSI/TIA/EIA-568-B, (Worldwide)ISO/IEC 11801/71156

Conductor: Solid and stranded oxygen-free copper wire

Jacket: PVC, LSZH, HDPE, rip wire

Molded type plug: CAT6 8P8C RJ-45 short long plug withinjection molding circle caps (or injection molding strain reliefcaps)

Uses 24AWG (UTP), stranded bare copper, four pairs

Colors: Black, gray, red, white, blue, yellow, green, orange, purple and pink or can be customized

Lengths: 1/2/3/4/5/8/10/15m or can be customized

Rating temperature: 75° C

Meets CAT6 specifications or on customized requested

Testing: 100% continuity test and AQL 15% attenuation, next, return loss, impedance test

Designed for network adapters, hubs, switches, DSL/cable, modems, patch panels and other twisted-pairapplications

Applications:

PC to hub
PC to PC
Hub to hub

Categories:

CAT5: 100MHz transmission frequency with high density and highquality insulation jacket
CAT5e: Used for Ethernet 1, 000Mbps, less attenuation and ANEXT, higher ratio of ACR and Structural
CAT6: Most suitable for transmission rate higher than 1GBPSapplication, improve the performance of ANEXT, can provide twofoldin broadband CAT5e
CAT6a: Performance higher than CAT6, final index reached 300MHzbandwidth
UTP: Small diameter save space, light weight, flexible, easycabling, lower price
FTP/STP: Reduce or eliminate ANEXT, independence and flexible, more strong flame retardant

Shape	Conductor		Insulation		Core Number	Jacket
Shape	AWG	Specification (mm)	Material	Thickness (NOM.mm)	Core Number	Material	Thickness (NOM.mm)	OD (NOM.mm)
Circular Cable	26	1/0.404	HD-PE	0.18	4P	PVC or LSZH	0.55	4.8
	26	7/0.16	HD-PE	0.18	4P	PVC or LSZH	0.55	5.0
	24	1/0.511	HD-PE	0.18	4P	PVC or LSZH	0.55	5.4
	24	7/0.203	HD-PE	0.18	4P	PVC or LSZH	0.55	5.5
Flat Cable (Non-sign)	30	7/0.10	HD-PE	0.13	4P	PVC	0.30	1.75*6.2
	28	7/0.127	HD-PE	0.13	4P	PVC	0.30	1.90*7.0
	24	7/0.203	HD-PE	0.18	4P	PVC	0.50	3.0*9.0

Prod Model:	XXD-13LC015
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Hiigh Quality FTP CAT6 LAN Cable
Conductor:	Bare Copper
No. Of Conductor:	8
Insulation:	HDPE
Jacket:	PVC
Color Of Jacket:	White,Grey,Black,Blue,Red,Orange,Green,Optional
Application:	Long Distance Symmetric Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Type:	Cat 6
Cover Material:	PVC
Certification:	UL

Experienced Maker of Electronic Accessories
As a manufacturer with more than 12 years long history, Shenzhen Xin Xin Da Communication Technology specializes in telecommunication industry, making communication cables, RJ45 patch cord, LAN cables, CAT5E, CAT6, CAT6A Patch cord leads, HDMI cables, USB cables, audio cables, VGA cables, RG59 coaxial cables, and many kinds of network cables. We also offer telephone cables, patch panels, keystone jackets and other communication cable accessories.

Implementing Strict Quality Control Measures
Each product is designed and produced under ISO 9001: 2000-certified operations. Thus, all our products are compliant with RoHS and EIA/TIA-568A standards. We implement strict quality control measures, allowing our products to not only meet internal standards, but also industry standards.

Winning Global Customers' Trust
We have won the trust of global customers through the help of our outstanding R&D team, excellent sales marketing, high-quality production, prompt delivery and quick after-sales services. Moreover, all our products have found extensive applications in many famous brands, such as MODEM. Our products are mainly exported to the US, the UK, Southeast Asia and the Middle East. We ensure the excellent performance, stability, reliability, and reasonable price of our products.

Contact us today to begin sourcing.
