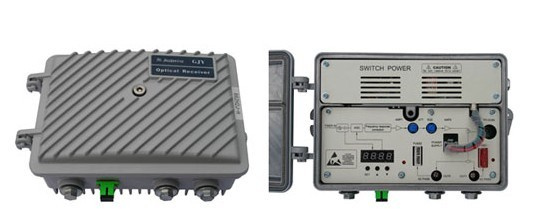

Fttb Optical Node GJY862H2J (F) -H

Fttb Optical Node GJY862H2J (F) -H
Supplier: Sichuan Jiuzhou Electronic Technology Co., Ltd.
Price: Negotiable
Min Order: 1 /Piece
Quantity::
Trade Terms: Any
contact supplier

Product Specifications

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: CATV(Cable Television)Equipment

Product Description

FEATURES
1290~1580nm optical wavelength, -7~+1dBm allowable optical input power.
O/E conversion by Silicon optical receiver module, ensuring good performance.
Optical AGC technology keeps node's RF output constant.
47~862MHz RF working frequency, 2 RF outputs.
RF enlarged by a GaAs MMIC amplifier chip and a GaAs power doubler amplifier module.
Interstage slope control regulated by a 0~20dB variable equalizer.
Interstage gain control regulated by a 0~20dB variable attenuator.
LED numeric display indicates actual optical input power and actual voltage of 5V power supply.
Compact die-casting housing, suitable for wall mounting or strand mounting.
Optical Unit
Specifications
O/E Conversion -
By Silicon optical receiver module.
Wavelength nm
1290~1580
Allowable Optical Input Power dBm
-7~+1
Optical AGC Range dBm
-7~+1
Optical Power Indicator -
LED numeric display
Connector -
SC/APC or FC/APC
Optical Link Performance NOTE (1)

Frequency Response dB
± 1.5
C/N dB
≥ 51
C/CSO dB
≥ 63
C/CTB dB
≥ 63
RF

Amplification -
By one GaAs MMIC amplifier and one GaAs power doubler amplifier module.
Working Frequency MHz
47~862
Number of Outputs -
2 ports
Output Level   NOTE (1) dBμ V
≥ 104,
Test Point dB
-20 ± 2, compared to RF output port.
Output Return Loss dB
≥ 16
Output Impedance ?
75
Interstage Slope Control dB
0~20dB variable equalizer
Interstage Gain Control dB
0~20dB variable attenuator
Power Supply

Power Supply V Remote feed: AC 60V
Local feed: AC 220V
Power Consumption W ≤ 25
AC Power Pass A 10
Mechanical
Mount - Wall mounting or strand mounting.
Dimensions mm 230× 165× 95
Net Weight kg 1.75kgs
We are professional CATV products manufactory, which stablished in 1958, we have 52 years of experience in developing and manufacturing CATV systems. Our sales network covers China, Southeast Asia, the Middle East, Europe, and the US.

Our product range includes:
1. Full DVB-C digital headend equipment/software/STB, and solution.
2. Full Gepon/EOC equipments, and solution.
3.1550/1310nm Optical euquipments.
4. Optical workstations, Nodes and receivers.
5. Optical devices and accessories.
6. RF modulators.
7. Trunk and line amplifiers.
8.5-1, 000MHz taps/splitters.
9. Satellite Dish antennas.
10. C/Ku band LNBs.
11. Coaxial and optical cables.

All operations at our 410, 000 square meter facility are ISO 9001 certified. 5600 employees, 100 R&D staff, and 500 engineers are ready to satisfy your requirements. We have an annual capacity of 2, 000, 000 terminal equipment and 80, 000 network equipment.
