Product Specifications
| Prod Model: |
ONT114B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pass Zone(Nm At 1310 Upstream Measuremen: |
1260~1360 |
| Pass Zone(Nm At 1490 Downstream Measurem: |
1470~1505 |
| Pass Zone(Nm At 1550 Downstream Measurem: |
1535~1570 |
Product Description

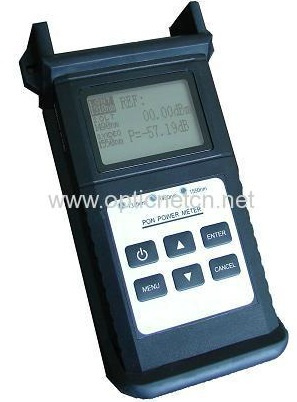

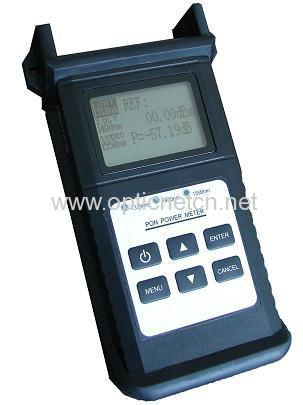

ONT114B PON Optical Power Meter is an upgraded version of ONT114 PON power meter. It aims at the FTTx application and maintenance which not only can be used to test and estimate the PON signals at the same time, but also the normal power measurement and fault identification. It is a useful, essential and ideal tool for the construction and maintenance of the PON projects.
Features1) Providing simultaneous measurement at all three wavelengths (1490nm, 1550nm&1310nm )
2) Used in Burst mode measurement at 1310nm wavelength
3) Large LCD screen with backlight function
4) 10 minutes Auto-off function
5) Six calibration wavelength availablewhen tested as Normal OPM (850, 1300, 1310,1490,1550&1625nm)
6) Added VFL Function for quick and efficient fault identification
7) Data upload via USB cable
8) 1000 storage test records
9) 10 different threshold sets;
10) 3 Colors LED light Green, Yellow or Red represent 3 types of signal conditions Pass, Warn or Fail.
11) Added User self-calibration function in software which used to calibrate the PON module or set the threshold value.
12) Added Factory Default function in software which enable all the customers' setting back to the factory setting.
| 1310 upstream measurement |
| Pass Zone(nm) | 12601360 |
| Isolation@1490/1550(dB) | >40 |
| Measurement Range(dBm) | -40+10 |
| 1490 downstream measurement |
| Pass Zone(nm) | 14701505 |
| Isolation @ 1550nm(dB) | >30 |
| Isolation@ 1310nm(dB) | >40 |
| Measurement Range(dBm) | -40+12 |
| 1550 downstream measurement |
| Pass Zone(nm) | 15351570 |
| Isolation at 1490nm(dB) | >40 |
| Isolation at 1310nm(dB) | >40 |
| Measurement Range(dBm) | -40+25 |
| Measurement Accuracy |
| Connatural uncertainty(dB) | ±0.5 |
| Linearity(dB) | ±0.1 |
| Passing through insertion Loss(dB) | <1.5 |
| General Information of PON module |
| Optical Connector | SC/PC, others can be required on requests |
| Fiber Type | 9/125um |
| Display | LCD:128*64 |
| Measurement Unit | dB/dBm/xW |
| Resolution (dB) | 0.01 |
| Operation Voltage(V) | DC 3.35.5 |
| Power Supply | 3 AA1.5V battery |
| Working Hours without backlight(hr) | 90 |
| Operation Temperature(ºC) | -1060 |
| Storage temperature(ºC) | -2570 |
| Weight(kg) | 500g |
Normal Optical Power Meter Module :
| Measurement Accuracy |
| Connatural uncertainty(dB) | ±0.25 |
| Linearity(dB) | ±0.1 |
| Measurement Range(dBm) | -70+6 or -50~+26 |
| General Information |
| Measurement Unit | dB/dBm |
| Resolution (dB) | 0.01 |
| Calibration Wavelength(nm) | 850,1300,1310,1490,1550,1625 |
| Detector Type | InGaAs |
| Optical Connector | FC/SC/ST Interchangeable |
| Fiber Type | 9/125um |
VFL Module :
| Output Power(mW) | 1mw |
| Wavelength(nm) | 650 |
| Optical Connector | FC/2.5 universal connector |
