Shanghai Fulai Industry Co., Ltd. >> Fulai Machine Metal Shaping Machine Tool Bc60100

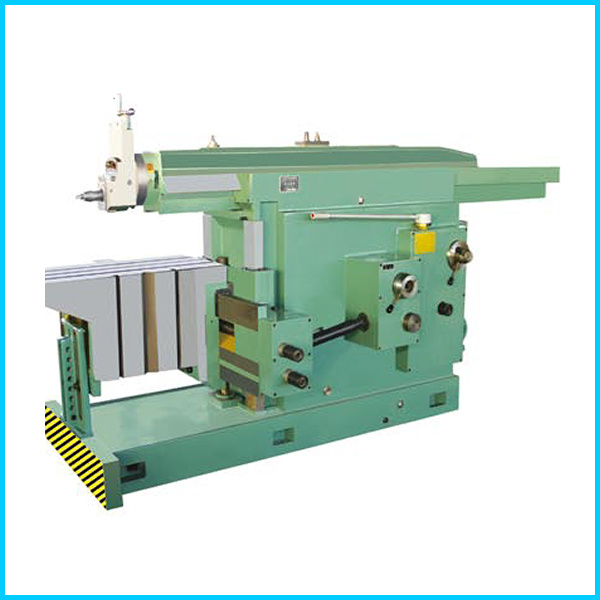

Fulai Machine Metal Shaping Machine Tool Bc60100

Name: Fulai Machine Metal Shaping Machine Tool Bc60100
Brand: china-manufacturer-directory.com
SKU: 705196442
Availability: InStock
Rating: 4.9 (95 reviews)

Supplier:	Shanghai Fulai Industry Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	BC60100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Width Of Central T-Slot Of Table:	22mm
Power Of Motor:	7.5kw
Overall Dimensions(Lxwxh):	3640X1575X1780mm
N.W/G.W:	4870/5150kg
Type:	Shaping Machine
Controlling Mode:	Artificial
Automatic Grade:	Manual
Power Source:	Mechanical Drive
Precision:	High Precision

Product Description

Model		BC60100
Maximum cutting length		1000mm
Maximum table horizontal travel		800mm
Maximum disance from ram bottom to table surface		400mm
Maximum table vertical travel		380mm
Dimensions of table top surface(LXW)		1000×500mm
Travel of tool head		160mm
Swivel of tool head		±60°
Maximum size of tool shank(WxT)		30×45mm
Number of ram strokes per minute		15,20,29,42,58,83 times min
Range of table feed	Horizontal	0.3~3mm
	Vertical	0.15~0.5mm
Rapid feed of table	Horizontal	3mm
	Vertical	0.5mm
Width of center T-slot of table		22mm
Power of motor		7.50kw
Overall dimensions(LxWxH)		3640×1575×1780mm
N.W/G.W		4870/5150kg

Maximum cutting length:1000mm
Maximum table horizontal travel:800mm

Our company is a professional company to manufacture & export machines and accessories. Our company mainly produces Lathe Machine, Milling machine, Drilling machine, Grinding machine, Metal Forming machine, Saw Machine and some machine accessories. Our company has formed a completely machine tools production system.

Our major objectives are providing quality, technology, innovations & services. We devote all of our efforts to provide our customers superior quality & reliable products, innovative design & technology, professional and quick after sales after service.

Our machine is the best quality in China and our prices are competitive. The most of our machine exported to high-end market. Such as Germany, USA, and Japan. Our production agents distributed in North America (USA), Europe (Germany) & Asia (Japan)

We sincerely invite that you can join our group in the near future. Thank you.

If you have any question or requirement, please contact us without hesitation, we are very pleased to provide service for you.
